If you've been struggling with inconsistent print quality, failed prints, or frustrating mechanical issues with your 3D printer, you're not alone.
These challenges often arise from inadequate maintenance and can lead to significant downtime, costly repairs, or even the premature failure of your machine.
But there’s good news: with the right maintenance routine, you can keep your 3D printer running smoothly, delivering high-quality, precise prints consistently. This guide will walk you through everything you need to know about how to maintain a 3D printer, ensuring it operates at its best.
Whether you're new to 3D printing or an experienced user, understanding the essentials of 3D printer maintenance is key to avoiding common pitfalls and enjoying a seamless printing experience. If you're just starting, you might want to check out this comprehensive guide on Resin 3D Printing for Beginners for a solid foundation.
Now, let's learn about 3D printer maintenance.
Why 3D Printer Maintenance is Crucial
Maintaining a 3D printer is not just about keeping it clean—it's about ensuring every component functions optimally. Regular maintenance prevents common issues like clogged nozzles, uneven layers, and even mechanical failures that can halt your printing projects.
Moreover, understanding how to maintain a 3D printer from the outset can extend its lifespan, saving you money in the long run and ensuring your investment continues to produce high-quality results.
In this comprehensive guide, we’ll cover the following:
- FDM Printer Maintenance
- Resin Printer Maintenance
- How to Clean a 3D Printer
- Troubleshooting Common Issues
- What to Do with an Old 3D Printer
- How Long Does Printer Maintenance Take?
Let’s dive into each section to ensure your 3D printing experience remains smooth and trouble-free.
FDM Printer Maintenance: Keeping Your Printer in Top Shape

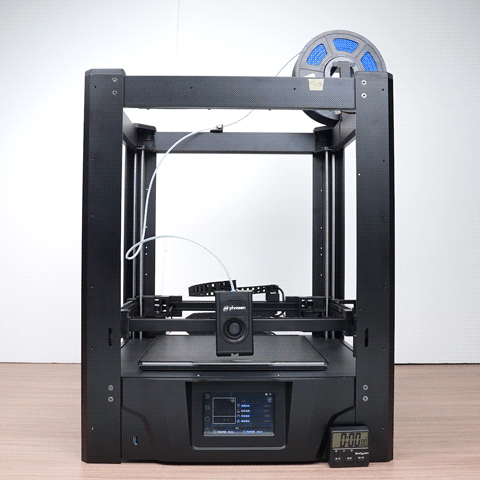

FDM (Fused Deposition Modeling) printers, like the Phrozen Arco, are among the most popular 3D printers due to their versatility and ease of use. However, they require regular upkeep to continue delivering high-quality prints. Here’s how to keep your FDM printer in optimal condition.
How to Clean a 3D Printer (FDM)
Cleaning your FDM printer is the first step in effective maintenance. Dust, filament particles, and debris can accumulate over time, affecting the printer’s performance. Follow these steps:
- Exterior Cleaning: Wipe the exterior of your printer with a soft, dry cloth to remove dust. Avoid using wet wipes or harsh chemicals as they might damage sensitive components.
- Nozzle Maintenance: The nozzle is one of the most critical parts of your FDM printer. To clean it, heat the nozzle and use a brass wire brush to remove any residual filament. For stubborn clogs, consider using a nozzle cleaning needle.
- Build Plate Cleaning: A clean build plate ensures good adhesion and prevents warping. Wipe it down with isopropyl alcohol to remove any adhesive residues or filament particles.
Lubrication of Moving Parts
Proper lubrication ensures smooth operation of the moving parts, reducing wear and tear and prolonging the life of your printer.
- Linear Rods and Rails: Apply a PTFE-based lubricant to the linear rods and rails. This helps the print head move smoothly across the build area.
- Lead Screws: Ensure that lead screws are well-lubricated with grease to avoid friction and noise during the printing process.
Checking and Adjusting Belt Tension
Photo by Megan Lee on Unsplash.
The belts in your FDM printer play a crucial role in ensuring accurate and consistent print layers. Over time, belts can stretch or loosen, leading to print defects like layer shifting or z-banding.
- Belt Tensioning: Regularly check the tension of your belts. They should be tight enough to avoid slippage but not so tight that they cause excessive wear on the pulleys.
- Replacing Worn Belts: If your belts show signs of wear, such as fraying or significant slack, replace them to maintain print quality.
Printing on a Full Build Plate: Risks and Solutions
A full build plate might put excess stress on the FEP film.
Another critical aspect of maintaining print quality and preventing mechanical strain involves understanding how to handle a fully loaded build plate. While it might seem efficient to maximize your printer's capacity, printing on a full build plate can introduce challenges that, if not addressed, may lead to print failures or strain on your machine.
When the build plate is completely filled, the increased surface area can create stronger suction forces between the print and the FEP film. This can cause issues such as prints sticking to the film, warping, or even excessive strain on the Z-axis motor.
The uneven distribution of stress, especially at the edges of the plate, also contributes to a higher chance of print failures if the settings are not properly adjusted.
Solution: To mitigate these risks, it's essential to adjust the lift speed and lift distance. Slower lift speeds allow the resin to flow back under the model, reducing suction forces, while increasing the lift distance can prevent excessive strain on the motor. Additionally, ensure your initial layer exposure times are set correctly to secure proper adhesion across the plate.By making these adjustments, you can confidently print on a full build plate while minimizing the risks of failure and mechanical stress.
Firmware Updates
Updating your printer’s firmware ensures you have the latest features, performance improvements, and bug fixes.
- Regular Checks: Visit the manufacturer’s website regularly to check for firmware updates. If your printer has Wi-Fi capabilities, you might be able to update it directly from the machine’s interface.
- Beta Firmware: Be cautious with beta firmware versions, as they may introduce new features but also come with unresolved issues.
Resin Printer Maintenance: Precision and Care
Resin printers, known for their ability to produce highly detailed and smooth prints, require a different maintenance approach than FDM printers. The precision of resin printing makes careful maintenance even more crucial.
How to Clean a 3D Printer (Resin)
Cleaning a resin printer involves more detailed steps due to the nature of the materials used.
- Resin Vat Cleaning: After each print, carefully empty and clean the resin vat. Use a soft plastic scraper to remove any cured resin stuck to the bottom. Then, clean the vat with isopropyl alcohol and a soft cloth. To streamline this process, consider investing in a Phrozen Wash & Cure Kit, which efficiently cleans and cures your prints in one go, saving time and effort.

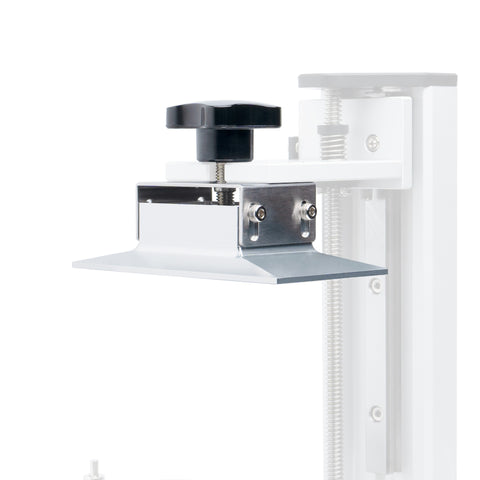

- Build Plate Cleaning: Wipe the build plate with isopropyl alcohol to remove any residual resin. Ensure it’s dry before starting the next print.
- Optical Components: The UV screen and mirrors are critical for accurate curing. Clean them with a microfiber cloth and isopropyl alcohol to ensure they are free of dust and fingerprints.
Managing and Storing Resin
Proper resin management is essential for consistent print quality.
- Proper Storage: Store your resin in a cool, dark place. Exposure to light can cause the resin to cure prematurely, ruining it.
- Resin Filtering: After each print, use a fine mesh filter to remove any cured particles from the resin before returning it to the bottle. This ensures that your next print will be free of defects caused by floating debris.
UV Light Source Maintenance
The UV light source in your resin printer is what cures the resin to form solid layers.
- Cleaning the Light Source: Regularly clean the light source with a microfiber cloth to remove any dust that could block the light and affect the curing process. To enhance your curing process, the Phrozen Wash & Cure Kit is equipped with 405nm UV lights that ensure even and effective curing, eliminating the risk of soft, sticky, or unevenly cured models.
- Check for Degradation: Over time, UV bulbs or LEDs can degrade, leading to weaker light output. If your prints start showing incomplete curing, it might be time to replace the light source.
How to Clean 3D Printer Parts: FDM and Resin
Cleaning the individual parts of your 3D printer is crucial for maintaining print quality and extending the life of your machine. Here’s a detailed guide on how to clean the most critical parts.
Cleaning the Nozzle (FDM)
-
Heat and Brush: Heat the nozzle to the extrusion temperature of the filament currently inside and use a brass wire brush to remove the residue.
-
Cold Pull: For deeper cleaning, perform a cold pull. Insert a piece of nylon filament into the nozzle at a lower temperature, then pull it out, bringing the debris with it.
Cleaning the Resin Vat and Build Plate (Resin)
-
Resin Vat: Pour any unused resin back into its container, then wipe the vat with isopropyl alcohol. Use a plastic scraper to gently remove any stuck resin.
-
Build Plate: Scrape off any residual resin, then clean thoroughly with isopropyl alcohol. The Phrozen Wash & Cure Kit simplifies this process, allowing you to clean and cure large models efficiently.
Cleaning Fans and Filters
-
FDM Printers: Dust off the cooling fans and power supply vents to prevent overheating.
-
Resin Printers: If your printer has air filters, consider using a Phrozen Air Purifier to reduce resin odors and maintain a clean printing environment.
Troubleshooting Common 3D Printer Issues
Even with regular maintenance, problems can arise. Here’s how to troubleshoot some of the most common issues you might encounter with your 3D printer.
Printer Won’t Turn On
-
Check Power Connections: Ensure that the power cord is securely plugged into both the printer and the wall outlet.
-
Inspect Fuses: Some printers have internal fuses that can blow. Check and replace them if necessary.
Uneven Layers
- Recalibrate the Build Plate: If your printer is producing uneven layers, the first step is to recalibrate the build plate. Ensure it is perfectly level before starting your next print.
- Check for Obstructions: Make sure there are no obstructions or dust on the build plate or nozzle that could affect the first layer.
Print Defects (Resin)
- Adjust Print Settings: If your resin prints have defects such as cracks or incomplete curing, adjust the printing temperature and exposure times.
- Ensure Proper Resin Usage: Always use the correct resin for your project and follow the manufacturer’s guidelines for best results. For more details on avoiding common mistakes, check out this guide on 3D printing mistakes to avoid.
Noisy Operation
- Tighten Loose Components: If your printer is making unusual noises, check for loose screws or bolts and tighten them. Lubricate any moving parts that seem to be causing friction.
- Check Belt Tension: Noise can also result from improperly tensioned belts. Recheck and adjust as necessary.
What to Do with an Old 3D Printer
As technology advances, you might find yourself upgrading to a new printer. Here’s what you can do with your old 3D printer:
- Repurpose: Convert it into a specialized machine for printing with a different material or for specific projects that don’t require the latest technology.
- Donate or Sell: Many educational institutions, libraries, or hobbyists would appreciate a used 3D printer. This can be a great way to give back to the community.
- Recycle: If your printer is beyond repair, make sure to recycle it properly. Electronics recycling programs can handle old printers and keep them out of landfills. If you're unsure about safety considerations when handling old or malfunctioning printers, this 3D printing safety guide can provide valuable insights.
How Long Does Printer Maintenance Take?
The time required for printer maintenance varies depending on the type of printer and the extent of the maintenance. Here’s a breakdown:
- Basic Cleaning and Lubrication (FDM): Typically takes about 30 minutes to an hour. This includes cleaning the exterior, nozzle, and build plate, and lubricating the moving parts.
- Resin Printer Maintenance: Cleaning the resin vat, build plate, and optical components can take up to an hour, especially if you’re filtering resin and checking UV light sources.
- Deep Cleaning and Component Checks: For a more thorough maintenance session, including checking belt tension, updating firmware, and inspecting all moving parts, expect to spend 1-2 hours.
Conclusion: Keep Your 3D Printer Running Smoothly
Understanding how to maintain a 3D printer is crucial for ensuring consistent, high-quality prints and extending the life of your machine. Whether you’re using an FDM or resin printer, regular maintenance should be part of your routine. By following the tips outlined in this guide, you can avoid common pitfalls, troubleshoot issues quickly, and enjoy a seamless 3D printing experience.
Remember, a little effort in maintaining your 3D printer today can save you a lot of time, money, and frustration in the future. So keep your machine clean, well-lubricated, and up-to-date with the latest firmware, and you’ll be rewarded with reliable performance and exceptional print quality.
FAQ:
How often should I perform maintenance on my 3D printer?
Maintenance frequency depends on how often you use your 3D printer. For regular users, basic maintenance like cleaning the build plate and nozzle should be done after every few prints. More in-depth maintenance, such as lubricating moving parts and checking belt tension, can be done monthly.
What’s the best way to clean a resin 3D printer?
To clean a resin 3D printer, carefully empty and clean the resin vat after each print using isopropyl alcohol and a soft cloth. Clean the build plate and any optical components like the UV screen to ensure they are dust-free. Using a Phrozen Wash & Cure Kit can streamline the cleaning and curing process, making it more efficient.
How long does printer maintenance take?
Basic maintenance tasks like cleaning the exterior and nozzle usually take 30 minutes to an hour. More thorough maintenance, such as lubricating parts and updating firmware, can take 1-2 hours depending on the complexity of the task and the type of printer.
What should I do with my old 3D printer?
You can repurpose your old 3D printer for specific projects, donate it to educational institutions or hobbyists, or recycle it through an electronics recycling program. For safety considerations and handling, refer to this 3D printing safety guide.
What are the signs that my 3D printer needs maintenance?
Common signs include inconsistent print quality, unusual noises, print defects like warping or uneven layers, and the printer not turning on. Regular maintenance can help prevent these issues, ensuring your printer continues to operate smoothly.
