Resin Profile
Sonic Mighty 8K
1. These resin parameters have been determined with a temperature of 25°C and relative humidity of 75%. A test print was performed in a well-ventilated indoor space.
2. We used the Phrozen_XP_finder.stl (Download here) test print file to determine these resin parameters. Please use this STL file to test out the resin parameters before you begin printing. To learn more about how to dial in any resin with an XP_finder.
3. Phrozen Sonic Mighty 8K can only read CTB files by Chitubox or Lychee. You may also use any other slicing software if you prefer to do so.
4. If your prints fail to stick onto the building plate, try increasing the bottom layer exposure time or check out our Help Center.
Brands
| Basic Info | Layer Height(mm) | 0.05 |
|---|---|---|
| Retract Speed(mm/min) | 150 | |
| Bottom Layers | Layer Count | 6 |
| Exposure Time(s) | 25-35 | |
| Lifting Distance(mm) | 6 | |
| Lifting Speed(mm/min) | 60 | |
| Light-off Delay(s) | 10 | |
| Transition Layers | Layer Count | 6 |
| Normal Layers | Exposure Time(s) | 2.0-2.5 |
| Lifting Distance(mm) | 6 | |
| Lifting Speed(mm/min) | 60 | |
| Light-off Delay(s) | 10 |
| Basic Info | Layer Height(mm) | 0.05 |
|---|---|---|
| Retract Speed(mm/min) | 150 | |
| Delay(ms) | 6 | |
| Burn Layers | Layers(Numbers) | 25-35 |
| Cure Time(ms) | 6 | |
| Lift Height(mm) | 60 | |
| Up Speed(mm/min) | 10 | |
| Normal Layers | Cure Time(ms) | 6 |
| Lift Height(mm) | 2.0-2.5 | |
| Up Speed(mm/min) | 6 |
| Basic Info | Layer Height(mm) | 0.05 |
|---|---|---|
| Retract Speed(mm/min) | 150 | |
| Bottom Layers | Layer Count | 6 |
| Exposure Time(s) | 25-35 | |
| Lifting Distance(mm) | 6 | |
| Lifting Speed(mm/min) | 60 | |
| Light-off Delay(s) | 10 | |
| Normal Layers | Exposure Time(s) | 2.0-2.5 |
| Lifting Distance(mm) | 6 | |
| Lifting Speed(mm/min) | 60 | |
| Light-off Delay(s) | 10 |
| Basic Info | Layer Height(mm) | 0.15 |
|---|---|---|
| Retract Speed(mm/min) | 150 | |
| Bottom Layers | Layer Count | 6 |
| Exposure Time(s) | 35 ± 5 | |
| Lifting Distance(mm) | 6 | |
| Lifting Speed(mm/min) | 60 | |
| Transition Layers | Layer Count | 6 |
| Normal Layers | Exposure Time(s) | 11.5 ± 0.5 |
| Lifting Distance(mm) | 6 | |
| Lifting Speed(mm/min) | 60 | |
| Waiting Mode During Printing | Mode | Resting time |
| Rest Time After Retract(s) | 4 |
| Basic Info | Layer Height(mm) | 0.05 |
|---|---|---|
| Bottom Layers | Layer Count | 6 |
| Exposure Time(s) | 25-35 | |
| Lifting Distance(mm) | 6 | |
| Lifting Speed(mm/min) | 60 | |
| Retract Distance(mm) | 6 | |
| Retract Speed(mm/min) | 60 | |
| Transition Layers | Layer Count | 6 |
| Normal Layers | Exposure Time(s) | 2.0-2.5 |
| Lifting Distance(mm) | 6 | |
| Lifting Speed(mm/min) | 60 | |
| Retract Distance(mm) | 6 | |
| Retract Speed(mm/min) | 60 | |
| Waiting Mode During Printing | Mode | Resting time |
| Rest Time After Retract(s) | 3 |
| Basic Info | Layer Height(mm) | 0.05 |
|---|---|---|
| Retract Speed(mm/min) | 150 | |
| Bottom Layers | Layers(Numbers) | 25-35 |
| Cure Time(s) | 6 | |
| Lift Height(mm) | 60 | |
| Lift Speed(mm/min) | 10 | |
| Lift-off Delay(s) | 10 | |
| Normal Layers | Cure Time(s) | 6 |
| Lift Height(mm) | 2.0-2.5 | |
| Lift Speed(mm/min) | 6 |
Phrozen Resins

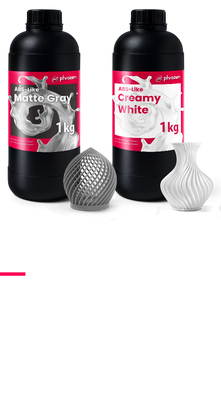

1. ABS-like Resin - Gray / White

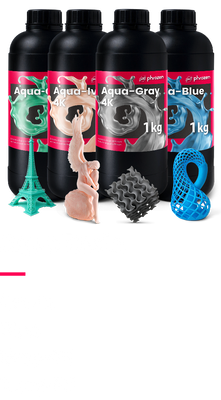

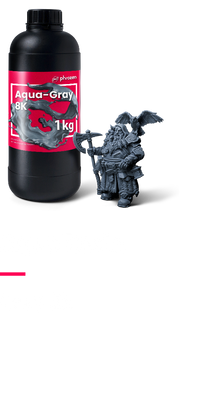

2. Aqua Resin - Green / Blue / Gray-4k/ Ivory-4k

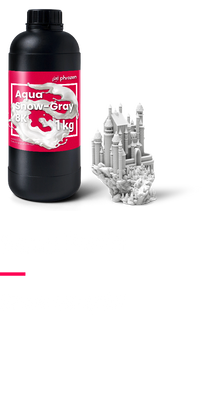

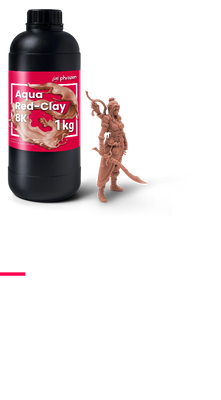

3. Aqua Resin - Gray-8k / Red-Clay 8k / Vanilla 8K / Snow-Gray 8K
4. Hyperfine Resin - Graphite / Blue / Green / Red / Purple
5. RPG - Gray / Smoke / Beige

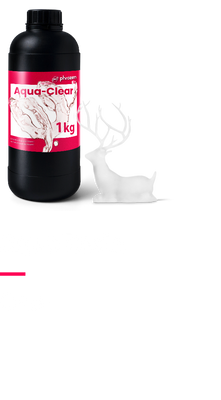

6. Aqua Resin - Clear
7. Aqua Clear Plus

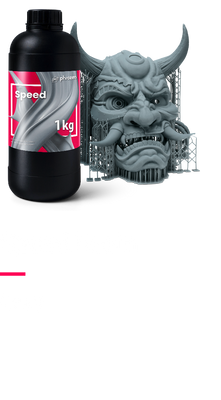

8. Speed resin - Gray

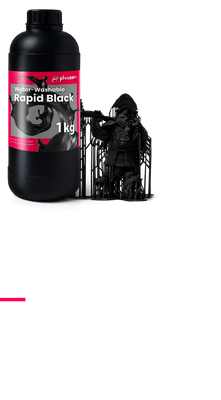

9. Water-Washable Resin - Rapid Black

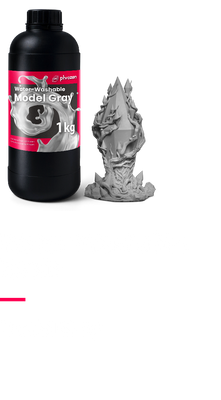

10. Water-Washable Resin - Model Gray
11. Phrozen Xmas Special Resin - Snowman White、Santa Red、Elf Green
12. Neon Resin- Peach / Lime / Pumpkin / Lemon
13. Aqua Macaroon Resin-Purple / Yellow / Green
14. Aqua Mist Gray
15. Aqua Oat White

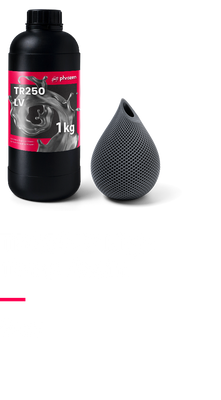

16. TR250LV High Temp Resin - Gray

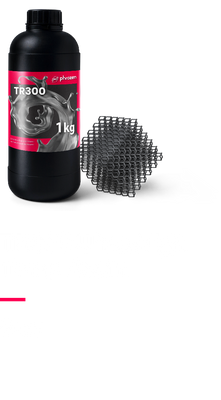

17. TR300 Ultra-High Temp Resin
18. Flame Retardant - FR940
19. Tough: ABS-like+

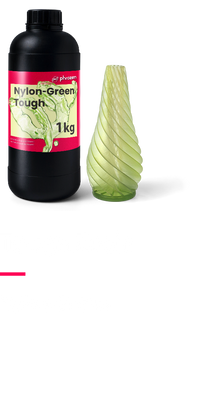

20. Nylon-Green Tough Resin

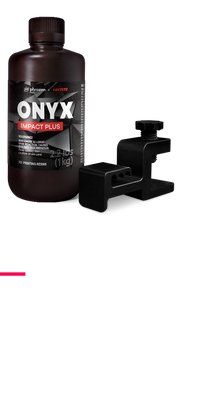

21. Onyx Impact Plus- High Detailed

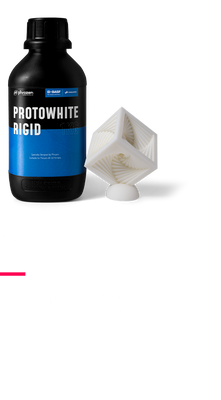

22. Protowhite

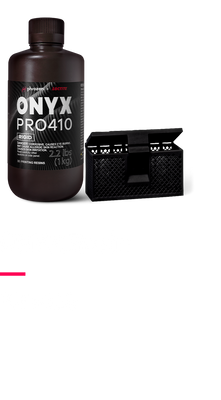

23. ONYX PRO 410
24. Ceramic White
25. Rigid PC/GF-like

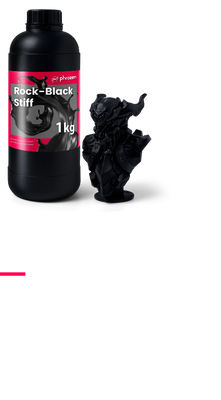

26. Rock-Black Stiff Resin

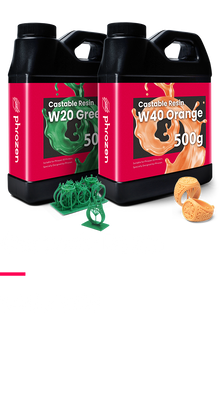

27. Castable Resin W20/W40

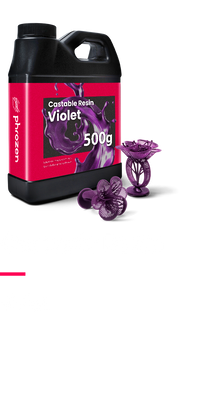

28. Castable Resin Violet
29. EL400
30. Speed Plus-Black
31. Water Washable Tough - White / Gray
32. Tough 100E - Green
33. Tough 100E - Black
34. Ceramic Pro
| Basic Info | Layer Height(mm) | 0.05 |
|---|---|---|
| Retract Speed(mm/min) | 150 | |
| Bottom Layers | Layer Count | 6 |
| Exposure Time(s) | 35 ± 5 | |
| Lifting Distance(mm) | 8 | |
| Lifting Speed(mm/min) | 60 | |
| Transition Layers | Layer Count | 6 |
| Normal Layers | Exposure Time(s) | 2.3 ± 0.3 |
| Lifting Distance(mm) | 8 | |
| Lifting Speed(mm/min) | 60 | |
| Waiting Mode During Printing | Mode | Resting time |
| Rest Time After Retract(s) | 2 |
| Basic Info | Layer Height(mm) | 0.05 |
|---|---|---|
| Retract Speed(mm/min) | 150 | |
| Bottom Layers | Layer Count | 6 |
| Exposure Time(s) | 35 ± 5 | |
| Lifting Distance(mm) | 8 | |
| Lifting Speed(mm/min) | 60 | |
| Transition Layers | Layer Count | 6 |
| Normal Layers | Exposure Time(s) | 2.3 ± 0.3 |
| Lifting Distance(mm) | 8 | |
| Lifting Speed(mm/min) | 60 | |
| Waiting Mode During Printing | Mode | Resting time |
| Rest Time After Retract(s) | 2 |
| Basic Info | Layer Height(mm) | 0.05 |
|---|---|---|
| Retract Speed(mm/min) | 150 | |
| Bottom Layers | Layer Count | 6 |
| Exposure Time(s) | 32.5 ± 2.5 | |
| Lifting Distance(mm) | 8 | |
| Lifting Speed(mm/min) | 60 | |
| Transition Layers | Layer Count | 6 |
| Normal Layers | Exposure Time(s) | 2.2 ± 0.4 |
| Lifting Distance(mm) | 8 | |
| Lifting Speed(mm/min) | 60 | |
| Waiting Mode During Printing | Mode | Resting time |
| Rest Time After Retract(s) | 3 ± 1 |
| Basic Info | Layer Height(mm) | 0.03 |
|---|---|---|
| Retract Speed(mm/min) | 150 | |
| Bottom Layers | Layer Count | 6 |
| Exposure Time(s) | 30 ± 5 | |
| Lifting Distance(mm) | 8 | |
| Lifting Speed(mm/min) | 60 | |
| Transition Layers | Layer Count | 6 |
| Normal Layers | Exposure Time(s) | 2.2 ± 0.4 |
| Lifting Distance(mm) | 8 | |
| Lifting Speed(mm/min) | 60 | |
| Waiting Mode During Printing | Mode | Resting time |
| Rest Time After Retract(s) | 7.5 ± 2.5 |
| Basic Info | Layer Height(mm) | 0.05 |
|---|---|---|
| Retract Speed(mm/min) | 150 | |
| Bottom Layers | Layer Count | 6 |
| Exposure Time(s) | 30 ± 5 | |
| Lifting Distance(mm) | 8 | |
| Lifting Speed(mm/min) | 60 | |
| Transition Layers | Layer Count | 6 |
| Normal Layers | Exposure Time(s) | 4 ± 0.5 |
| Lifting Distance(mm) | 8 | |
| Lifting Speed(mm/min) | 60 | |
| Waiting Mode During Printing | Mode | Resting time |
| Rest Time After Retract(s) | 4 |
| Basic Info | Layer Height(mm) | 0.05 |
|---|---|---|
| Retract Speed(mm/min) | 150 | |
| Bottom Layers | Layer Count | 6 |
| Exposure Time(s) | 32.5 ± 2.5 | |
| Lifting Distance(mm) | 8 | |
| Lifting Speed(mm/min) | 60 | |
| Transition Layers | Layer Count | 6 |
| Normal Layers | Exposure Time(s) | 10.3 ± 0.3 |
| Lifting Distance(mm) | 8 | |
| Lifting Speed(mm/min) | 60 | |
| Waiting Mode During Printing | Mode | Resting time |
| Rest Time After Retract(s) | 3 |
| Basic Info | Layer Height(mm) | 0.05 |
|---|---|---|
| Retract Speed(mm/min) | 150 | |
| Bottom Layers | Layer Count | 6 |
| Exposure Time(s) | 30 ± 5 | |
| Lifting Distance(mm) | 9 ± 1 | |
| Lifting Speed(mm/min) | 45 | |
| Transition Layers | Layer Count | 6 |
| Normal Layers | Exposure Time(s) | 11 ± 1 |
| Lifting Distance(mm) | 9 ± 1 | |
| Lifting Speed(mm/min) | 45 | |
| Waiting Mode During Printing | Mode | Resting time |
| Rest Time After Retract(s) | 4 ± 1 |
| Basic Info | Layer Height(mm) | 0.15 |
|---|---|---|
| Retract Speed(mm/min) | 150 | |
| Bottom Layers | Layer Count | 6 |
| Exposure Time(s) | 25 ± 5 | |
| Lifting Distance(mm) | 3 | |
| Lifting Speed(mm/min) | 100 | |
| Transition Layers | Layer Count | 6 |
| Normal Layers | Exposure Time(s) | 3.5 ± 0.5 |
| Lifting Distance(mm) | 3 | |
| Lifting Speed(mm/min) | 100 | |
| Waiting Mode During Printing | Mode | Resting time |
| Rest Time After Retract(s) | 2 ± 1 |
| Basic Info | Layer Height(mm) | 0.05 |
|---|---|---|
| Retract Speed(mm/min) | 150 | |
| Bottom Layers | Layer Count | 10 |
| Exposure Time(s) | 35 ± 5 | |
| Lifting Distance(mm) | 8 | |
| Lifting Speed(mm/min) | 60 | |
| Transition Layers | Layer Count | 6 |
| Normal Layers | Exposure Time(s) | 3.5 ± 0.5 |
| Lifting Distance(mm) | 8 | |
| Lifting Speed(mm/min) | 60 | |
| Waiting Mode During Printing | Mode | Resting time |
| Rest Time After Retract(s) | 6 |
| Basic Info | Layer Height(mm) | 0.05 |
|---|---|---|
| Retract Speed(mm/min) | 150 | |
| Bottom Layers | Layer Count | 10 |
| Exposure Time(s) | 35 ± 5 | |
| Lifting Distance(mm) | 8 | |
| Lifting Speed(mm/min) | 60 | |
| Transition Layers | Layer Count | 6 |
| Normal Layers | Exposure Time(s) | 3.5 ± 0.5 |
| Lifting Distance(mm) | 8 | |
| Lifting Speed(mm/min) | 60 | |
| Waiting Mode During Printing | Mode | Resting time |
| Rest Time After Retract(s) | 6 |
| Basic Info | Layer Height(mm) | 0.05 |
|---|---|---|
| Retract Speed(mm/min) | 150 | |
| Bottom Layers | Layer Count | 6 |
| Exposure Time(s) | 25 ± 5 | |
| Lifting Distance(mm) | 8 | |
| Lifting Speed(mm/min) | 60 | |
| Transition Layers | Layer Count | 6 |
| Normal Layers | Exposure Time(s) | 9 ± 1 |
| Lifting Distance(mm) | 8 | |
| Lifting Speed(mm/min) | 60 | |
| Waiting Mode During Printing | Mode | Resting time |
| Rest Time After Retract(s) | 3 |
| Basic Info | Layer Height(mm) | 0.05 |
|---|---|---|
| Retract Speed(mm/min) | 150 | |
| Bottom Layers | Layer Count | 6 |
| Exposure Time(s) | 22.5 ± 2.5 | |
| Lifting Distance(mm) | 8 | |
| Lifting Speed(mm/min) | 60 | |
| Transition Layers | Layer Count | 6 |
| Normal Layers | Exposure Time(s) | 3 ± 0.5 |
| Lifting Distance(mm) | 8 | |
| Lifting Speed(mm/min) | 60 | |
| Waiting Mode During Printing | Mode | Resting time |
| Rest Time After Retract(s) | 3 |
| Basic Info | Layer Height(mm) | 0.05 |
|---|---|---|
| Retract Speed(mm/min) | 150 | |
| Bottom Layers | Layer Count | 6 |
| Exposure Time(s) | 30 ± 5 | |
| Lifting Distance(mm) | 6 | |
| Lifting Speed(mm/min) | 60 | |
| Transition Layers | Layer Count | 6 |
| Normal Layers | Exposure Time(s) | 4 ± 0.5 |
| Lifting Distance(mm) | 8 | |
| Lifting Speed(mm/min) | 60 | |
| Waiting Mode During Printing | Mode | Resting time |
| Rest Time After Retract(s) | 3 |
| Basic Info | Layer Height(mm) | 0.05 |
|---|---|---|
| Retract Speed(mm/min) | 150 | |
| Bottom Layers | Layer Count | 6 |
| Exposure Time(s) | 35 ± 5 | |
| Lifting Distance(mm) | 8 | |
| Lifting Speed(mm/min) | 60 | |
| Transition Layers | Layer Count | 6 |
| Normal Layers | Exposure Time(s) | 3 ± 0.5 |
| Lifting Distance(mm) | 8 | |
| Lifting Speed(mm/min) | 60 | |
| Waiting Mode During Printing | Mode | Resting time |
| Rest Time After Retract(s) | 3 |
| Basic Info | Layer Height(mm) | 0.05 |
|---|---|---|
| Retract Speed(mm/min) | 150 | |
| Bottom Layers | Layer Count | 6 |
| Exposure Time(s) | 35 ± 5 | |
| Lifting Distance(mm) | 8 | |
| Lifting Speed(mm/min) | 60 | |
| Transition Layers | Layer Count | 6 |
| Normal Layers | Exposure Time(s) | 5 ± 0.5 |
| Lifting Distance(mm) | 8 | |
| Lifting Speed(mm/min) | 60 | |
| Waiting Mode During Printing | Mode | Resting time |
| Rest Time After Retract(s) | 3 |
| Basic Info | Layer Height(mm) | 0.05 |
|---|---|---|
| Retract Speed(mm/min) | 150 | |
| Bottom Layers | Layer Count | 6 |
| Exposure Time(s) | 35 ± 5 | |
| Lifting Distance(mm) | 8 | |
| Lifting Speed(mm/min) | 60 | |
| Transition Layers | Layer Count | 6 |
| Normal Layers | Exposure Time(s) | 2.3 ± 0.3 |
| Lifting Distance(mm) | 8 | |
| Lifting Speed(mm/min) | 60 | |
| Waiting Mode During Printing | Mode | Resting time |
| Rest Time After Retract(s) | 2 |
| Basic Info | Layer Height(mm) | 0.05 |
|---|---|---|
| Retract Speed(mm/min) | 150 | |
| Bottom Layers | Layer Count | 6 |
| Exposure Time(s) | 20 ± 5 | |
| Lifting Distance(mm) | 8 | |
| Lifting Speed(mm/min) | 60 | |
| Transition Layers | Layer Count | 6 |
| Normal Layers | Exposure Time(s) | 2.2 ± 0.4 |
| Lifting Distance(mm) | 8 | |
| Lifting Speed(mm/min) | 60 | |
| Waiting Mode During Printing | Mode | Resting time |
| Rest Time After Retract(s) | 2 |
| Basic Info | Layer Height(mm) | 0.05 |
|---|---|---|
| Retract Speed(mm/min) | 150 | |
| Bottom Layers | Layer Count | 6 |
| Exposure Time(s) | 35 ± 5 | |
| Lifting Distance(mm) | 8 | |
| Lifting Speed(mm/min) | 60 | |
| Transition Layers | Layer Count | 6 |
| Normal Layers | Exposure Time(s) | 2.8 ± 0.3 |
| Lifting Distance(mm) | 8 | |
| Lifting Speed(mm/min) | 60 | |
| Waiting Mode During Printing | Mode | Resting time |
| Rest Time After Retract(s) | 3 |
| Basic Info | Layer Height(mm) | 0.05 |
|---|---|---|
| Retract Speed(mm/min) | 150 | |
| Bottom Layers | Layer Count | 6 |
| Exposure Time(s) | 12.5 ± 2.5 | |
| Lifting Distance(mm) | 8 | |
| Lifting Speed(mm/min) | 60 | |
| Transition Layers | Layer Count | 6 |
| Normal Layers | Exposure Time(s) | 5 ± 0.5 |
| Lifting Distance(mm) | 8 | |
| Lifting Speed(mm/min) | 60 | |
| Waiting Mode During Printing | Mode | Resting time |
| Rest Time After Retract(s) | 5 |
| Basic Info | Layer Height(mm) | 0.05 |
|---|---|---|
| Retract Speed(mm/min) | 150 | |
| Bottom Layers | Layer Count | 6 |
| Exposure Time(s) | 35 ± 5 | |
| Lifting Distance(mm) | 8 | |
| Lifting Speed(mm/min) | 60 | |
| Transition Layers | Layer Count | 6 |
| Normal Layers | Exposure Time(s) | 3 ± 0.5 |
| Lifting Distance(mm) | 8 | |
| Lifting Speed(mm/min) | 60 | |
| Waiting Mode During Printing | Mode | Resting time |
| Rest Time After Retract(s) | 4 |
| Basic Info | Layer Height(mm) | 0.05 |
|---|---|---|
| Retract Speed(mm/min) | 150 | |
| Bottom Layers | Layer Count | 6 |
| Exposure Time(s) | 32.5 ± 2.5 | |
| Lifting Distance(mm) | 8 | |
| Lifting Speed(mm/min) | 52.5 ± 7.5 | |
| Transition Layers | Layer Count | 6 |
| Normal Layers | Exposure Time(s) | 27.5 ± 2.5 |
| Lifting Distance(mm) | 8 | |
| Lifting Speed(mm/min) | 52.5 ± 7.5 | |
| Waiting Mode During Printing | Mode | Resting time |
| Rest Time After Retract(s) | 9 ± 1 |
| Basic Info | Layer Height(mm) | 0.05 |
|---|---|---|
| Retract Speed(mm/min) | 150 | |
| Bottom Layers | Layer Count | 6 |
| Exposure Time(s) | 37.5 ± 2.5 | |
| Lifting Distance(mm) | 8 | |
| Lifting Speed(mm/min) | 60 | |
| Transition Layers | Layer Count | 6 |
| Normal Layers | Exposure Time(s) | 8 ± 1 |
| Lifting Distance(mm) | 8 | |
| Lifting Speed(mm/min) | 60 | |
| Waiting Mode During Printing | Mode | Resting time |
| Rest Time After Retract(s) | 4 |
| Basic Info | Layer Height(mm) | 0.05 |
|---|---|---|
| Retract Speed(mm/min) | 150 | |
| Bottom Layers | Layer Count | 6 |
| Exposure Time(s) | 37.5 ± 2.5 | |
| Lifting Distance(mm) | 8 | |
| Lifting Speed(mm/min) | 60 | |
| Transition Layers | Layer Count | 6 |
| Normal Layers | Exposure Time(s) | 9 ± 2 |
| Lifting Distance(mm) | 8 | |
| Lifting Speed(mm/min) | 60 | |
| Waiting Mode During Printing | Mode | Resting time |
| Rest Time After Retract(s) | 6 |
| Basic Info | Layer Height(mm) | 0.05 |
|---|---|---|
| Retract Speed(mm/min) | 150 | |
| Bottom Layers | Layer Count | 6 |
| Exposure Time(s) | 32.5 ± 2.5 | |
| Lifting Distance(mm) | 8 | |
| Lifting Speed(mm/min) | 60 | |
| Transition Layers | Layer Count | 6 |
| Normal Layers | Exposure Time(s) | 2.8 ± 0.3 |
| Lifting Distance(mm) | 8 | |
| Lifting Speed(mm/min) | 60 | |
| Waiting Mode During Printing | Mode | Resting time |
| Rest Time After Retract(s) | 3 |
| Basic Info | Layer Height(mm) | 0.05 |
|---|---|---|
| Retract Speed(mm/min) | 150 | |
| Bottom Layers | Layer Count | 6 |
| Exposure Time(s) | 12.5 ± 2.5 | |
| Lifting Distance(mm) | 8 | |
| Lifting Speed(mm/min) | 60 | |
| Transition Layers | Layer Count | 6 |
| Normal Layers | Exposure Time(s) | 17.5 ± 2.5 |
| Lifting Distance(mm) | 8 | |
| Lifting Speed(mm/min) | 60 | |
| Waiting Mode During Printing | Mode | Resting time |
| Rest Time After Retract(s) | 2 |
| Basic Info | Layer Height(mm) | 0.05 |
|---|---|---|
| Retract Speed(mm/min) | 150 | |
| Bottom Layers | Layer Count | 6 |
| Exposure Time(s) | 35 ± 5 | |
| Lifting Distance(mm) | 8 | |
| Lifting Speed(mm/min) | 60 | |
| Transition Layers | Layer Count | 6 |
| Normal Layers | Exposure Time(s) | 4.8 ± 0.3 |
| Lifting Distance(mm) | 8 | |
| Lifting Speed(mm/min) | 60 | |
| Waiting Mode During Printing | Mode | Resting time |
| Rest Time After Retract(s) | 2 |
| Basic Info | Layer Height(mm) | 0.05 |
|---|---|---|
| Retract Speed(mm/min) | 150 | |
| Bottom Layers | Layer Count | 6 |
| Exposure Time(s) | 35 ± 5 | |
| Lifting Distance(mm) | 8 | |
| Lifting Speed(mm/min) | 60 | |
| Transition Layers | Layer Count | 6 |
| Normal Layers | Exposure Time(s) | 7.3 ± 1.7 |
| Lifting Distance(mm) | 8 | |
| Lifting Speed(mm/min) | 60 | |
| Waiting Mode During Printing | Mode | Resting time |
| Rest Time After Retract(s) | 3 |
| Basic Info | Layer Height(mm) | 0.05 |
|---|---|---|
| Retract Speed(mm/min) | 150 | |
| Bottom Layers | Layer Count | 6 |
| Exposure Time(s) | 45 ± 5 | |
| Lifting Distance(mm) | 8 | |
| Lifting Speed(mm/min) | 60 | |
| Transition Layers | Layer Count | 6 |
| Normal Layers | Exposure Time(s) | 4.8 ± 0.2 |
| Lifting Distance(mm) | 8 | |
| Lifting Speed(mm/min) | 60 | |
| Waiting Mode During Printing | Mode | Resting time |
| Rest Time After Retract(s) | 6 |
| Basic Info | Layer Height(mm) | 0.1 |
|---|---|---|
| Retract Speed(mm/min) | 130 | |
| Bottom Layers | Layer Count | 6 |
| Exposure Time(s) | 27.5 ± 2.5 | |
| Lifting Distance(mm) | 10 | |
| Lifting Speed(mm/min) | 45 | |
| Transition Layers | Layer Count | 6 |
| Normal Layers | Exposure Time(s) | 12.5 ± 2.5 |
| Lifting Distance(mm) | 10 | |
| Lifting Speed(mm/min) | 45 | |
| Waiting Mode During Printing | Mode | Resting time |
| Rest Time After Retract(s) | 11.5 ± 3.5 |
| Basic Info | Layer Height(mm) | 0.05 |
|---|---|---|
| Retract Speed(mm/min) | 150 | |
| Bottom Layers | Layer Count | 6 |
| Exposure Time(s) | 7.5 ± 2.5 | |
| Lifting Distance(mm) | 8 | |
| Lifting Speed(mm/min) | 60 | |
| Transition Layers | Layer Count | 6 |
| Normal Layers | Exposure Time(s) | 2 ± 0.5 |
| Lifting Distance(mm) | 8 | |
| Lifting Speed(mm/min) | 60 | |
| Waiting Mode During Printing | Mode | Resting time |
| Rest Time After Retract(s) | 2 ± 1 |
| Basic Info | Layer Height(mm) | 0.05 |
|---|---|---|
| Retract Speed(mm/min) | 150 | |
| Bottom Layers | Layer Count | 6 |
| Exposure Time(s) | 30 ± 5 | |
| Lifting Distance(mm) | 8 | |
| Lifting Speed(mm/min) | 60 | |
| Transition Layers | Layer Count | 6 |
| Normal Layers | Exposure Time(s) | 4.5 ± 0.5 |
| Lifting Distance(mm) | 8 | |
| Lifting Speed(mm/min) | 60 | |
| Waiting Mode During Printing | Mode | Resting time |
| Rest Time After Retract(s) | 5 ± 1 |
| Basic Info | Layer Height(mm) | 0.05 |
|---|---|---|
| Retract Speed(mm/min) | 150 | |
| Bottom Layers | Layer Count | 6 |
| Exposure Time(s) | 35 ± 5 | |
| Lifting Distance(mm) | 10 | |
| Lifting Speed(mm/min) | 60 | |
| Transition Layers | Layer Count | 6 |
| Normal Layers | Exposure Time(s) | 3 ± 0.5 |
| Lifting Distance(mm) | 10 | |
| Lifting Speed(mm/min) | 60 | |
| Waiting Mode During Printing | Mode | Resting time |
| Rest Time After Retract(s) | 10 ± 5 |
| Basic Info | Layer Height(mm) | 0.05 |
|---|---|---|
| Retract Speed(mm/min) | 150 | |
| Bottom Layers | Layer Count | 6 |
| Exposure Time(s) | 35 ± 5 | |
| Lifting Distance(mm) | 10 | |
| Lifting Speed(mm/min) | 60 | |
| Transition Layers | Layer Count | 6 |
| Normal Layers | Exposure Time(s) | 4.5 ± 0.5 |
| Lifting Distance(mm) | 10 | |
| Lifting Speed(mm/min) | 60 | |
| Waiting Mode During Printing | Mode | Resting time |
| Rest Time After Retract(s) | 10 ± 5 |
| Basic Info | Layer Height(mm) | 0.05 |
|---|---|---|
| Retract Speed(mm/min) | 150 | |
| Bottom Layers | Layer Count | 6 |
| Exposure Time(s) | 15 ± 2 | |
| Lifting Distance(mm) | 8 | |
| Lifting Speed(mm/min) | 60 | |
| Transition Layers | Layer Count | 6 |
| Normal Layers | Exposure Time(s) | 2.5 ± 0.5 |
| Lifting Distance(mm) | 8 | |
| Lifting Speed(mm/min) | 60 | |
| Waiting Mode During Printing | Mode | Resting time |
| Rest Time After Retract(s) | 5 |

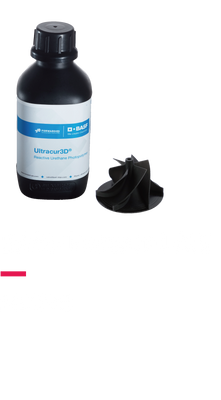

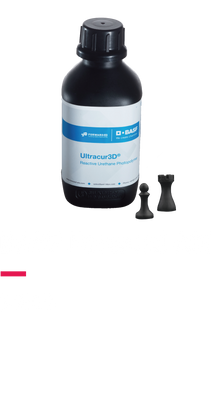

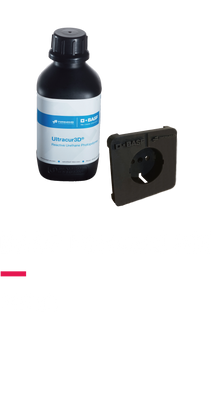

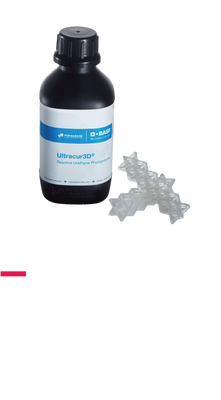

BASF Forward AM

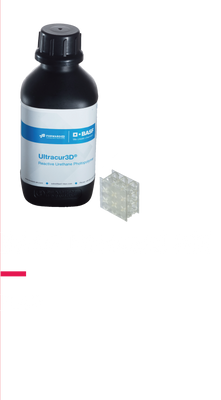

1. FL60
2. RG1100B
3. EL4000B
4. RG3280
5. ST7500G
6. ST45
7. ST45B
8. ST45M

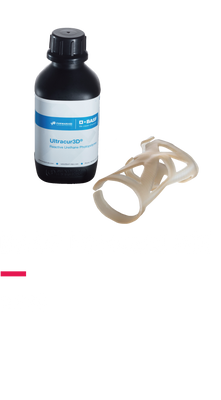

9. RG1100
10. RG35
11. ST80
12. ST80B
13. ST80W
14. RG35B
| Basic Info | Layer Height(mm) | 0.05 |
|---|---|---|
| Retract Speed(mm/min) | 150 | |
| Bottom Layers | Layer Count | 6 |
| Exposure Time(s) | 35 ± 5 | |
| Lifting Distance(mm) | 6 | |
| Lifting Speed(mm/min) | 60 | |
| Transition Layers | Layer Count | 6 |
| Normal Layers | Exposure Time(s) | 10.5 ± 0.5 |
| Lifting Distance(mm) | 6 | |
| Lifting Speed(mm/min) | 60 | |
| Waiting Mode During Printing | Mode | Resting time |
| Rest Time After Retract(s) | 4 |
| Basic Info | Layer Height(mm) | 0.05 |
|---|---|---|
| Retract Speed(mm/min) | 150 | |
| Bottom Layers | Layer Count | 6 |
| Exposure Time(s) | 35 ± 5 | |
| Lifting Distance(mm) | 6 | |
| Lifting Speed(mm/min) | 60 | |
| Transition Layers | Layer Count | 6 |
| Normal Layers | Exposure Time(s) | 8.5 ± 0.5 |
| Lifting Distance(mm) | 6 | |
| Lifting Speed(mm/min) | 60 | |
| Waiting Mode During Printing | Mode | Resting time |
| Rest Time After Retract(s) | 4 |
| Basic Info | Layer Height(mm) | 0.05 |
|---|---|---|
| Retract Speed(mm/min) | 150 | |
| Bottom Layers | Layer Count | 6 |
| Exposure Time(s) | 35 ± 5 | |
| Lifting Distance(mm) | 6 | |
| Lifting Speed(mm/min) | 60 | |
| Transition Layers | Layer Count | 6 |
| Normal Layers | Exposure Time(s) | 6.5 ± 0.5 |
| Lifting Distance(mm) | 6 | |
| Lifting Speed(mm/min) | 60 | |
| Waiting Mode During Printing | Mode | Resting time |
| Rest Time After Retract(s) | 4 |
| Basic Info | Layer Height(mm) | 0.05 |
|---|---|---|
| Retract Speed(mm/min) | 150 | |
| Bottom Layers | Layer Count | 6 |
| Exposure Time(s) | 35 ± 5 | |
| Lifting Distance(mm) | 6 | |
| Lifting Speed(mm/min) | 60 | |
| Transition Layers | Layer Count | 6 |
| Normal Layers | Exposure Time(s) | 2.8 ± 0.5 |
| Lifting Distance(mm) | 6 | |
| Lifting Speed(mm/min) | 60 | |
| Waiting Mode During Printing | Mode | Resting time |
| Rest Time After Retract(s) | 4 |
| Basic Info | Layer Height(mm) | 0.05 |
|---|---|---|
| Retract Speed(mm/min) | 150 | |
| Bottom Layers | Layer Count | 6 |
| Exposure Time(s) | 35 ± 5 | |
| Lifting Distance(mm) | 6 | |
| Lifting Speed(mm/min) | 60 | |
| Transition Layers | Layer Count | 6 |
| Normal Layers | Exposure Time(s) | 6.5 ± 0.5 |
| Lifting Distance(mm) | 6 | |
| Lifting Speed(mm/min) | 60 | |
| Waiting Mode During Printing | Mode | Resting time |
| Rest Time After Retract(s) | 4 |
| Basic Info | Layer Height(mm) | 0.05 |
|---|---|---|
| Retract Speed(mm/min) | 150 | |
| Bottom Layers | Layer Count | 6 |
| Exposure Time(s) | 35 ± 5 | |
| Lifting Distance(mm) | 6 | |
| Lifting Speed(mm/min) | 60 | |
| Transition Layers | Layer Count | 6 |
| Normal Layers | Exposure Time(s) | 7.5 ± 0.5 |
| Lifting Distance(mm) | 6 | |
| Lifting Speed(mm/min) | 60 | |
| Waiting Mode During Printing | Mode | Resting time |
| Rest Time After Retract(s) | 4 |
| Basic Info | Layer Height(mm) | 0.05 |
|---|---|---|
| Retract Speed(mm/min) | 150 | |
| Bottom Layers | Layer Count | 6 |
| Exposure Time(s) | 35 ± 5 | |
| Lifting Distance(mm) | 6 | |
| Lifting Speed(mm/min) | 60 | |
| Transition Layers | Layer Count | 6 |
| Normal Layers | Exposure Time(s) | 6.5 ± 0.5 |
| Lifting Distance(mm) | 6 | |
| Lifting Speed(mm/min) | 60 | |
| Waiting Mode During Printing | Mode | Resting time |
| Rest Time After Retract(s) | 4 |
| Basic Info | Layer Height(mm) | 0.05 |
|---|---|---|
| Retract Speed(mm/min) | 150 | |
| Bottom Layers | Layer Count | 6 |
| Exposure Time(s) | 35 ± 5 | |
| Lifting Distance(mm) | 6 | |
| Lifting Speed(mm/min) | 60 | |
| Transition Layers | Layer Count | 6 |
| Normal Layers | Exposure Time(s) | 9 ± 0.5 |
| Lifting Distance(mm) | 6 | |
| Lifting Speed(mm/min) | 60 | |
| Waiting Mode During Printing | Mode | Resting time |
| Rest Time After Retract(s) | 4 |
| Basic Info | Layer Height(mm) | 0.05 |
|---|---|---|
| Retract Speed(mm/min) | 150 | |
| Bottom Layers | Layer Count | 6 |
| Exposure Time(s) | 35 ± 5 | |
| Lifting Distance(mm) | 6 | |
| Lifting Speed(mm/min) | 60 | |
| Transition Layers | Layer Count | 6 |
| Normal Layers | Exposure Time(s) | 9 ± 0.5 |
| Lifting Distance(mm) | 3 | |
| Lifting Speed(mm/min) | 60 | |
| Waiting Mode During Printing | Mode | Resting time |
| Rest Time After Retract(s) | 4 |
| Basic Info | Layer Height(mm) | 0.05 |
|---|---|---|
| Retract Speed(mm/min) | 150 | |
| Bottom Layers | Layer Count | 6 |
| Exposure Time(s) | 35 ± 5 | |
| Lifting Distance(mm) | 6 | |
| Lifting Speed(mm/min) | 60 | |
| Transition Layers | Layer Count | 6 |
| Normal Layers | Exposure Time(s) | 9 ± 0.5 |
| Lifting Distance(mm) | 6 | |
| Lifting Speed(mm/min) | 60 | |
| Waiting Mode During Printing | Mode | Resting time |
| Rest Time After Retract(s) | 4 |
| Basic Info | Layer Height(mm) | 0.05 |
|---|---|---|
| Retract Speed(mm/min) | 150 | |
| Bottom Layers | Layer Count | 6 |
| Exposure Time(s) | 35 ± 5 | |
| Lifting Distance(mm) | 3 | |
| Lifting Speed(mm/min) | 60 | |
| Transition Layers | Layer Count | 6 |
| Normal Layers | Exposure Time(s) | 10 ± 0.5 |
| Lifting Distance(mm) | 6 | |
| Lifting Speed(mm/min) | 60 | |
| Waiting Mode During Printing | Mode | Resting time |
| Rest Time After Retract(s) | 4 |
| Basic Info | Layer Height(mm) | 0.05 |
|---|---|---|
| Retract Speed(mm/min) | 150 | |
| Bottom Layers | Layer Count | 6 |
| Exposure Time(s) | 35 ± 5 | |
| Lifting Distance(mm) | 6 | |
| Lifting Speed(mm/min) | 60 | |
| Transition Layers | Layer Count | 6 |
| Normal Layers | Exposure Time(s) | 16.5 ± 0.5 |
| Lifting Distance(mm) | 6 | |
| Lifting Speed(mm/min) | 60 | |
| Waiting Mode During Printing | Mode | Resting time |
| Rest Time After Retract(s) | 4 |
| Basic Info | Layer Height(mm) | 0.05 |
|---|---|---|
| Retract Speed(mm/min) | 150 | |
| Bottom Layers | Layer Count | 6 |
| Exposure Time(s) | 35 ± 5 | |
| Lifting Distance(mm) | 6 | |
| Lifting Speed(mm/min) | 60 | |
| Transition Layers | Layer Count | 6 |
| Normal Layers | Exposure Time(s) | 12 ± 0.5 |
| Lifting Distance(mm) | 6 | |
| Lifting Speed(mm/min) | 60 | |
| Waiting Mode During Printing | Mode | Resting time |
| Rest Time After Retract(s) | 4 |
| Basic Info | Layer Height(mm) | 0.15 |
|---|---|---|
| Retract Speed(mm/min) | 150 | |
| Bottom Layers | Layer Count | 6 |
| Exposure Time(s) | 35 ± 5 | |
| Lifting Distance(mm) | 6 | |
| Lifting Speed(mm/min) | 60 | |
| Transition Layers | Layer Count | 6 |
| Normal Layers | Exposure Time(s) | 11.5 ± 0.5 |
| Lifting Distance(mm) | 6 | |
| Lifting Speed(mm/min) | 60 | |
| Waiting Mode During Printing | Mode | Resting time |
| Rest Time After Retract(s) | 4 |
