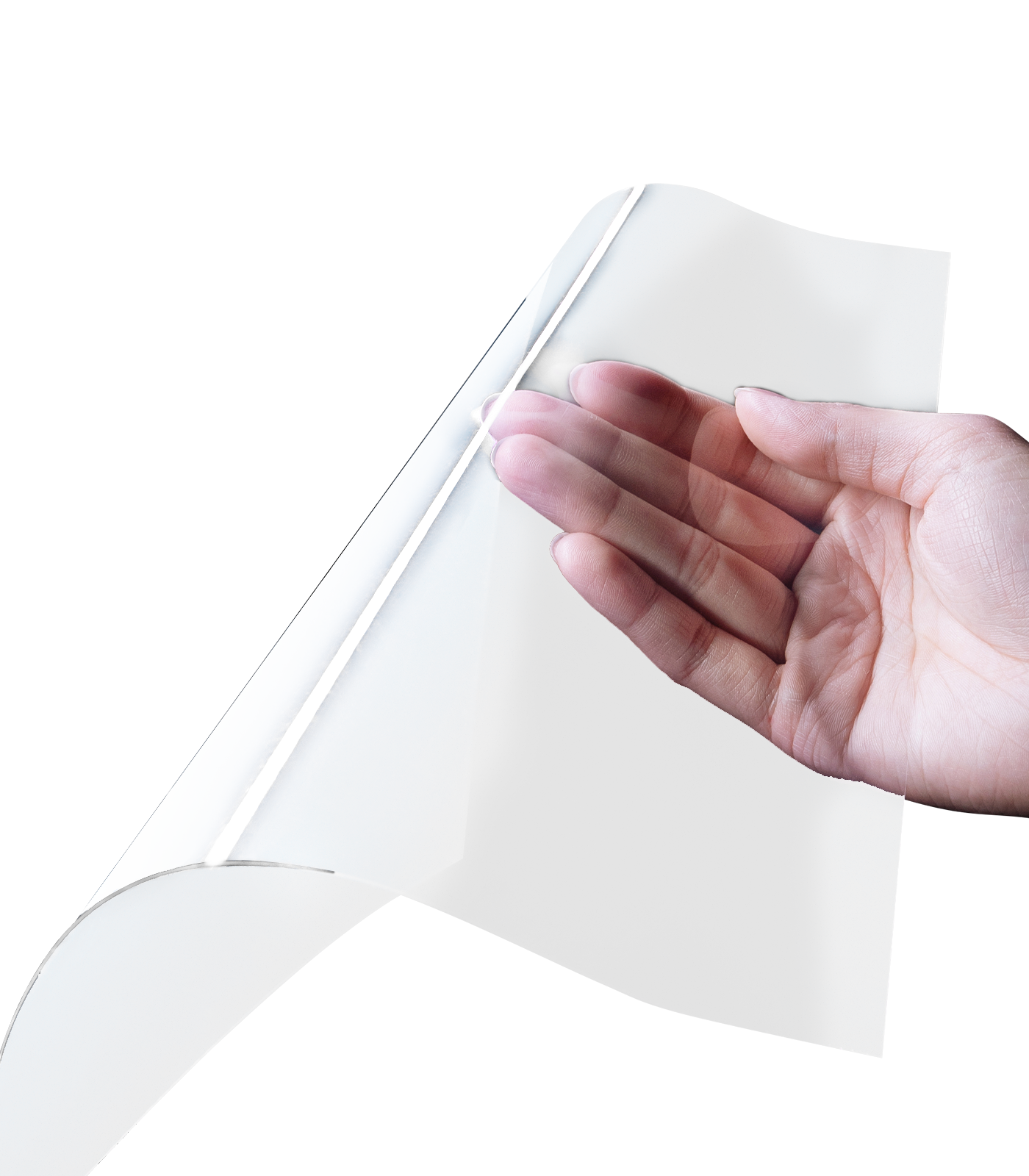

Phrozen ACF Release Film
The new Phrozen ACF film is designed with a non-stick and smoother film surface for more efficient 3D printing.
Compared to FEP and PFA (nFEP) film, the ACF film features a better release, reducing the printing time and increasing the success rate.
*Note: The glossy surface will be in the resin vat, while the matte surface will be face the LCD screen.
Benefits
-

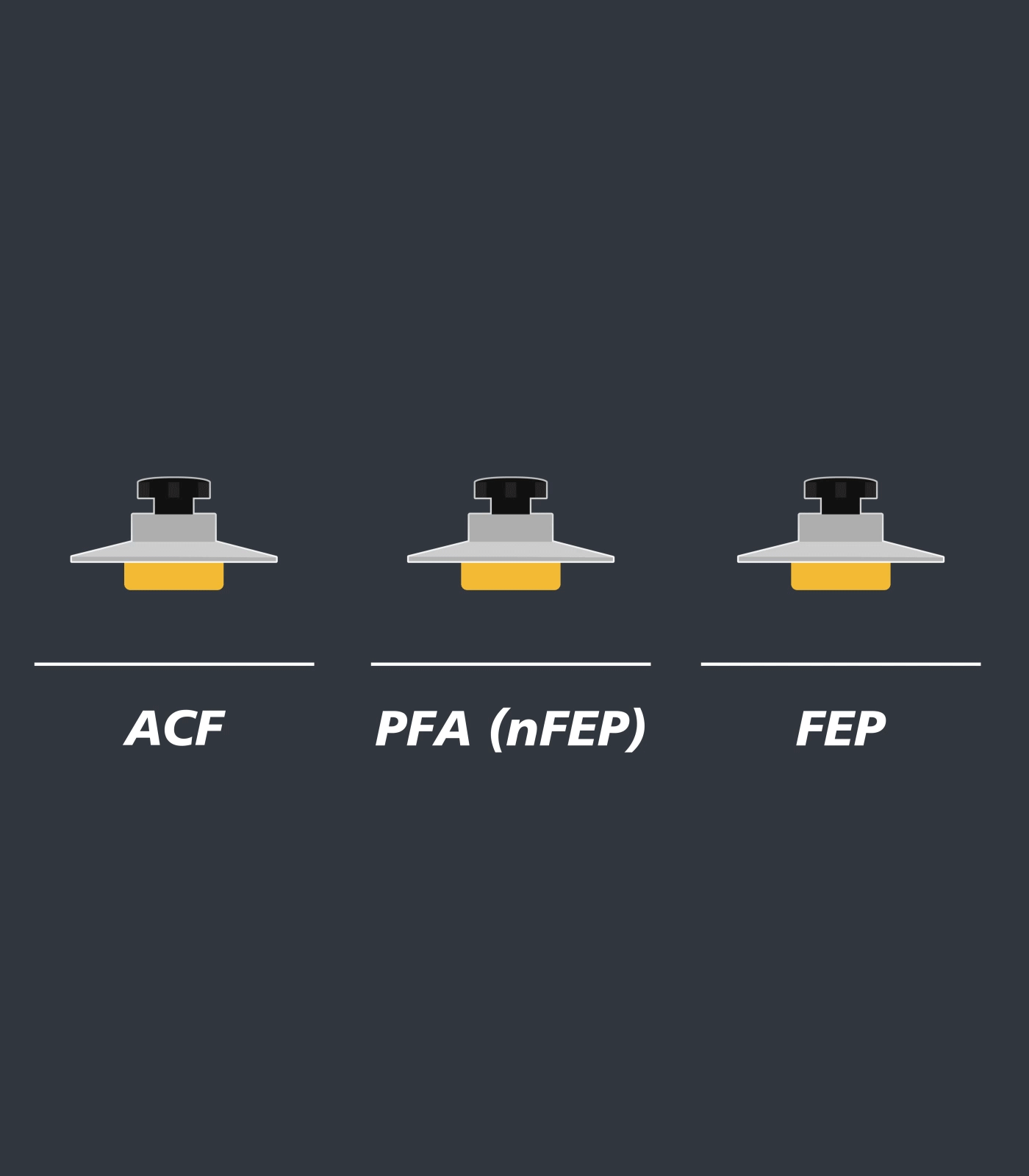

Less Peeling Force

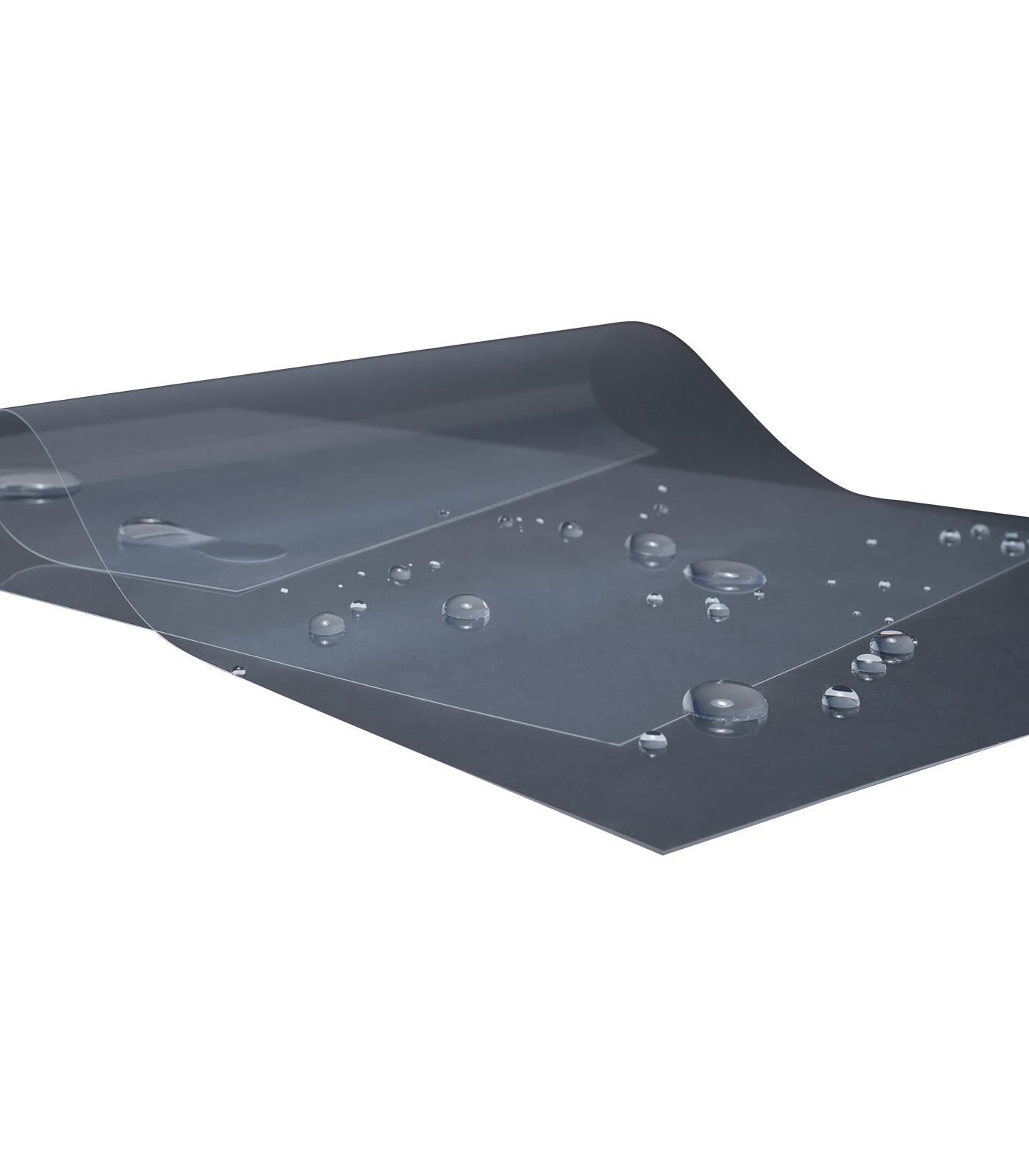

With a smoother and less sticky surface, Phrozen ACF film has a better release compared to FEP and PFA (nFEP) film.
-
Print Faster Than Before
Minimize your lift distance and boost your printing speed, all without worrying about suction cups.
-
Successful Print Every Time
No more failed prints, even when printing large models with fewer and thinner supports.
*In comparison to Phrozen FEP and PFA(nFEP) films.
*Please note that printing with extreme speed for an extended period will quickly wear out your LCD and ACF film.
Specs
Phrozen ACF Film A4
- Material: ACF
- Color: Transparent
- Size: A4 (210 x 290 mm)
- Applicable Models: Sonic Mini 8K S/ Sonic Mini 8K/ Sonic 4K 2022/ Sonic mini 4K/ Sonic Mighty 4K/ Sonic 4K/ Shuffle 4K/ Sonic mini/Sonic/ Shuffle Lite/ Shuffle 2019/ Shuffle 2018/ Phrozen Make
- Spec: 300 μm

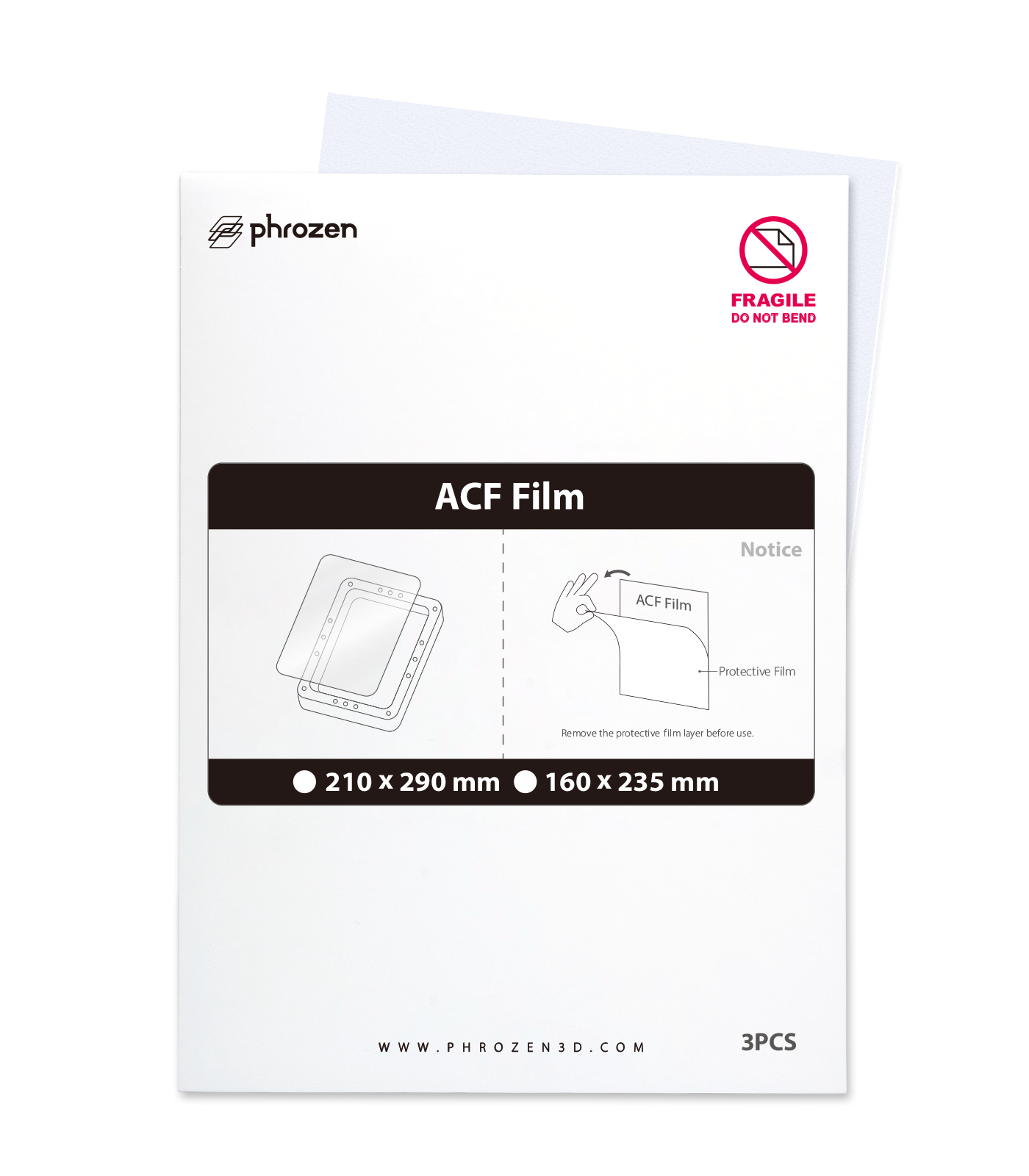

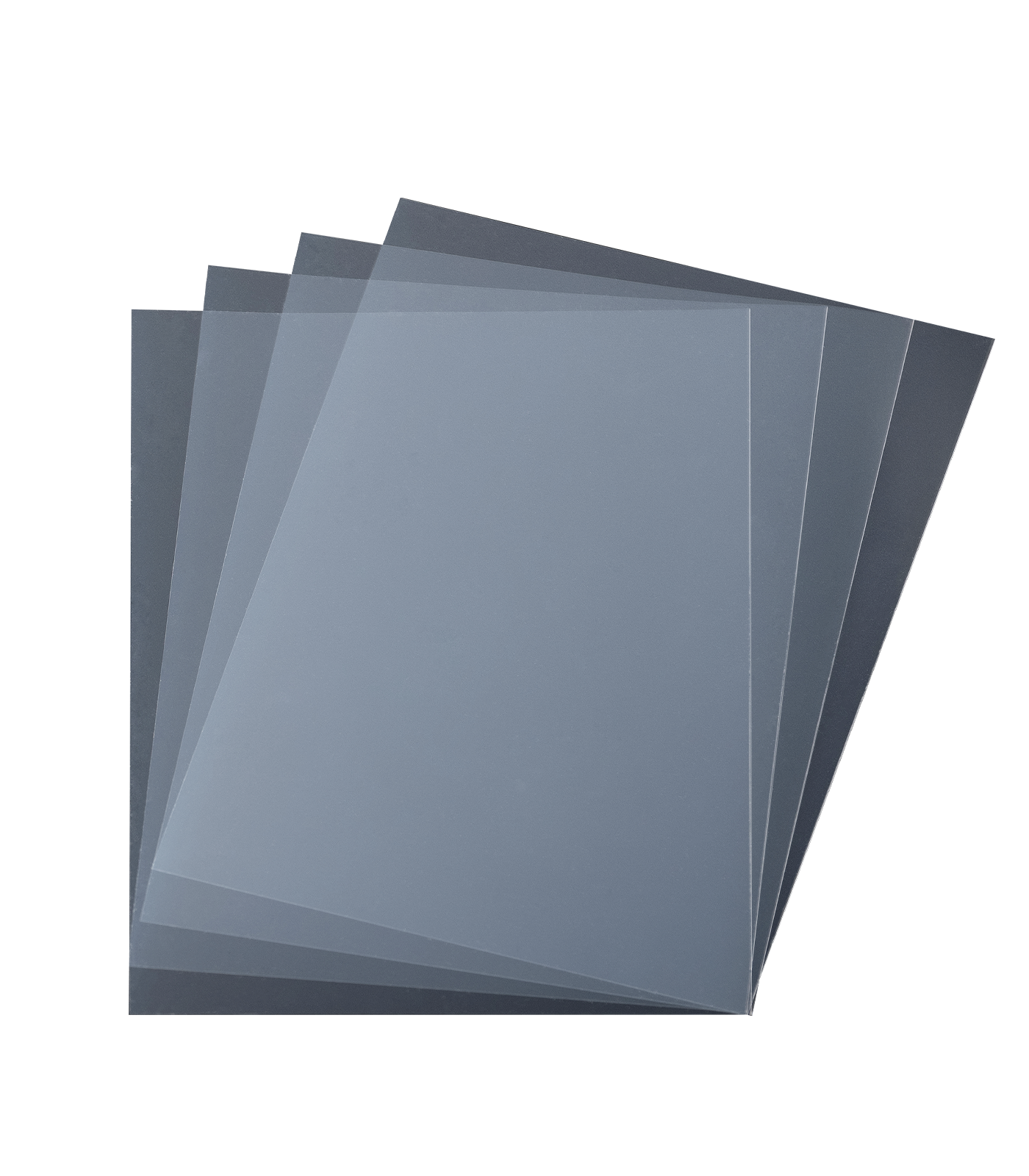

- Content: Phrozen ACF Film (210 x 290 mm) x 3 pc
Phrozen ACF Film Mini
- Material: ACF
- Color: Transparent
- Size: 160 x 235 mm
- Applicable Models: Sonic Mini 8K S/ Sonic Mini 8K/ Sonic 4K 2022/ Sonic mini 4K/ Sonic 4K/ Shuffle 4K/ Sonic mini/Sonic/ Shuffle Lite/ Shuffle 2019/ Shuffle 2018/ Phrozen Make
- Spec: 300 μm
- Content: Phrozen ACF Film (160x 235 mm) x 3 pc
Phrozen ACF Film Mighty
- Material:ACF
- Color:Transparent
- Size:220 x 310 mm
- Applicable Models: Sonic Mighty 8K / Sonic Mighty 12K / Sonic Mighty Revo
- Spec: 300 μm
- Content:Phrozen ACF Film (220x 310 mm) x 3 pc

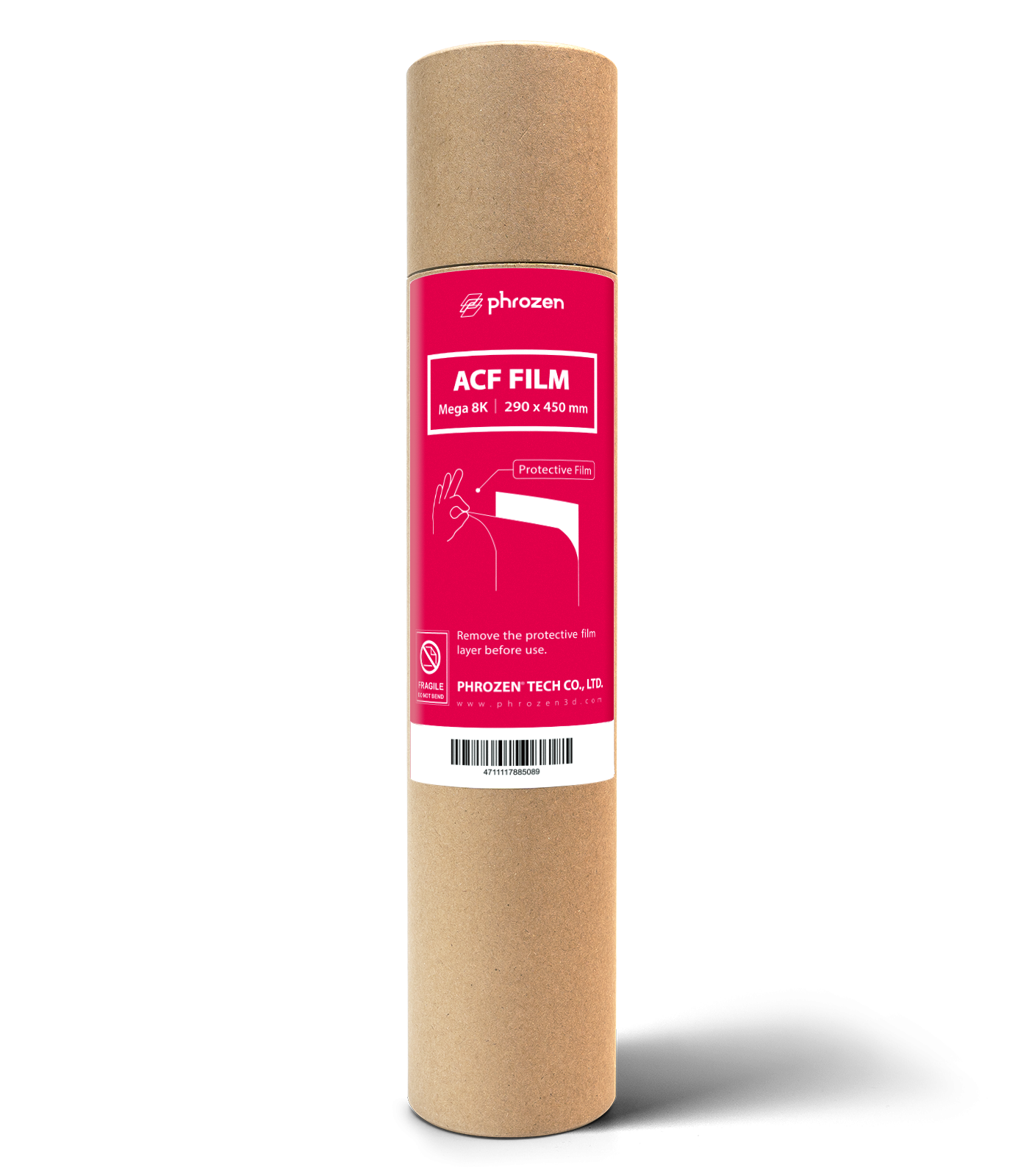

Phrozen ACF Film Mega
- Material: ACF
- Color: Transparent
- Size: 290 x 450 mm
- Applicable Models: Sonic Mega 8K/ Sonic Mega 8K S
- Spec: 300 μm
- Content: Phrozen ACF Film (290 x 450 mm) x 3 pc
*Note: The glossy surface will be in the resin vat, while the matte surface will be face the LCD screen.
Resources
This tutorial can also be used as a reference for replacing ACF film.
