GraviCoreXY™ - Extra Structural Stability

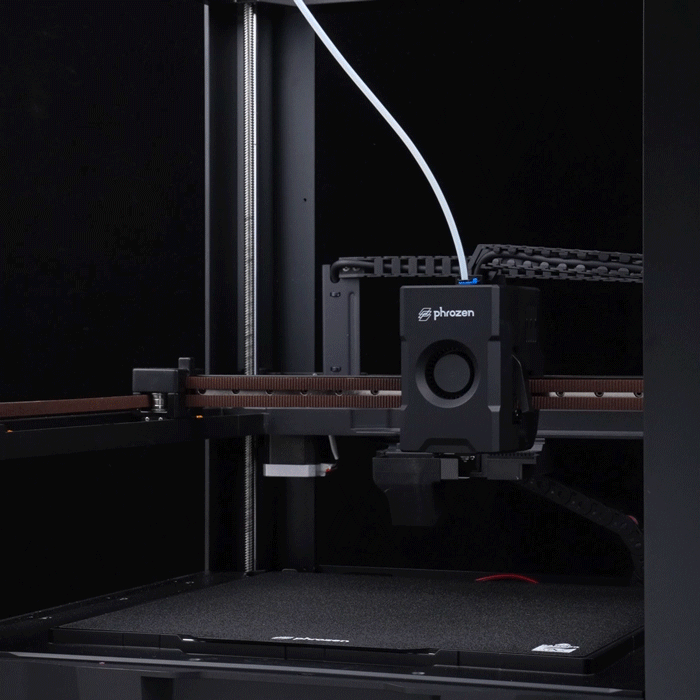

GraviCoreXY™ features a robust frame and a stationary build platform. It features a low center-of-gravity X/Y gantry movement for greater stability and smoother performance.
How We Build GraviCoreXY™
GraviCoreXY™ is made of three core parts: reinforced pillars, a thickened base, and a full-metal flying gantry, working together to reduce vibration and ensure stable, accurate prints at high speed.

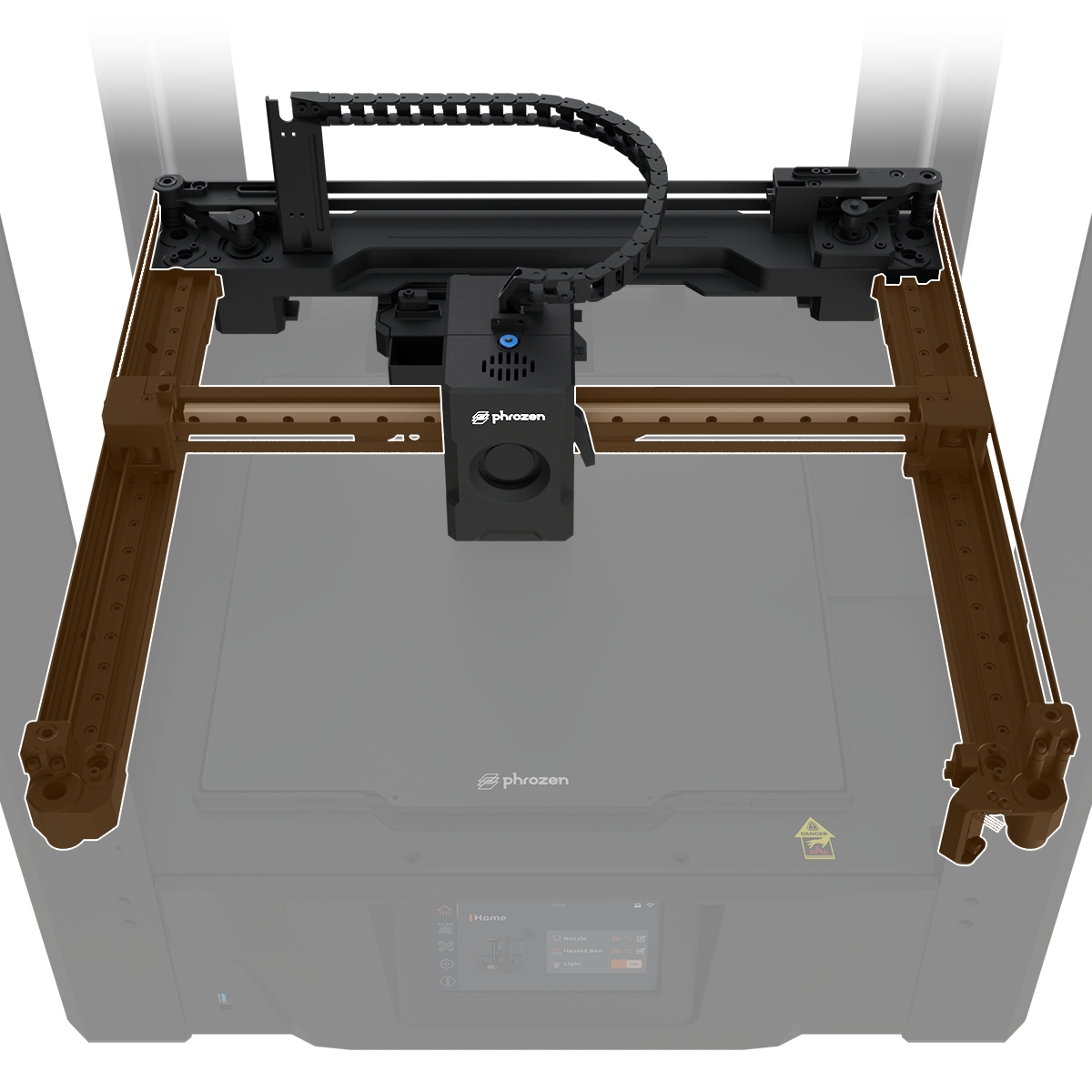

Full-metal Flying Gantry

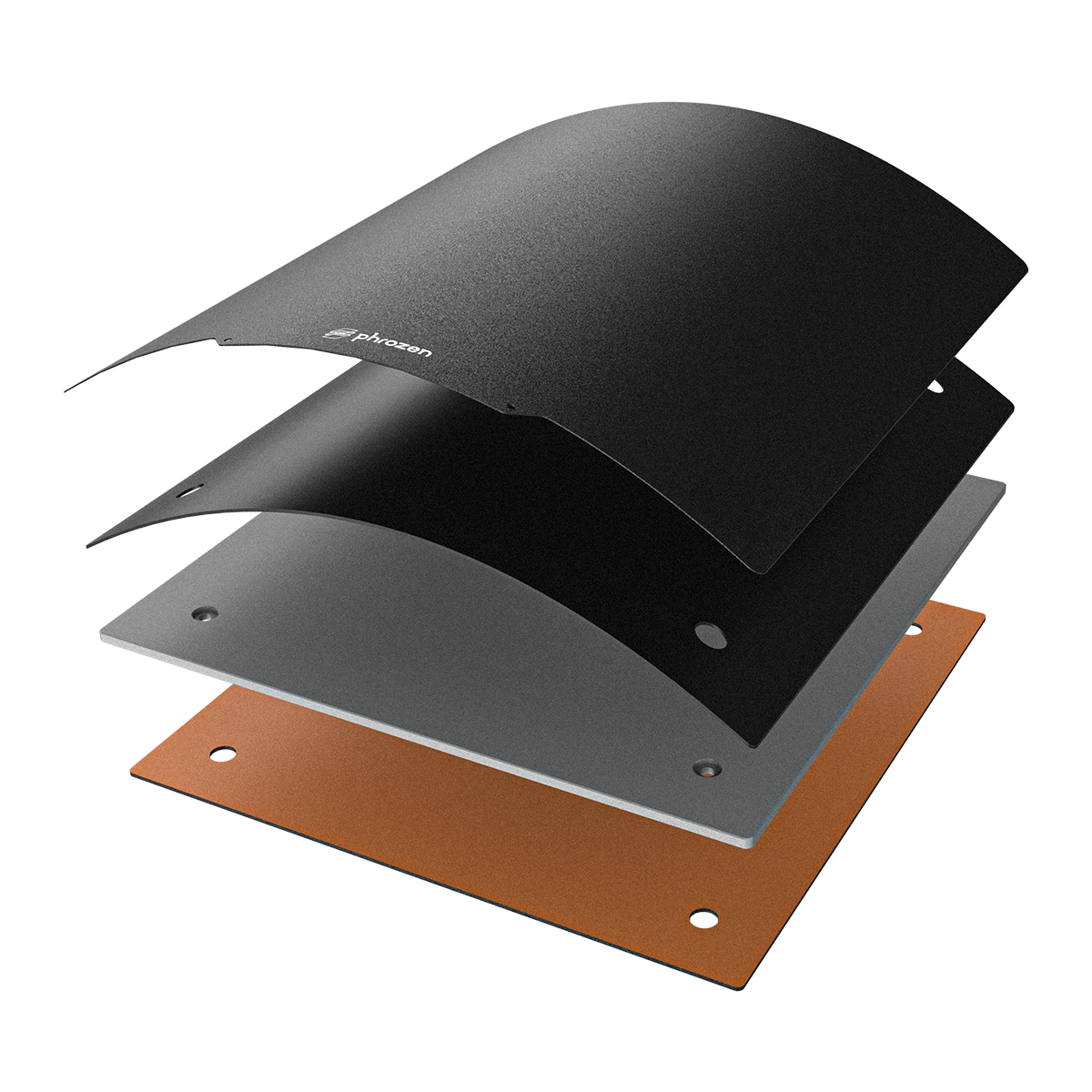

Thickened 4 Layer Heated Build Plate

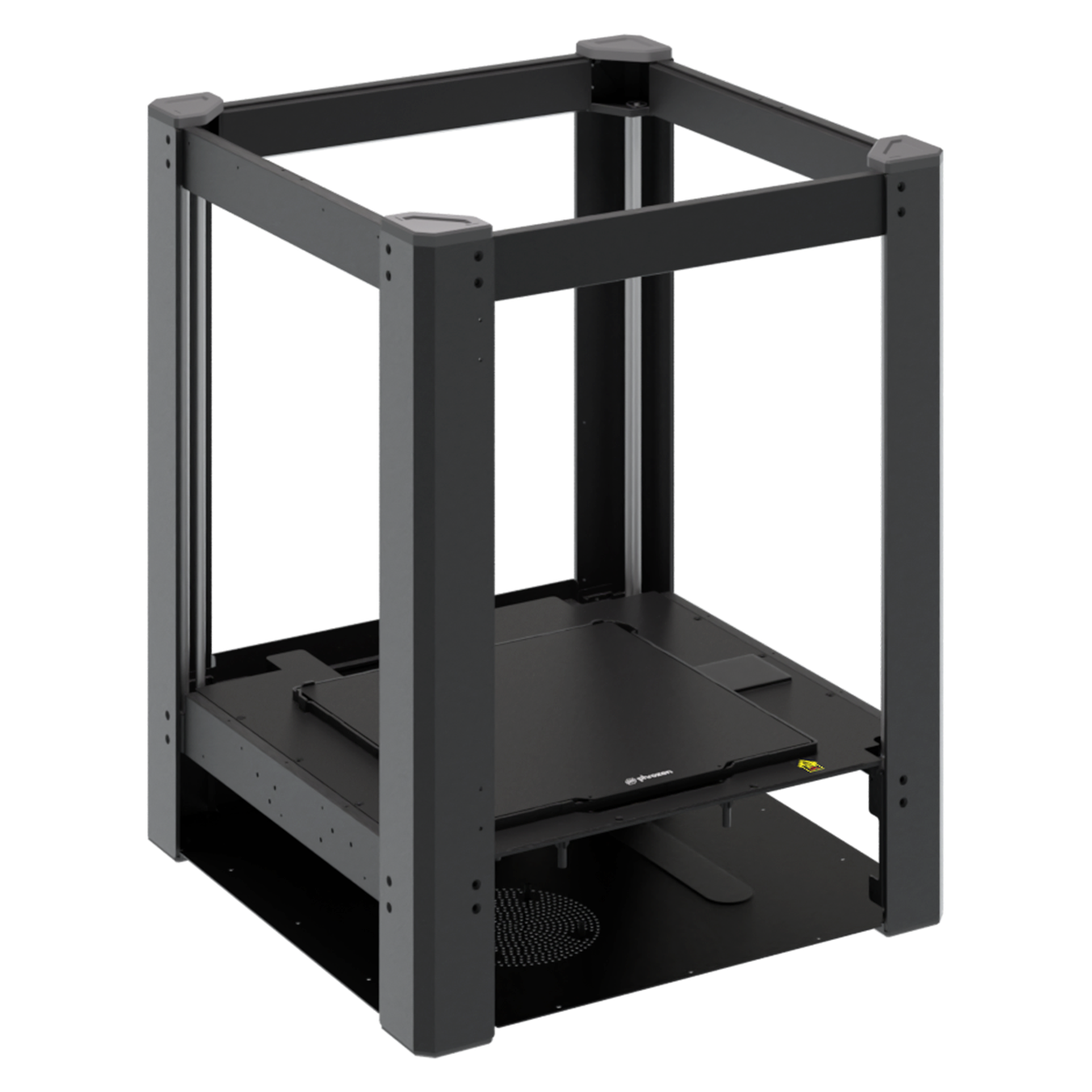

Sturdy 4-Pillar Support Structure

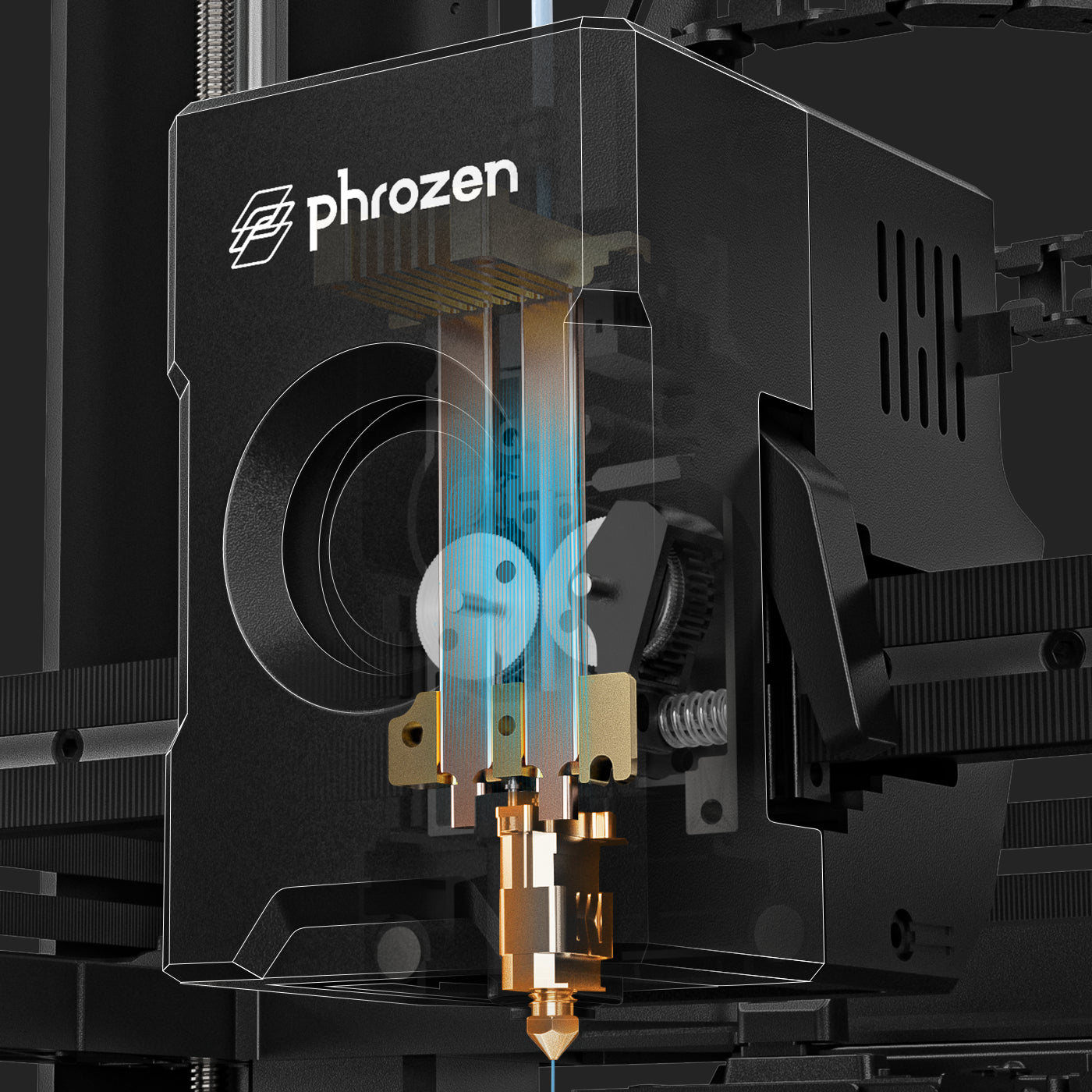

Patented Extrusion for Faster, Cleaner Swaps
ARCO’s patented Direct Extrusion Path moves heat dissipation upward, reducing the distance between the drive gear and nozzle. With a powerful 18mm gear, it delivers enhanced torque and extrusion flow.
Included with ARCO
Three Nozzles for Every Printing Challenge

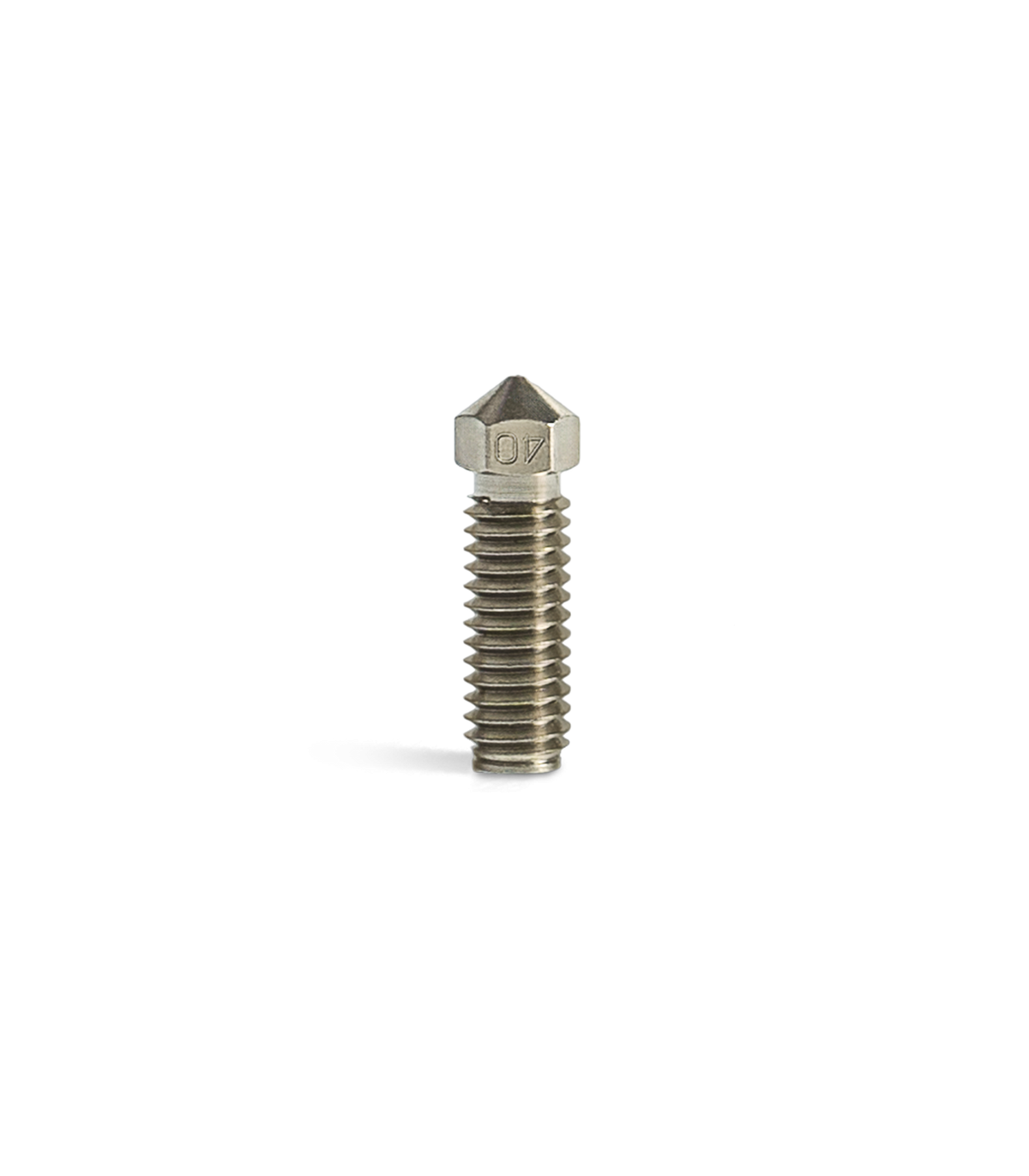

Phrozen Standard Nozzle
The Standard Nozzle handles PLA and
PETG with ease, providing good thermal conductivity for consistent everyday
prints.
Ideal for: good thermal conductivity for general-purpose prints
Bondtech CHT Nozzle
Designed for speed and volume, the Bondtech CHT® Nozzle features a high-flow tri-channel core that boosts melting capacity. From reknown Swedish brand Bondtech, it enables ARCO to achieve flow rates up to 50 mm³/s.
Ideal for: large-scale, high-speed 3D printing.
Slice Engineering GammaMaster Nozzle
The GammaMaster® Nozzle features a hardened alloy and Low Gamma™ coating for excellent wear resistance and long-lasting performance. Designed by Florida-based Slice Engineering, its copper-based core ensures efficient thermal conductivity.
Ideal for: tough, engineering-grade filaments.

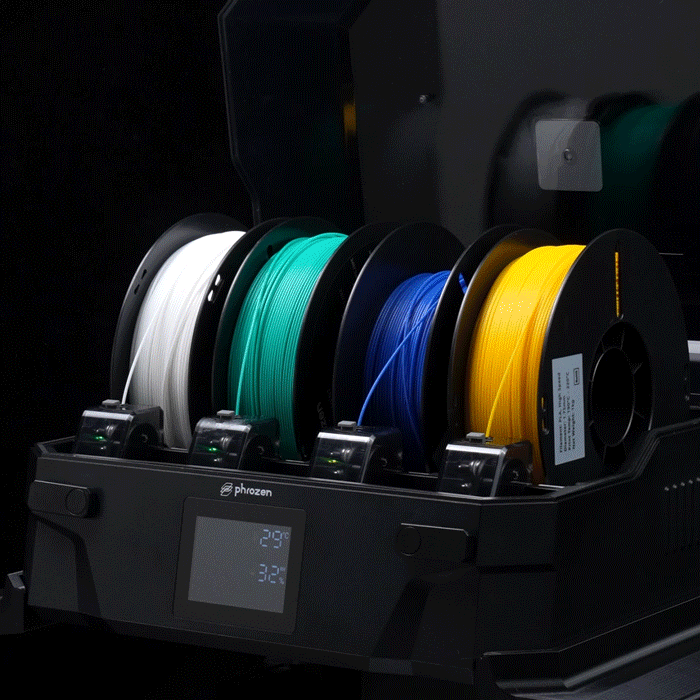

Efficient Filament Switching with Four Filament Feed Tubes
ARCO’s four filament feed tubes near the extruder switching system reduce filament travel, shortening loading time and making filament changes up to 50% faster than common 4-in-1 systems.

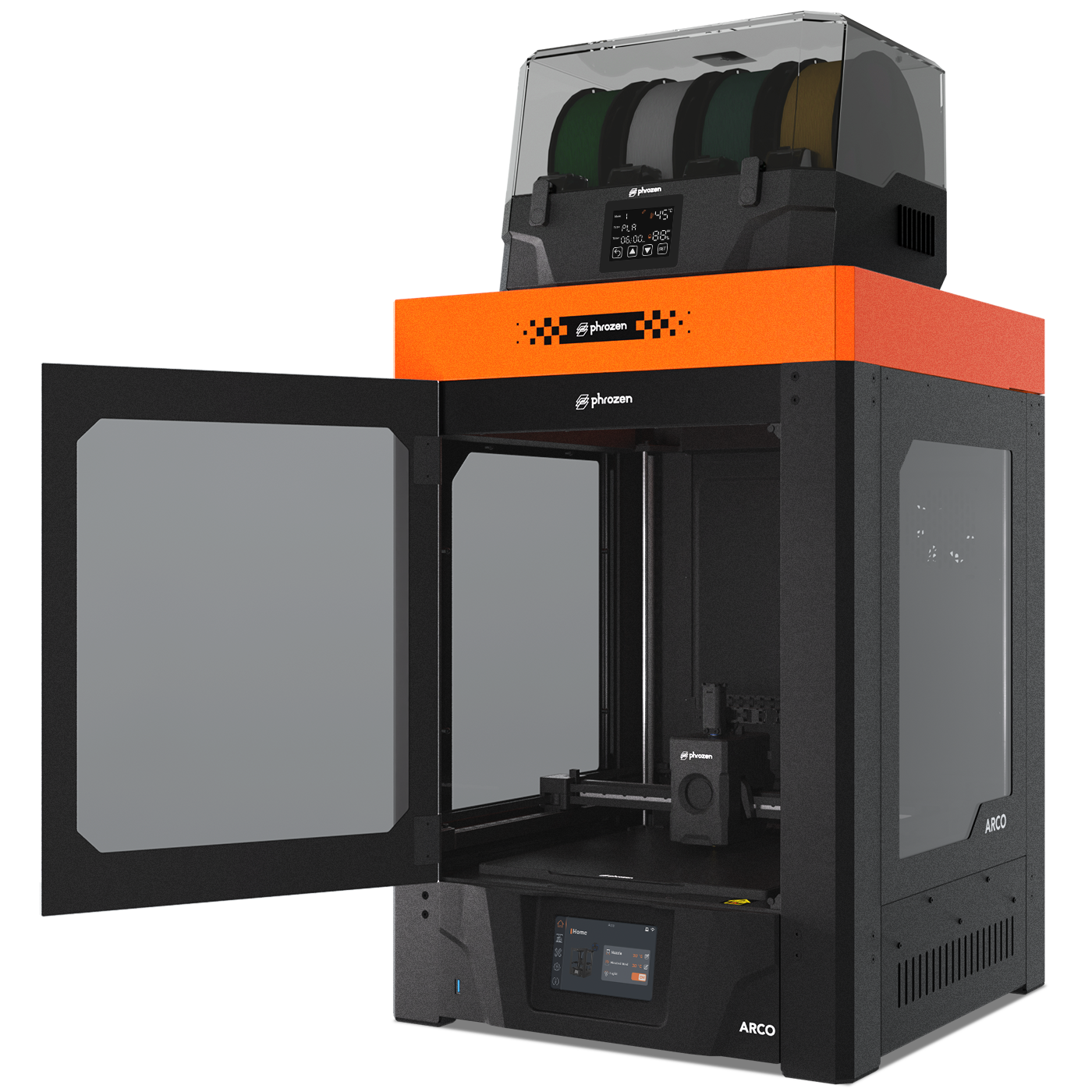

Premium Cover for Stable and Safe Printing
Pentashield is a fully enclosed cover with a carbon-filtered fan that activates at 35°C, maintaining internal temperature, reducing odor, and supporting a quieter, stable printing environment.
Everything You Need to Start Printing
From recommended slicers and materials to verified filament settings, Phrozen provides all the essential resources to help ARCO users get up and running quickly, with great results from day one.
PIXUP Platform
PIXUP FDM Slicer
ARCO Resources
Filament
Media Spotlight
阿科規格
| 印刷量 | 300*300*300 立方毫米 |
| 色度套件 | 最多 4 種顏色 |
| 擠出系統 | 雙18毫米金屬擠壓齒輪，全金屬熱端 |
| 列印速度 | 600 毫米/秒（最大）； 30,000 mm/s² 加速度（最大） |
| 最大熱端流量 | 32 mm³/s（280°C 時，使用 Phrozen 高速 PLA 長絲） |
| 加熱床溫度 | 0–120°C |
| 噴嘴溫度 | 0–300°C |
| 列印功率 | 1500瓦@220伏特； 450瓦@110伏 |
| 輸入電壓 | 110/220V； 50/60赫茲 |
| 系統類型（韌體） | 克利珀 |
| 切片機 | 與大多數第三方 FDM 切片機相容（單色列印） PIXUP FDM 切片機（多色列印） |
| 顯示螢幕 | 5吋 |
| 聯繫 | Wi-Fi、PIXUP FDM 切片機 |
| 貯存 | USB |
| 自動偵測 | PID標定、自動調平、震動偵測 |
| 機器重量 | 22 公斤/48.5 磅 |
| 測量值 | 491x475x620 毫米 19.3x18.7x24.4 英寸 |
