Sonic Mighty Revo: An Extra Layer of Security for a Successful Print
Seamless Mobile Integration and Patented Smart Sensors
Have an Extra Eye on Your Printer

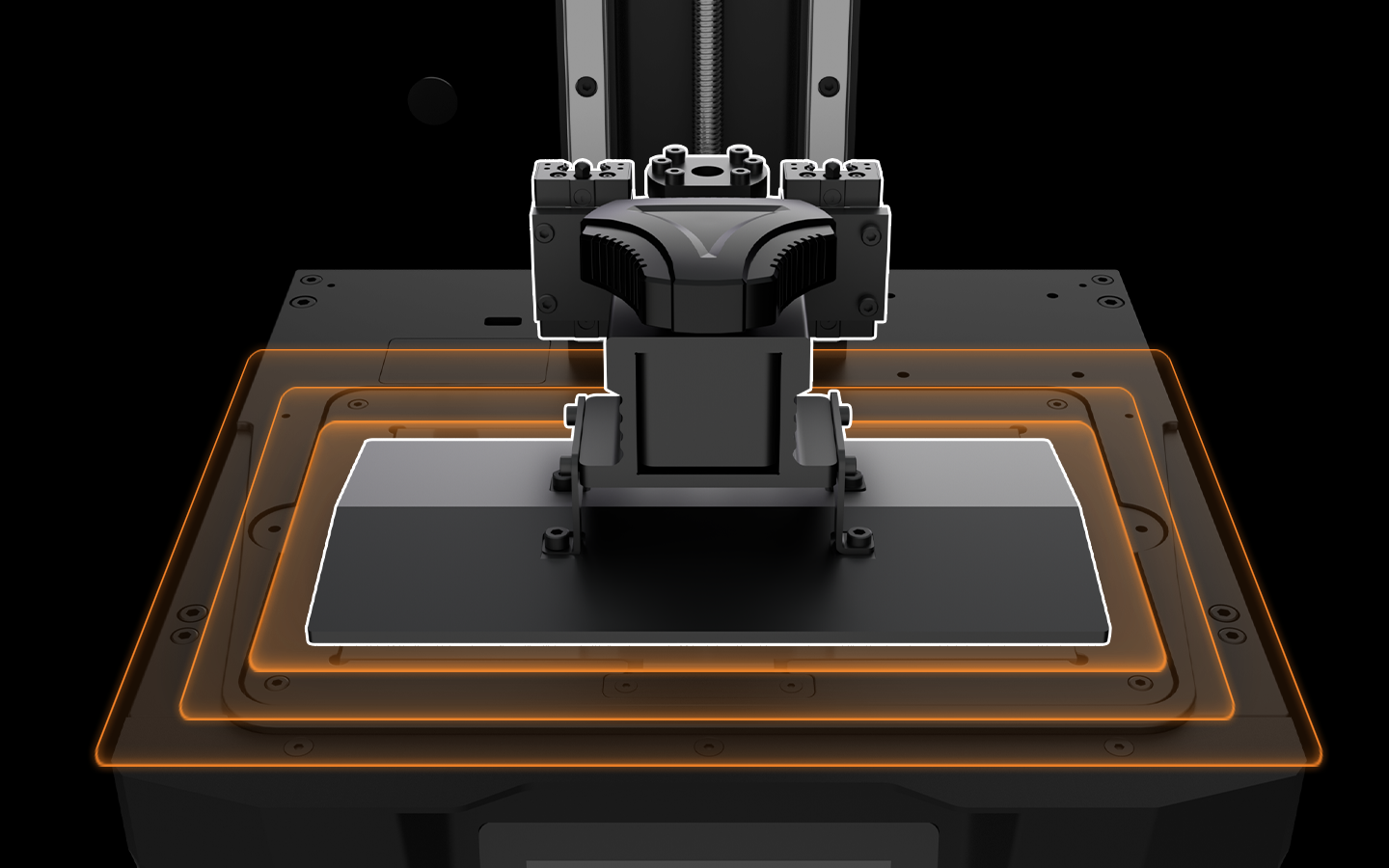

Smart Residue Detection
Avoid breaking your LCD screen due to cured particles in the vat.
The sensor will cue the printer to stop printing once it detects any foreign objects between the building plate and the release film upon its initial descent.*
*The sensors will detect objects ≥ 4mm.

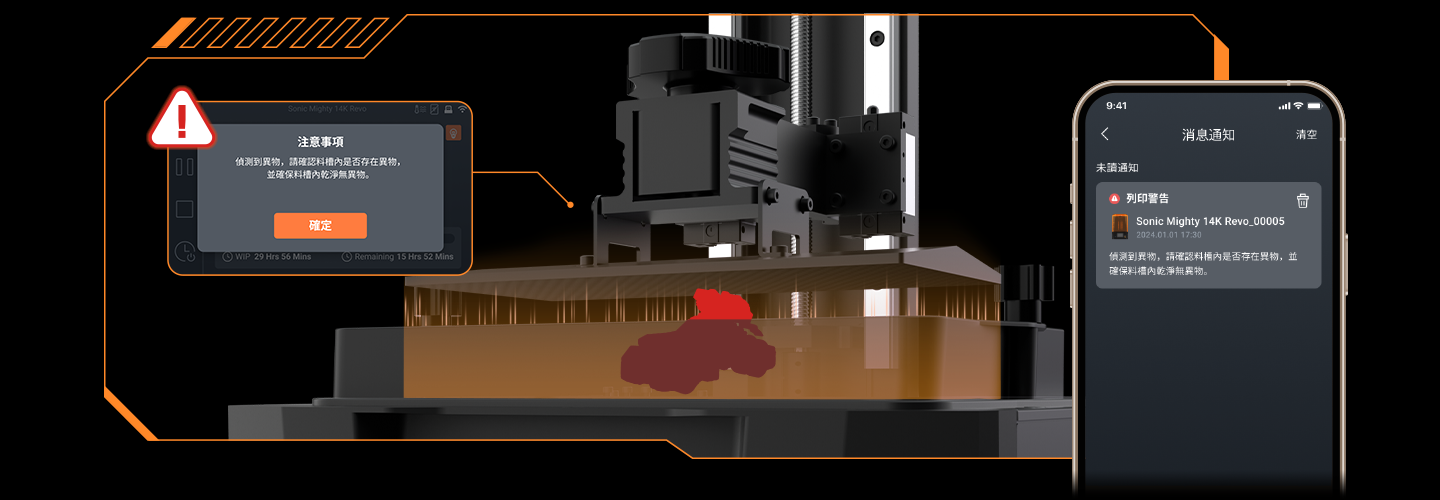

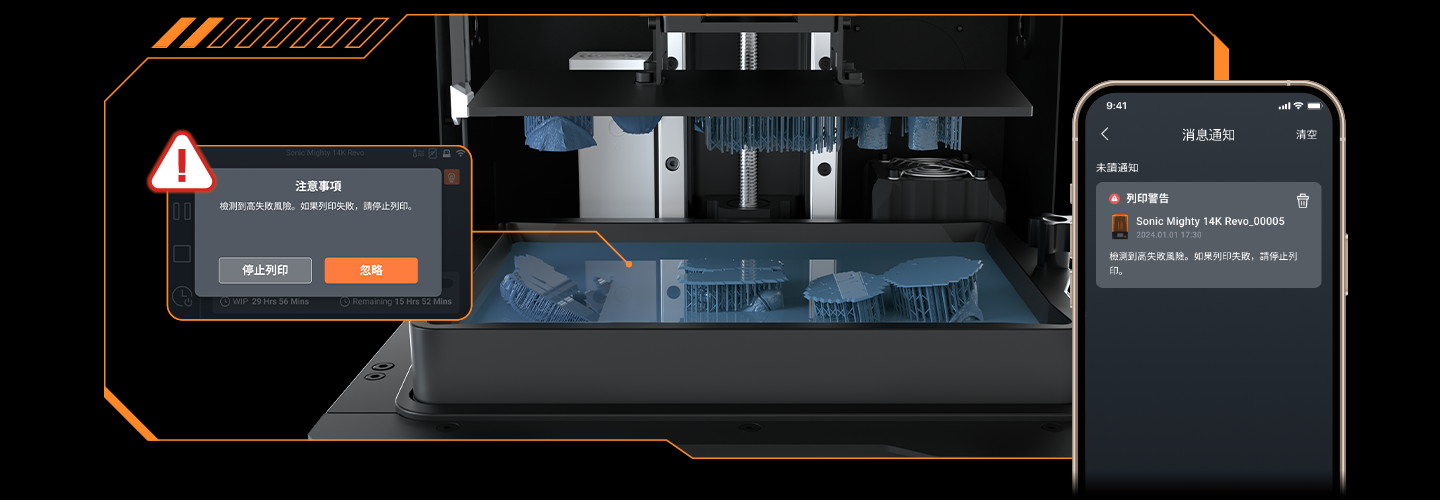

Smart Failure Detection
Get notified of possible failure early in both your printer and your phone (through the Phrozen GO App) when the sensors detect abnormalities during printing.
*Notifications will be triggered once sensors detect the complete absence of peeling force for 15 continuous layers,
after the building plate is no longer submerged in resin.
Reduce Smelly Fumes, Breathe Cleaner Air
Pungent resin odor in your living area can be annoying.
Revo is equipped with an air purifier and built-in exhaust vent, covering your printing needs and ensuring a more enjoyable setting.

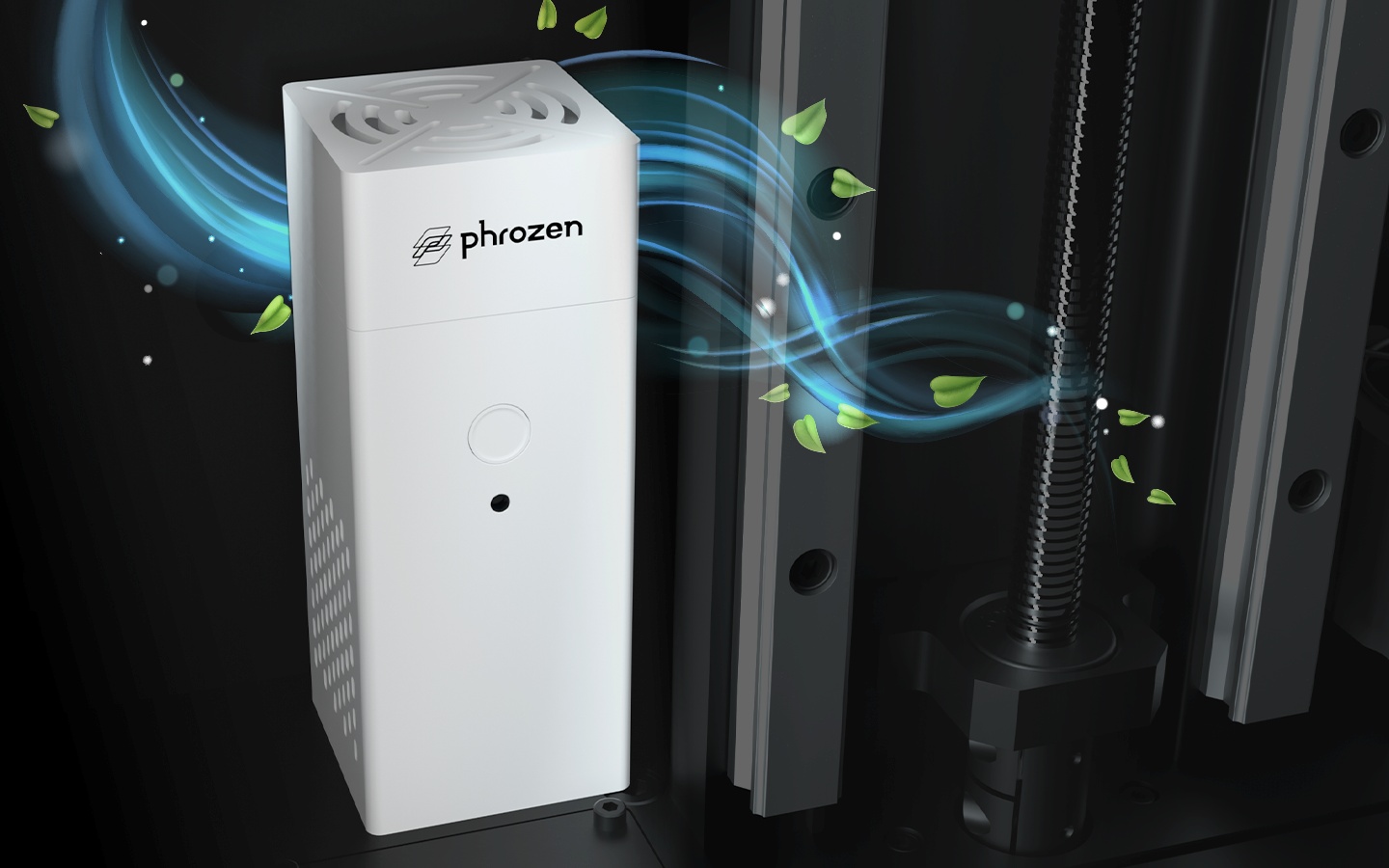

Air Purifier
Adsorb resin fumes directly within the printing enclosure, ensuring a cleaner workspace and elevating your overall printing experience.

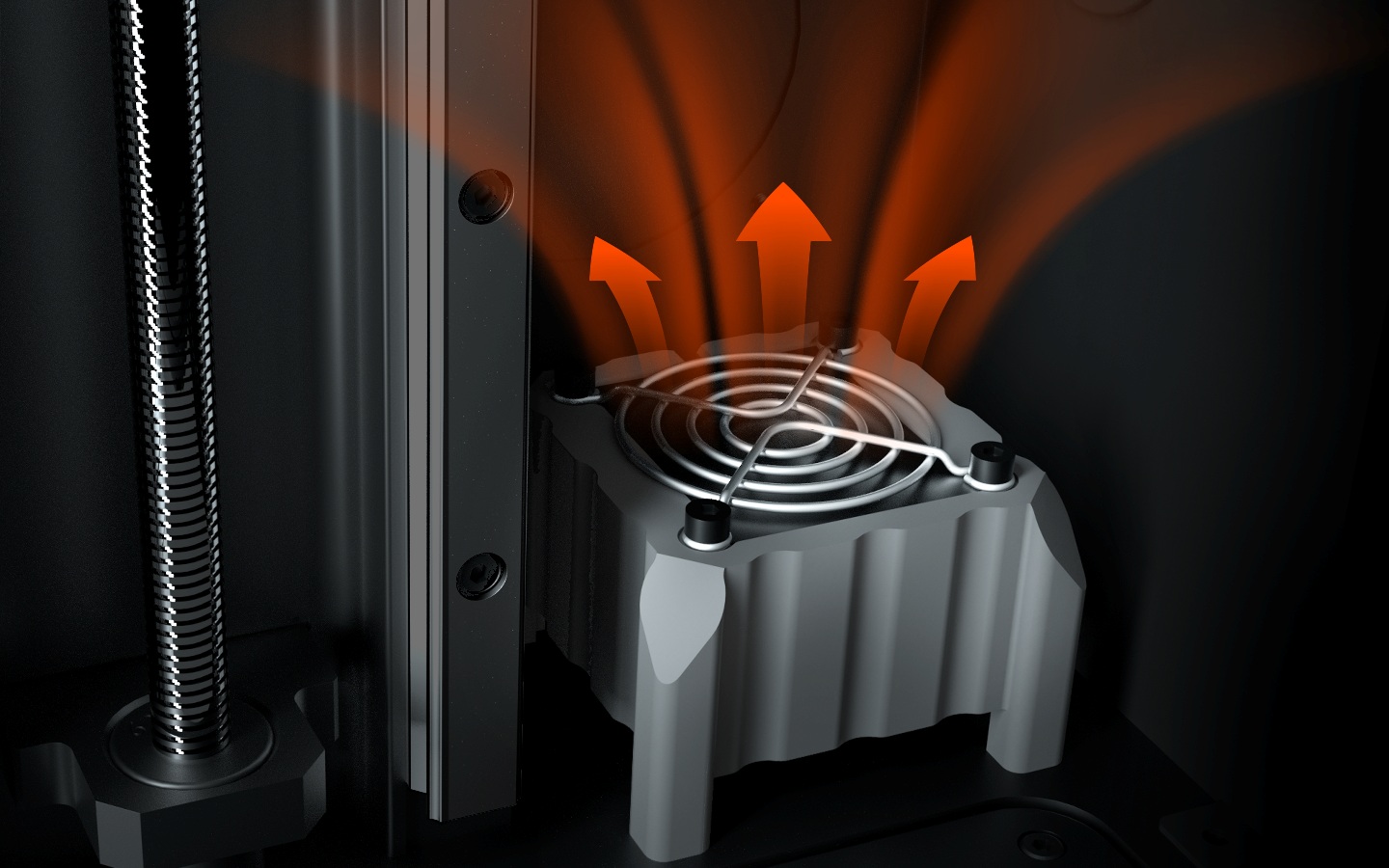

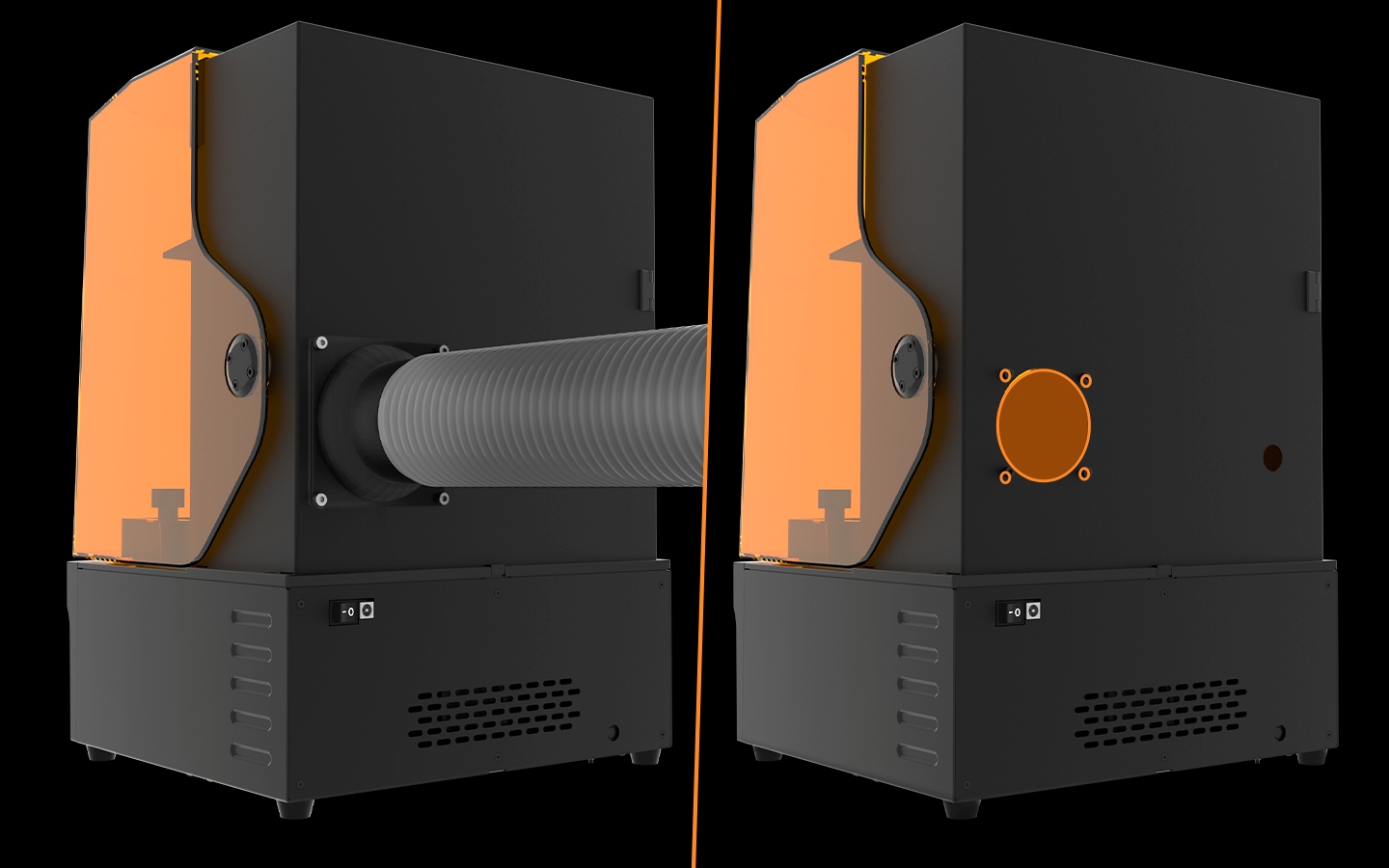

Built-In Exhaust Vent
Keep your living area free from unpleasant smellsby connecting a ventilation hose through the Revo’s exhaust vent.
User-Friendly Operation
The Sonic Mighty Revo is designed with extra features that will significantly enhance your smart 3D printing experience.

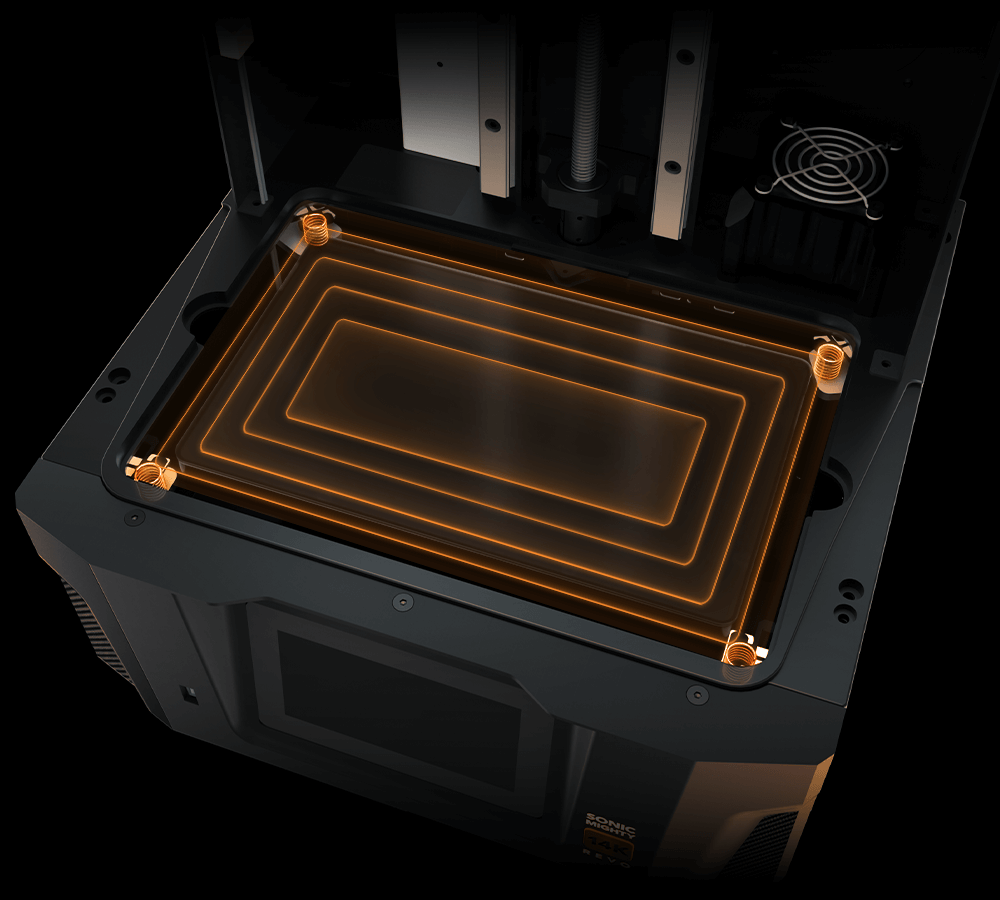

1 Minute LCD Replacement
LCD replacement can be intimidating with lots of screws and cables to handle, but not on the Revo.
Rest assured that when it’s time to ever have your screen replaced, everything is quick and hassle-free.

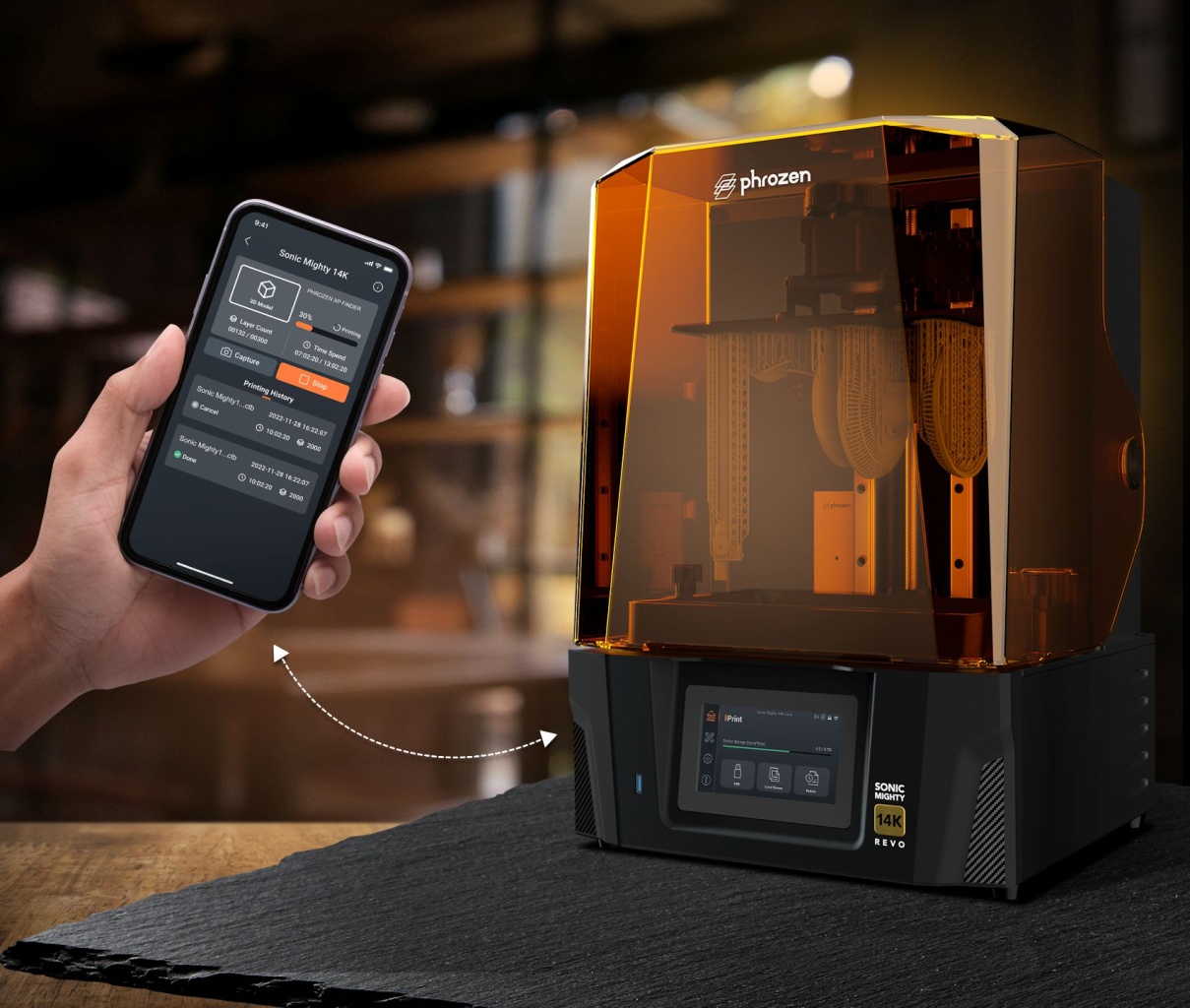

Keep It Under Control, Even on the GO
Always have an eye on your prints whenever and wherever you are with a mobile app made specifically for the Mighty.
Monitor your print on the go or stop printing upon the earliest detection of failure, all from the palm of your hand.
Update the printer firmware to V138 or above and Chitubox version 2.1 or higher to use the time-lapse photography function. The live streaming function will be updated in Q4.
Phrozen GO APP Download
iOS Android
Printed on Sonic Mighty Revo
Spec
- System: Phrozen OS
- Operation: 5" TouchPanel
- Slicer Software: CHITUBOX V1.9.6 and above (or others)
- Compatible File Format: .CTB, .PRZ
- Connectivity: USB | Wi-Fi
- Built-in Memory: 8.0 GB
- Design: Technology Resin 3D Printer - LCD Type
- Light Source: Linear
- ProjectionLED Module
- XY Resolution: 16.8 x 24.8 µm
- Layer Thickness: 0.01-0.30 mm
- Avg. Printing Speed: 450 layer/hr
- Power Requirement: AC100–240V;50–60Hz
- System Power: Max 240 W
- Release Film: nFEP Film
- Printer Size: 35.3 x 34.5 x 51.7 cm
- Print Volume: 22.3 x 12.6 x 23.5 cm
- Printer Weight: 18 kg
