Bigger prints are exciting, but they also raise the stakes. A large model can take many hours, use a lot of resin, and still fail near the end.
A large-format resin 3D printer lets you print bigger models and fuller batches without losing fine detail. However, build size is only part of the choice. To make sure long prints reach the finish line, you also need to look at the print detail, temperature control, resin capacity, maintenance, and monitoring.
So is a large-format printer the right move for you? Start with how you print today.
Do You Need a Large-Format Resin Printer?
A large-format printer makes sense if you need:
- Larger models with fewer splits
- Multiple detailed parts in one batch
- Long or overnight print runs
- Stable prints, even when room temperature changes
- Less time spent refilling resin or changing release film
- A way to check on prints when you are away from the printer
If you are looking for a resin printer for production work, such as commissions, jewelry patterns, or prototypes, output and reliability matter as much as size. If you mostly print single miniatures or small parts now and then, a smaller printer like the mid-size Revo 16K may be enough. Its 14 × 19μm XY resolution is built for fine detail on smaller prints.
.jpg)
Key Specs to Check Before You Buy
Specs are easier to judge when you connect them to your own prints. Here is what to ask for each one.
Build Volume: Can Your Models Print With Fewer Splits?

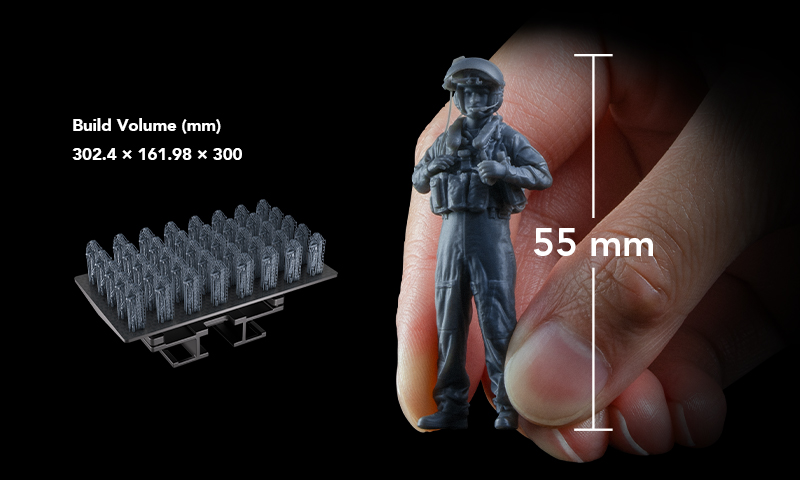

Check whether your largest models fit in one piece, or in fewer parts. Then check how many parts fit on one plate. Fewer splits mean less gluing, sanding, and seam work. Revo MAX has a 302.4 × 161.98 × 300mm build volume, so large models need less splitting and more parts fit in each batch.
Resolution: How Much Detail Do You Get Across the Full Screen?
Do not judge by "16K" alone. A bigger screen spreads the same number of pixels over a larger area, so each pixel gets bigger. Check the XY resolution instead. This tells you the actual pixel size. Revo MAX uses a 14" 16K LCD with 20 × 26μm XY resolution to capture ultra-fine detail. For comparison,the Sonic Mega 8K S has a 15-inch screen and 43µm XY resolution. Revo MAX also supports anti-aliasing for smoother curves and edges. Single print files can be up to 10GB, which helps with large, detailed projects.

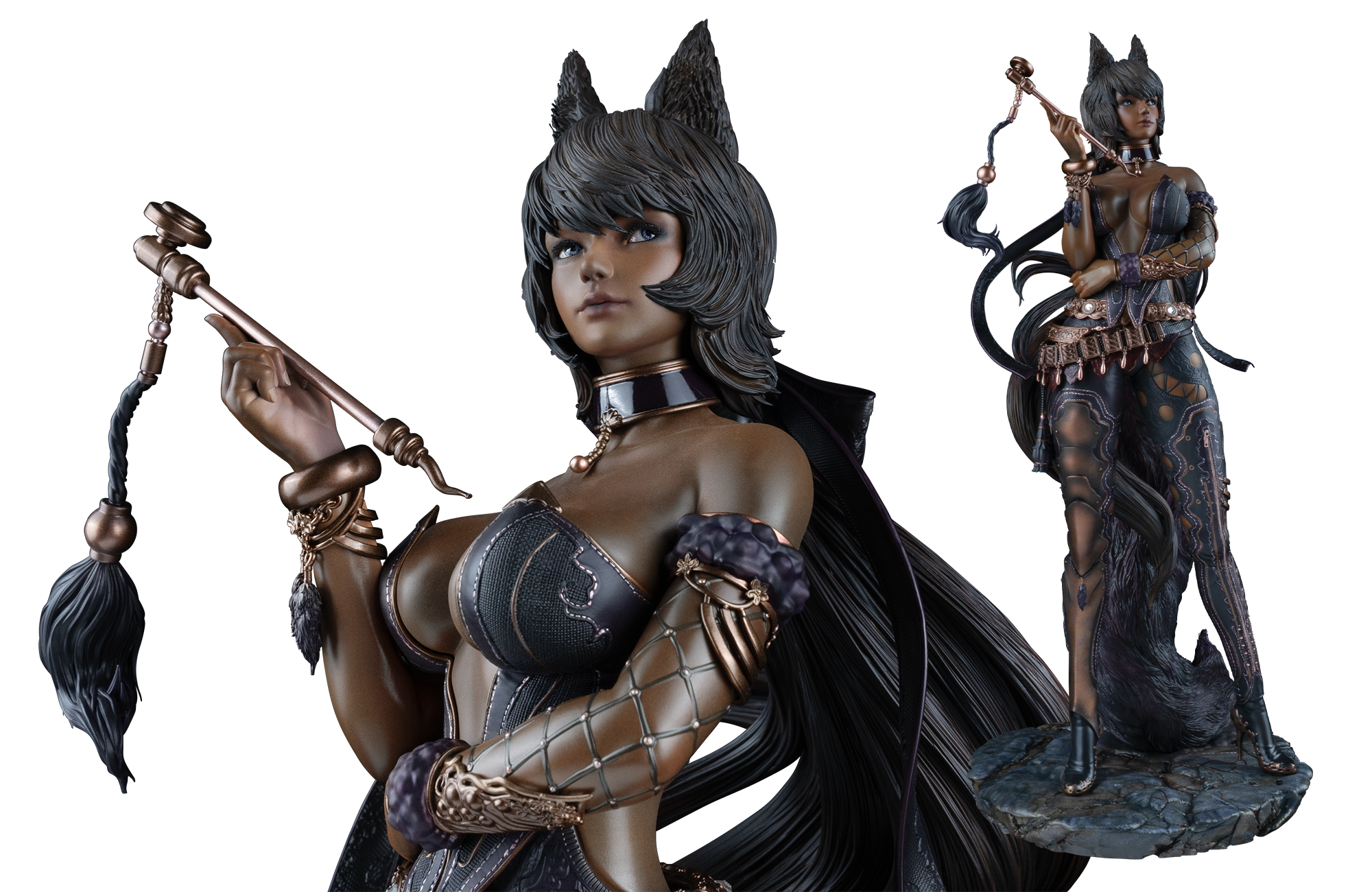

Snow Fox – NYRA, Designed by CASIMIR, Sculpted & Painted by KANDER.
Heating: Does Your Room or Resin Need Stable Temperature?
Resin thickens in the cold. Thick resin flows back slowly after each lift, which can lead to failed layers or prints coming off the plate. Look for a printer that heats the chamber and for thick resins, the resin itself. Revo MAX heats the chamber to 30°C with dual fans. The optional heated resin vat warms the resin directly, which helps with thicker resins.
Vat Capacity: Will a Long Print Run Out of Resin?
Large and overnight prints use a lot of resin. With a small vat, you may have to pause and refill, and every pause is a chance for something to go wrong. How much resin you need depends on model size and how full the plate is, so check the resin volume in your slicer before you start. Revo MAX has a 2L vat that holds about 2.5 bottles in one fill.* One fill covers most long prints, with no extra pumps or tubes to manage.
*Actual bottle count may vary by resin density. The 2.5-bottle estimate is based on Aqua Hyperfine Resin (Graphite Gray).
Release Film: How Long Does a Film Change Take?

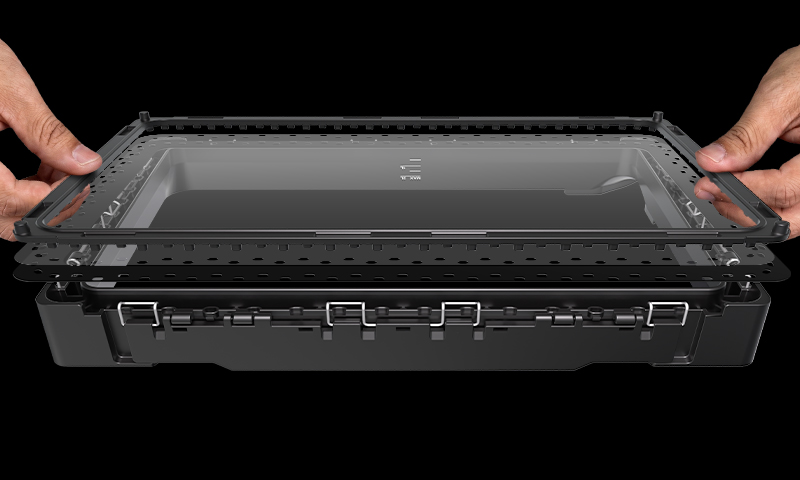

Release film wears out and needs regular replacement. On many printers, changing it means lining up holes and tightening screws, which can take a while. Revo MAX uses quick-release film on all four sides, so a swap takes about 3 minutes. The LCD screen, which also wears out over time, can be swapped quickly too, so you do not have to take the printer apart. Less maintenance, more printing.
.jpg)
Monitoring: Can You Actually See a Failure?

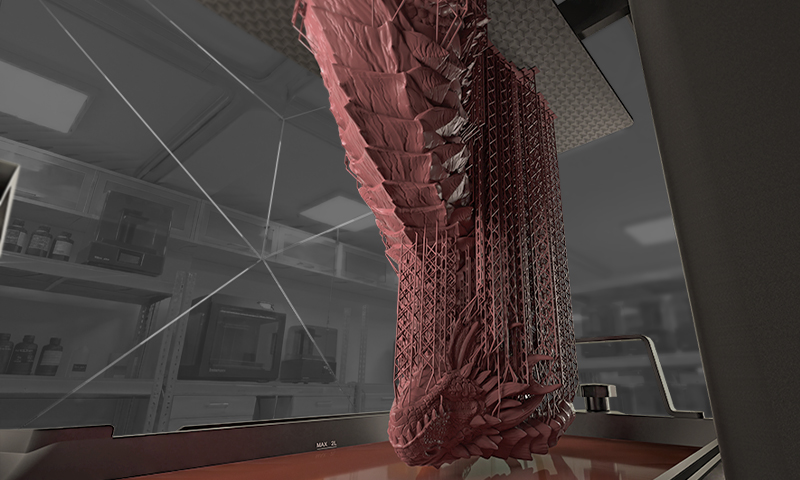

A camera is only useful if it shows you what is happening on the plate.Check the camera angle, image quality, and lighting, and whether the printer alerts you when something goes wrong. Revo MAX uses a 1080p vertical camera with zero-UV LED lighting and AI color correction. It sends alerts for print failures and temperature drops and supports power-loss recovery.
.jpg)
Large-Format vs Standard Desktop Resin Printer
Neither is better for everyone. It depends on what you print and how often.
A standard-size resin printer takes less space, needs less resin to fill, and is easier for occasional use. It is often the best choice for single miniatures and small parts.
A large-format resin printer handles bigger models and fuller batches. It suits long print runs and production work. It also needs more space. Revo MAX measures 520 × 450 × 627mm and weighs 29kg, so plan your workspace first.
Miniatures are a good example. For single pieces, a standard-size printer is often enough. For full armies or large batches, a large-format printer fits more pieces per plate, so you need fewer print runs to finish a set.
|
Use case |
What matters most |
Large-format or standard-size |
Revo MAX relevance |
| Large statues and display models |
Build volume, fewer splits, long-print stability |
Large-format |
Strong fit. Larger build volume and 2L vat support big single-piece prints. |
|
Multi-part batches |
Plate space, consistent results across the plate |
Large-format |
Strong fit. More parts per plate means fewer print runs. |
|
Miniatures |
Fine detail, small pixel size |
Standard-size for single pieces. Large-format for full armies or batches. |
Good for batch runs. For single, very fine pieces, compare with Revo 16K. |
|
Occasional personal use |
Ease of use, lower resin use, space |
Standard-size |
Likely more than you need. A mid-size model such as Revo 16K may fit better. |
| Studio or small-batch production | Uptime, low maintenance, remote monitoring | Large-format | Strong fit. Quick-release parts, power-loss recovery, alerts, and multi-printer app control. |
|
Jewelry patterns and prototypes |
Detail, repeatable results, resin temperature |
Either depending on part size and volume |
Good fit for larger batches, or engineering resins with the optional heated resin vat |
Who Should Consider Revo MAX?
.jpg)

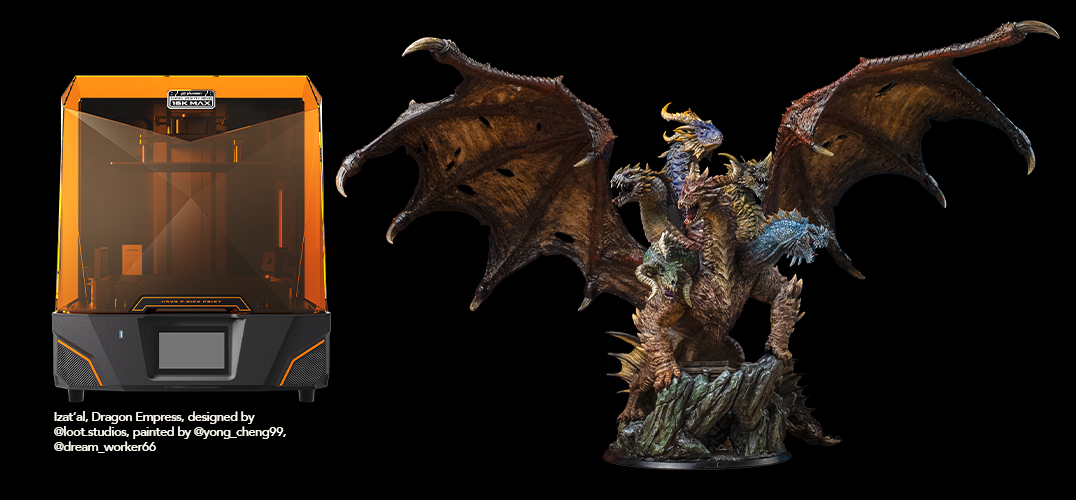

The Sonic Mighty Revo 16K MAX brings everything in the checklist above into one machine. If you already print on a standard-size model printer, Revo MAX is the next step when your jobs outgrow the plate. You get more room for bigger models and fuller batches, with the support you need for long prints.

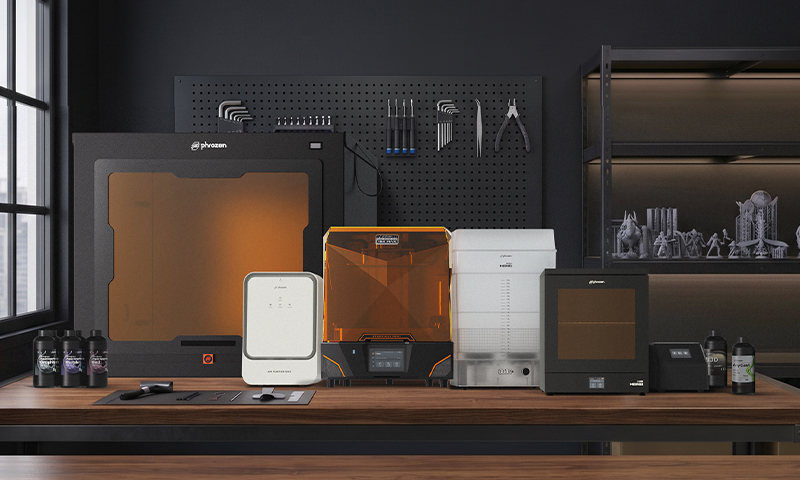

Revo MAX also fits into a full workflow. The build plate goes straight into Wash Mega S for cleaning, and Cure Mega S cures large models evenly. If you run several printers together, the Phrozen GO app lets you manage them all from your phone, so Revo MAX fits easily into a print farm setup.
