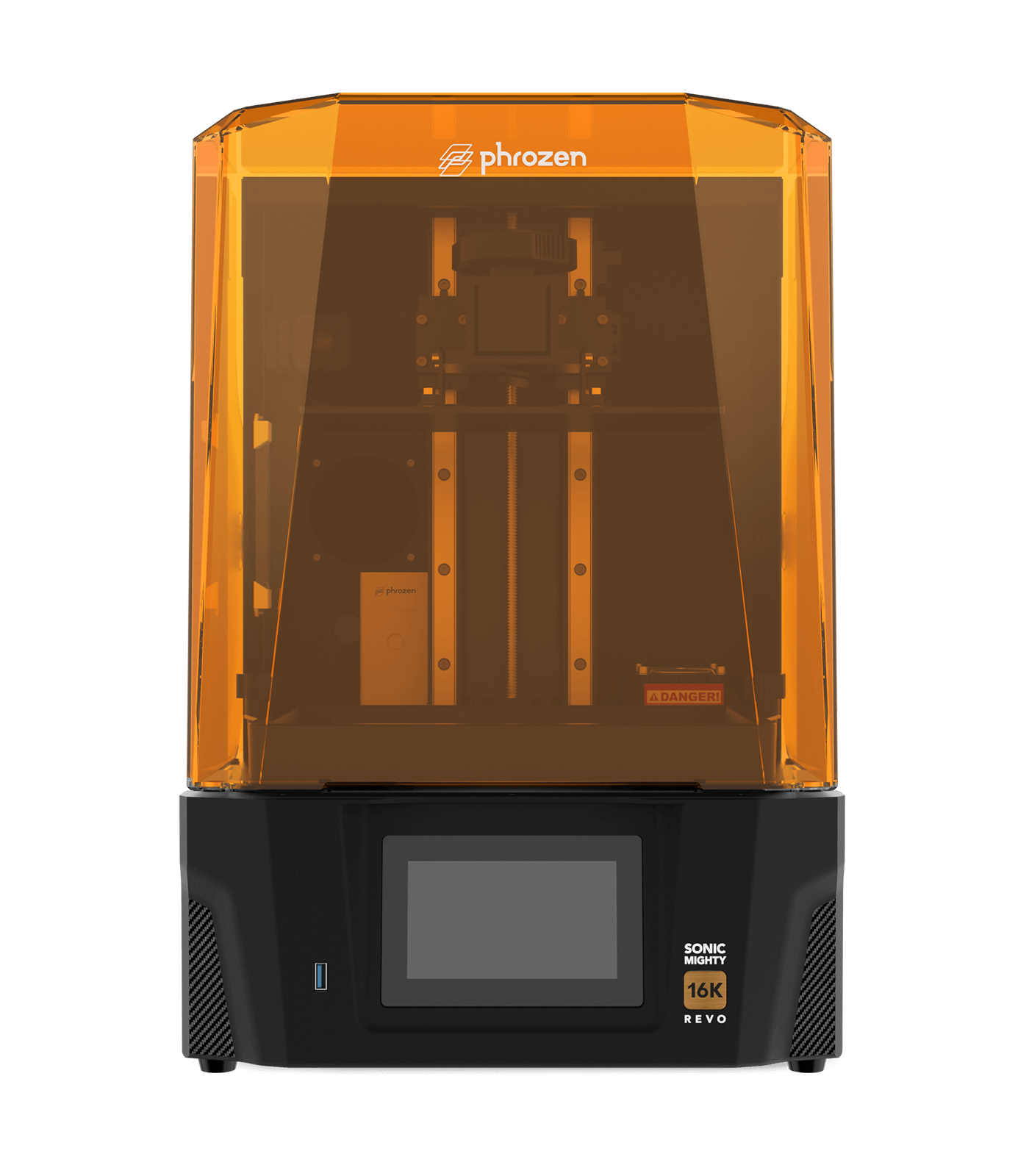

Front view of the Phrozen Sonic Mighty Revo 16K resin 3D printer with a UV cover and front touchscreen display.

Sonic Mighty Revo 16K

The Classic Mighty Revo: Now in 16K

The Classic Mighty Revo: Now in 16K

The Mighty series sets the standard for resin 3D printers, with an aerospace-grade aluminum frame, one of the largest build volumes in its class, and the kind of reliability that 50,000+ users count on—miniature studios, jewelry designers, and small-batch custom workshops. For years, Mighty has been the printer that studios trust to keep running. Building on that track record, the Revo 16K adds 16K resolution (14 × 19 µm), a built-in 30°C chamber heater, dual smart failure detection, and the Phrozen GO App, each upgrade aimed at turning good prints into flawless ones. Every Upgrade, Built for the Final Print.

Sonic Mighty Revo 16K graphic showing 16K resolution, fine resin print detail, and a winged model on black.

16K Resolution: Down to 0.02 mm Detail, Smooth Straight Off the Build Plate

From wing textures to facial expressions and armor engravings on 28 mm tabletop minis, details come out crisp so you spend less time post-processing. A 10.1-inch 16K LCD (15120 × 6230) pairs big-build capability with pinpoint precision throughout a 211.68 × 118.37 × 235 mm build volume.

Sonic Mighty Revo 16K LCD panel with purple light effect illustrating long panel life and heavy-use performance.

2,000+ Hours of LCD Panel Life: Built for Heavy Use

The upgraded LCD delivers higher light transmission, better heat resistance, and improved uniformity for more consistent results print after print. With an average lifespan of 2,000+ hours. That’s roughly 8+ months of printing at 8 hours a day.

Close-up of The Face of Evil resin model printed on Sonic Mighty Revo 16K showing smooth surface detail.

Print Smooth, Sand Less

Layer lines are fine enough to be virtually invisible at arm’s length. Prints come off the build plate looking clean and smooth with minimal post-processing. Even under close inspection, you’ll hardly see any layer lines.

14K vs. 16K: Smaller Pixels, Sharper Prints

Pixel size is reduced by about 36% (16.8 × 24.8 µm → 14 × 19 µm), delivering finer detail, smoother surfaces, and sharper edges on small-scale models.

Comparison graphic of Sonic Mighty Revo 14K and 16K LCD resolution showing smaller pixel area on 16K.

Your Studio's Guardian: Notifies You the Moment Something Goes Wrong

Built-in 30°C chamber heater plus a multipoint pressure-sensing sensor monitors the entire print so you can run prints with more confidence and catch issues early.

Aerospace-Grade Aluminum Frame: Built for Heavy Use with Rock-Solid Stability

Dual linear rails, a ball screw, and a rigid 6000-series aluminum frame work together to keep motion steady and layers consistent. Even on 12+ hour runs, the Z-axis stays exceptionally precise, so tall prints and heavier parts form cleanly layer by layer, with a reduced risk of layer shifting.

Sonic Mighty Revo 16K interior showing dual linear rails, ball screw, and full metal frame for stable printing.

Steady Heater for More Reliable Prints

The built-in heater warms up to 30°C in about 30 minutes and holds a consistent temperature to help reduce print failures in colder spaces like garages or basements, especially during winter.

Built-In Heater
Preheat 30 Minutes Before Printing
Maintain 30°C During Printing
Sonic Mighty Revo 16K built-in heater with circulating airflow for stable resin temperature and clean curing.

Circulating heat keeps temperature stable, helping every layer cure cleanly for flawless results.

Smart Sensors, Stress-Free Prints

Sonic Mighty Revo 16K build plate and leveling system highlighting the assisted leveling feature.

Assisted Leveling

Quickly resolves calibration errors so you can go from unboxing to your first print in as little as 10 minutes.

Sonic Mighty Revo 16K foreign object detection showing paused print and alert for debris on the LCD.

Foreign Object Detection (≥ 4 mm)

If the sensors detect an object ≥ 4 mm on the LCD, the printer automatically pauses to help protect the release film.

Sonic Mighty Revo 16K part detachment alert showing failed print detection and on-screen notification.

Part Detachment Alert (15 Layers)

If peel force reads zero for 15 consecutive layers, you will get an instant notification.* *Triggered when the build plate is no longer submerged in resin.

Hand holding the Phrozen GO app beside the Sonic Mighty Revo 16K for remote print monitoring.

Phrozen GO App: Monitor Your Prints from Your Phone

Real-time status, failure alerts, time-lapse recording, all in one App. Away from your printer? Stay on top of every print, anytime.

iOSAndroid

A Thoughtful Design: Every Detail Covered

The Revo 16K is thoughtfully designed to take care of the details that matter, with practical features like a flip-up lid that saves space, bright internal lighting, activated carbon air filtration, and built-in leak prevention to make resin printing easier, cleaner, and more convenient.

Sonic Mighty Revo 16K design overview showing built-in lighting, air purifier, exhaust vent, and LCD replacement.

From Creative Projects to Small-Batch Production: All on One Machine

Resin miniatures beside a resin bottle and printer, showing Revo 16K detail for miniatures and jewelry prototyping.

Is the Revo 16K worth it for display-quality miniatures and jewelry prototyping?

Yes, if you want crisp micro-detail with minimal post-processing. At 14 × 19 µm, wing textures, facial expressions, and engraved armor details on 28–32 mm figures print sharp and well-defined. For jewelry prototyping, you’ll get crisp filigree and micro-prong details suited for investment casting workflows.

Person unpacking prints in a workshop with Revo 16K printers, showing a reliable print service workflow.

Can I run a reliable print service with the Revo 16K?

Yes. Dual failure detection keeps client prints safe from debris and detachment. Phrozen GO lets you monitor time-sensitive jobs remotely. Assisted leveling means less downtime between orders, and the built-in heater keeps quality consistent across day and night shifts.

Multiple Sonic Mighty Revo 16K printers on studio shelves, showing a multi-printer setup for production work.

Is the Revo 16K a good fit for a studio?

Yes. Phrozen GO lets you monitor multiple machines from one dashboard. The 30°C heater helps keep prints consistent around the clock, and the aerospace-grade 6000-series aluminum frame helps maintain precision during overnight runs. The 211.68 × 118.37 mm build plate can fit 20–30 miniatures per batch, so you can scale output without sacrificing 16K detail.

Sonic Mighty Revo 16K Specs

Printing Volume
W 211.68 x D 118.37 x H 235 mm
Printing Speed
Avg. 450 layers/hr
XY Resolution
14 x 19 μm
Layer Thickness
0.01-0.20 mm
Technology
LCD
Light Source
Linear Projection LED Module
LCD Specification
10.1" 16K Mono LCD (15120 x 6230 pixels)
System
Phrozen OS
Operation
5" Touch Panel
Slicer Software
CHITUBOX (or others)

Sonic Mighty Revo 16K vs Other 16K Printer

Comparison table of Phrozen Sonic Mighty Revo 16K and other 16K 3D printers across key specs.

Choose the Revo 16K if you:

*Need to print tall pieces (busts, helmets, large scenes) — the 235 mm Z-height gives you 15 mm more headroom than the Saturn 4 Ultra, so most single-piece prints clear without splitting the model

*Want long-term frame reliability — 6000-series aerospace aluminum with a clearly labeled alloy grade, backed by the Mighty platform and 50,000+ users across three years

*Run a multi-printer studio — Phrozen GO lets you track every machine’s status in real time from one app

*Already in the Phrozen ecosystem (resins, accessories, GO App) — seamless upgrade with full file compatibility

FAQ

1. How does the Sonic Mighty Revo 16K compare to the previous Sonic Mighty Revo 14K? Is it worth upgrading?

Resolution increases from 14K (16.8 × 24.8 µm) to 16K (14 × 19 µm), delivering about 36% smaller pixel size and noticeably sharper detail. The built-in 30°C heater helps improve cold-weather print reliability. Build volume and file compatibility remain the same. It’s worth upgrading if you want finer miniature detail or more consistent prints in winter conditions.

2. I want to run an online shop selling my own model designs. Can the Mighty Revo 16K deliver commercial-grade print quality?

Yes. At 14 × 19 µm, fine textures come through sharp and well-defined, producing commercial-grade prints with minimal post-processing. Pair it with the Phrozen GO app to monitor multiple printers remotely and keep orders moving.

3. Can I use the Sonic Mighty Revo 16K for jewelry casting?

Yes. At 14 × 19 µm, it captures fine filigree and micro-prong details with clean definition. Pair it with Phrozen AnyCast Castable Resin and take prints straight into your lost-wax casting workflow, reducing (or even eliminating) traditional hand-carving in many cases. Some jewelry studios report results comparable to higher-end machines.

4. How many models fit on the Sonic Mighty Revo 16K build plate?

With a 211.68 × 118.37 × 235 mm build volume, you can typically fit 6–8 hero-scale figures (about 75 mm) or 20–30 28 mm minis per batch, depending on orientation and supports. It also handles cosplay parts and other large single-piece prints.

5. Does the built-in 30°C heater actually make a difference?

Yes, especially in colder spaces. When temperatures drop, resin thickens, which can reduce layer adhesion and lead to failed prints. The built-in 30°C heater helps maintain a stable print environment in garages, basements, and unheated workshops.

6. I'm new to resin printing — is the Revo 16K beginner-friendly?

Yes. Assisted leveling comes factory-calibrated out of the box. Pour resin, tap Start, and you can go from unboxing to your first print in as little as 10 minutes. The enclosed build chamber helps reduce resin odor, so it works well for home use.

7. How long does the Sonic Mighty Revo 16K LCD last?

LCD lifespan is rated at 2,000+ hours. At 8 hours of daily printing, that's over 8 months of continuous use. The LCD is a consumable, and replacement screens are available from the Phrozen store. Replacement takes about a minute.

8. What resin works best with the Sonic Mighty Revo 16K?

- For the sharpest 16K detail: Phrozen Aqua Hyperfine - Versatile printing: Phrozen Aqua-Gray 8K - Jewelry casting: Phrozen AnyCast Castable Resin - Table-top gaming miniature: Phrozen RPG Resin - Compatibility: Works with most third-party 405 nm UV resins

9. What else do I need besides the printer to start printing?

Resin (choose based on your application) is the main extra you’ll need. For easier cleanup and proper post-curing, we recommend a Phrozen Wash & Cure Kit to help improve strength and long-term durability. An LCD screen protector is also recommended to reduce the risk of damage and help extend LCD life. Picking up these accessories together can make setup smoother. If budget allows, consider adding a Phrozen Air Purifier Max and a ventilated enclosure to help reduce resin odor and keep your workspace fresh.

10. What are the spec differences between the Sonic Mighty Revo 16K and the Elegoo Saturn 4 Ultra 16K?

Both offer 16K resolution at 14 × 19 µm, but the Revo 16K adds 15 mm of extra Z-height (235 mm vs. 220 mm) and a 6000-series aluminum frame with a clearly specified alloy grade.
