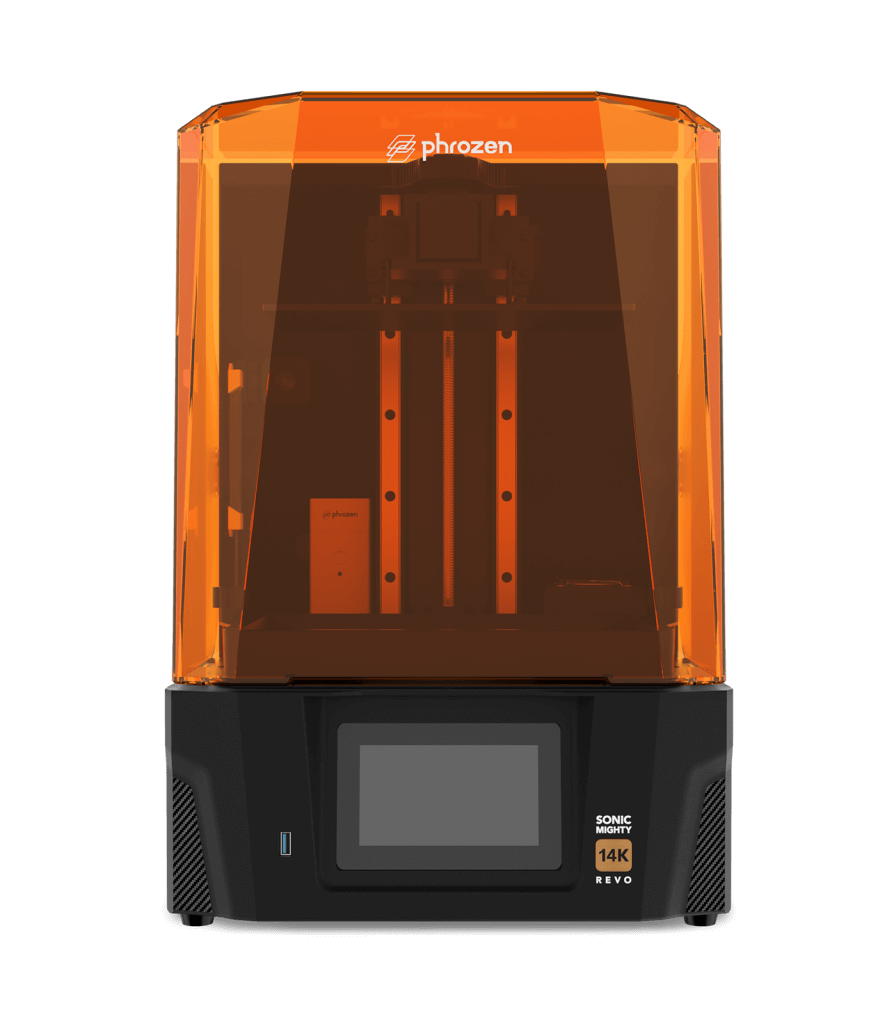

Phrozen Sonic Mighty Revo: 10インチ 14K LCD 3Dプリンター
購入するにはストアサイトにアクセスしてください!
Sonic Mighty Revo: An Extra Layer of Security for a Successful Print
Seamless Mobile Integration and Patented Smart Sensors
Have an Extra Eye on Your Printer

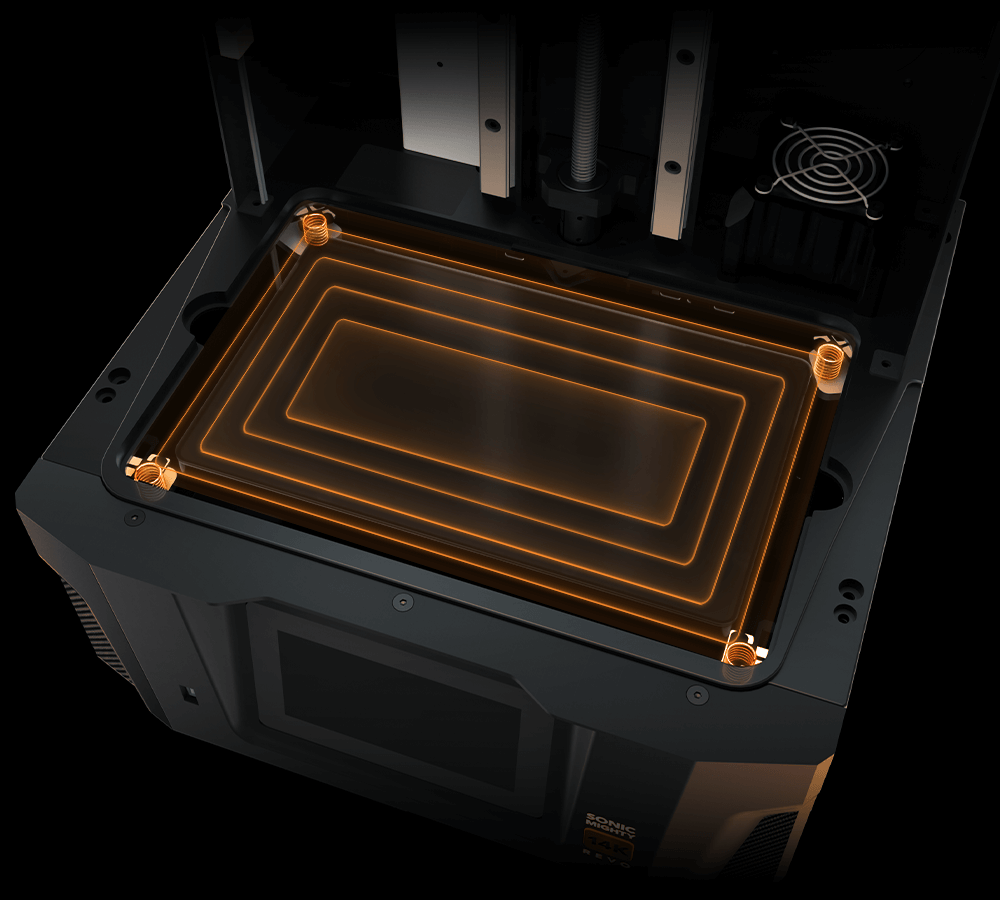

Experience the new Revo detection system thanks to our patented 3-point piezoelectric sensor. Integrated seamlessly with the Phrozen GO App, it’s connected 24/7 to your phone for timely monitoring.
● Smart Residue Detection
● Smart Failure Detection
● 24/7 Mobile Connection

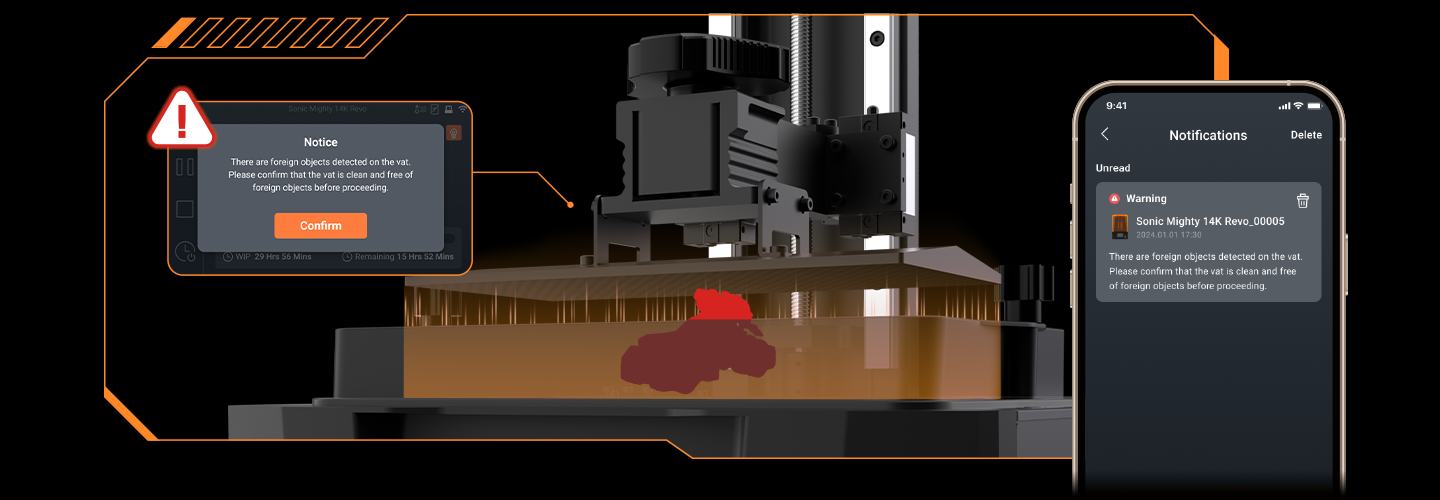

| Smart Residue Detection |
Avoid breaking your LCD screen due to cured particles in the vat.
The sensor will cue the printer to stop printing once it detects any foreign objects between the building plate and the release film upon its initial descent.*
*The sensors will detect objects ≥ 4mm.

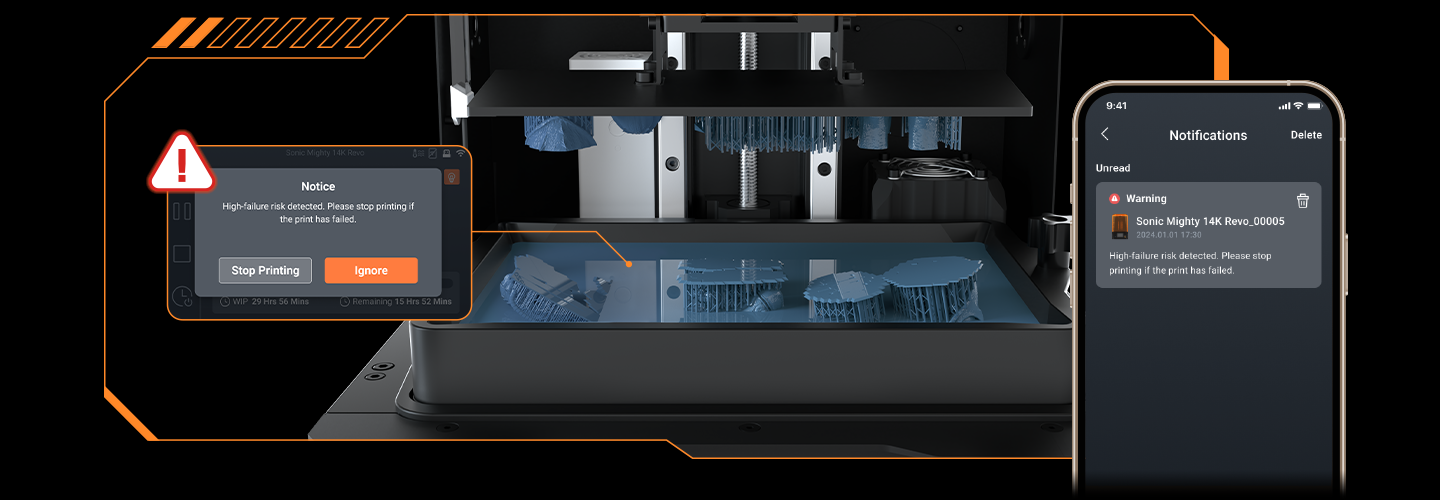

| Smart Failure Detection |
Get notified of possible failure early in both your printer and your phone (through the Phrozen GO App) when the sensors detect abnormalities during printing.
*Notifications will be triggered once sensors detect the complete absence of peeling force for 15 continuous layers, after the building plate is no longer submerged in resin.

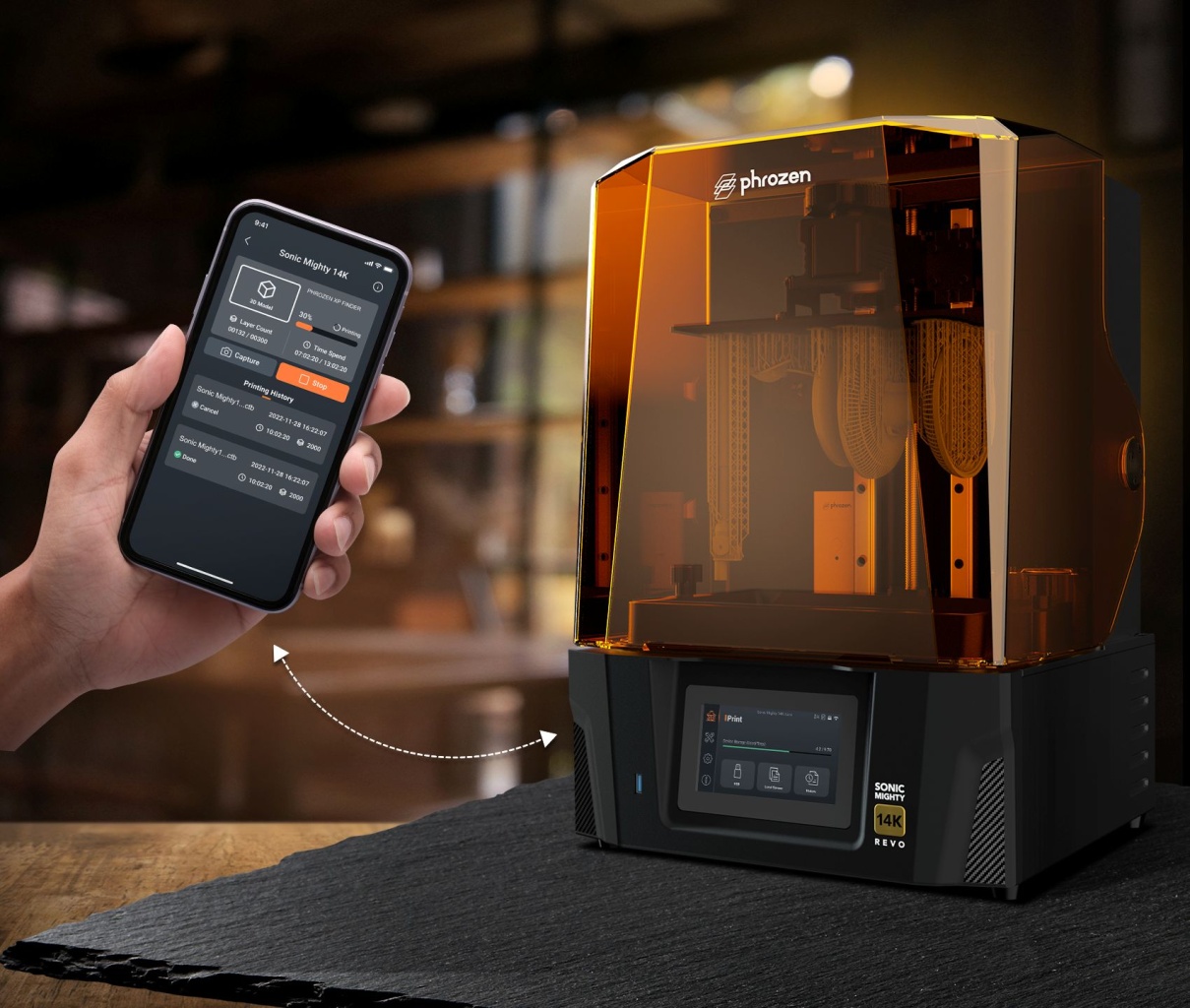

| Keep It Under Control, Even on the GO |
Always have an eye on your prints whenever and wherever you are with a mobile app made specifically for the Mighty.Monitor your print on the go or stop printing upon the earliest detection of failure, all from the palm of your hand.
Timelapse video will soon be available, while the live streaming function will be updated in Q4.
Performance Enhancement
Avoid the hassle that comes with trial and error of manual adjustment and environmental changes
thanks to Revo’s performance enhancement features.

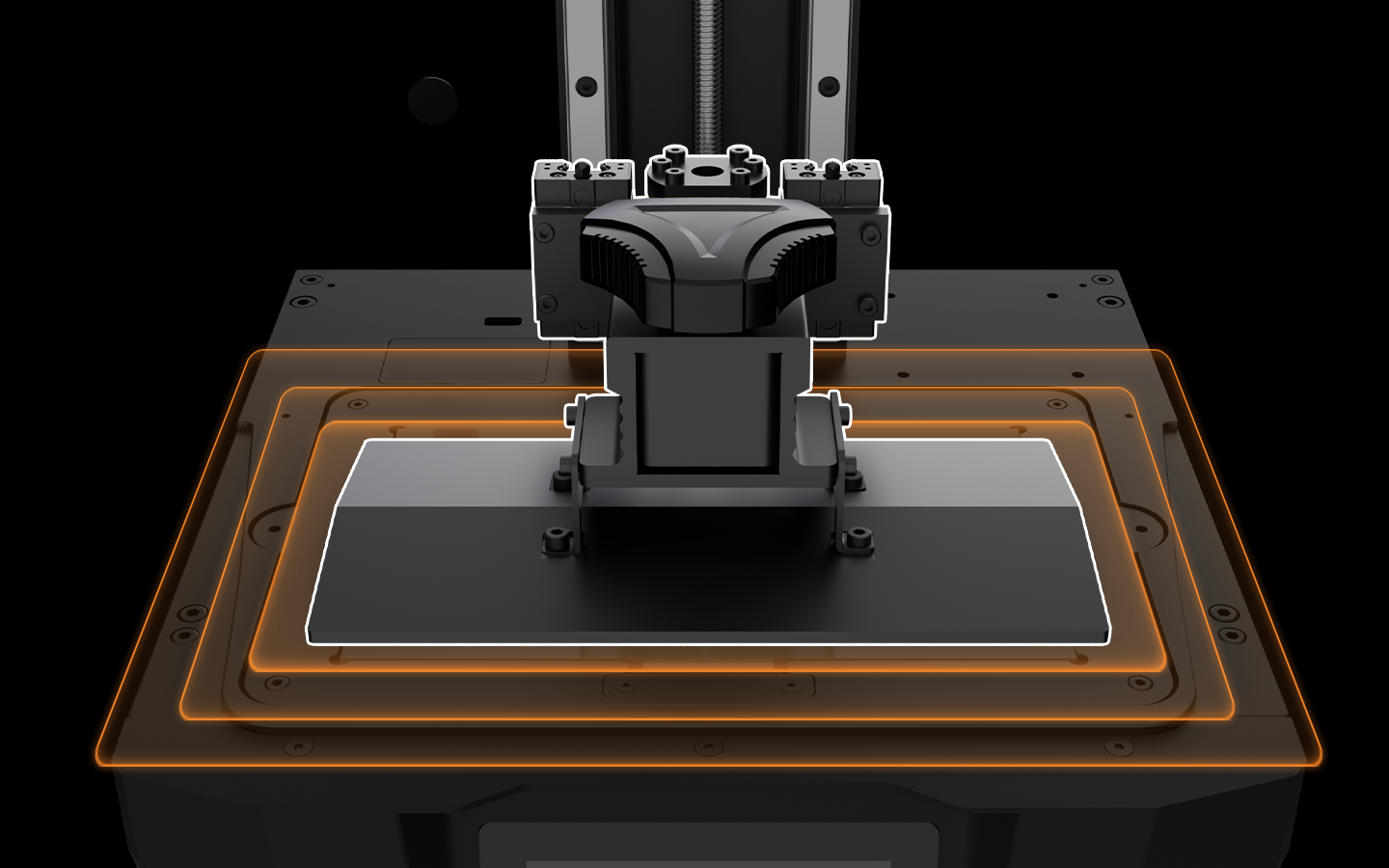

Auto-Leveling
Calibrate the Z-axis with just a press of a single button thanks to its automatic zero-point detection sensor. Always start right without the hassle.

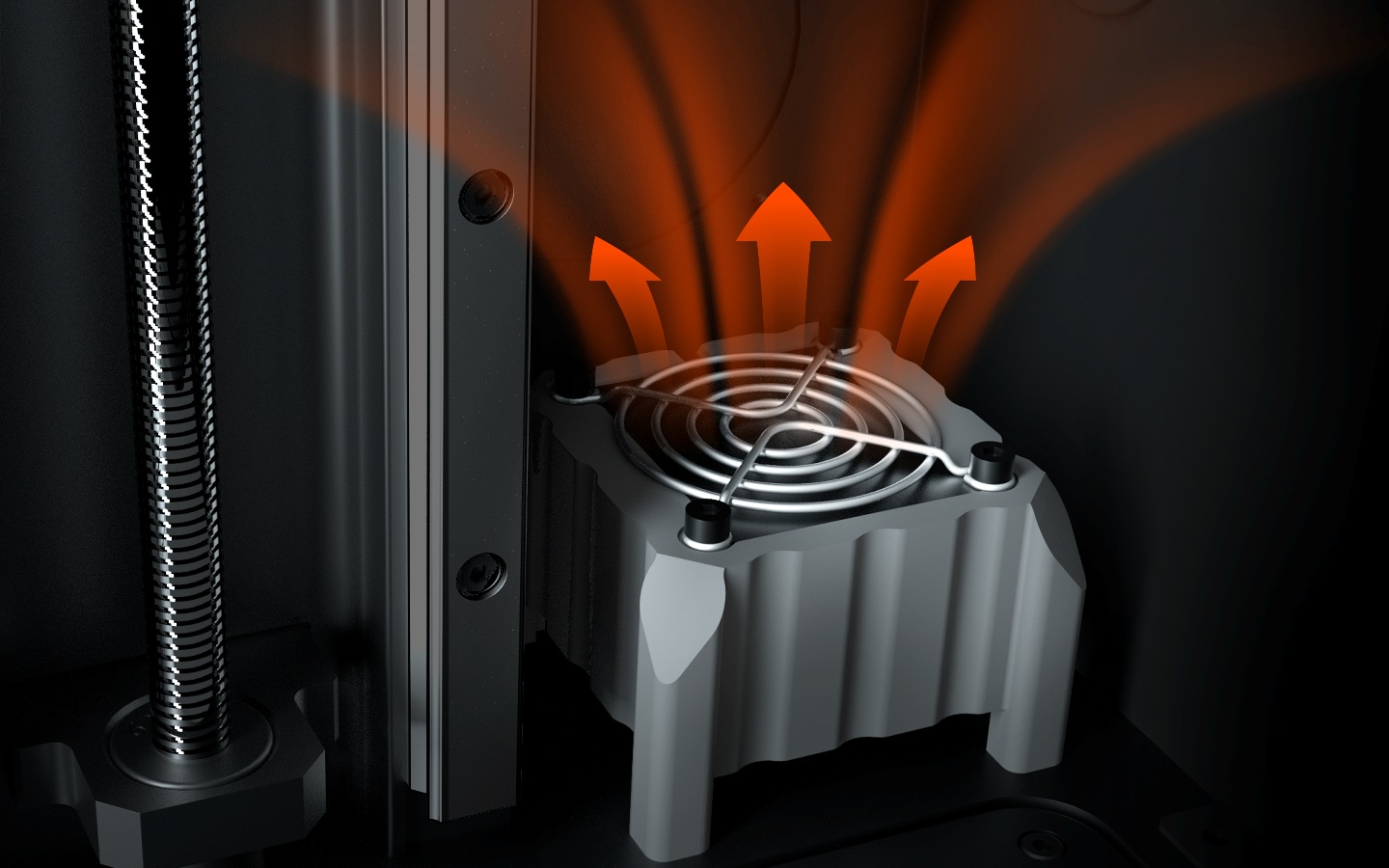

Built-in Heater
Resin reaction speed decreases by 30-60% with every 10°celcius drop due to increased viscosity, so a heater enhances success rate by maintaining the most optimum resin temperature.
Auto-Leveling
Calibrate the z-axis with just a press of a single button thanks to its automatic zero-point detection sensor. Always start right without the hassle.
Built-in Heater
Do you know that with every 10°celcius drop, resin reaction speed decreases by 30-60% due to increased viscosity? A heater enhances success rate by keeping your resin printing at the most optimum temperature and viscosity.
Reduce Smelly Fumes, Breathe Cleaner Air
Pungent resin odor in your living area can be annoying.
Revo is equipped with an air purifier and built-in exhaust vent, covering your printing needs and ensuring a more enjoyable setting.

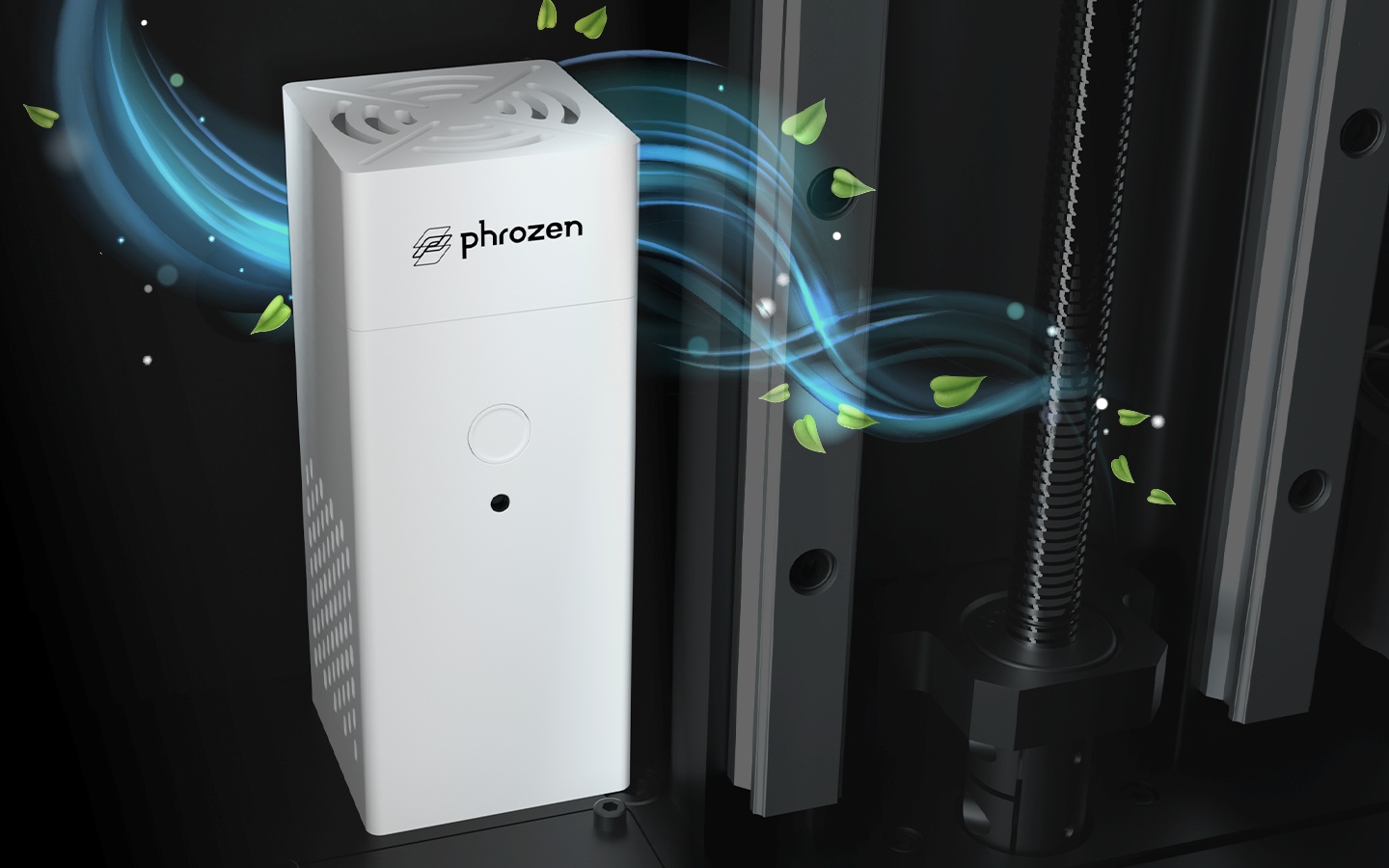

Air Purifier
Adsorb resin fumes directly within the printing enclosure, ensuring a cleaner workspace and elevating your overall printing experience.

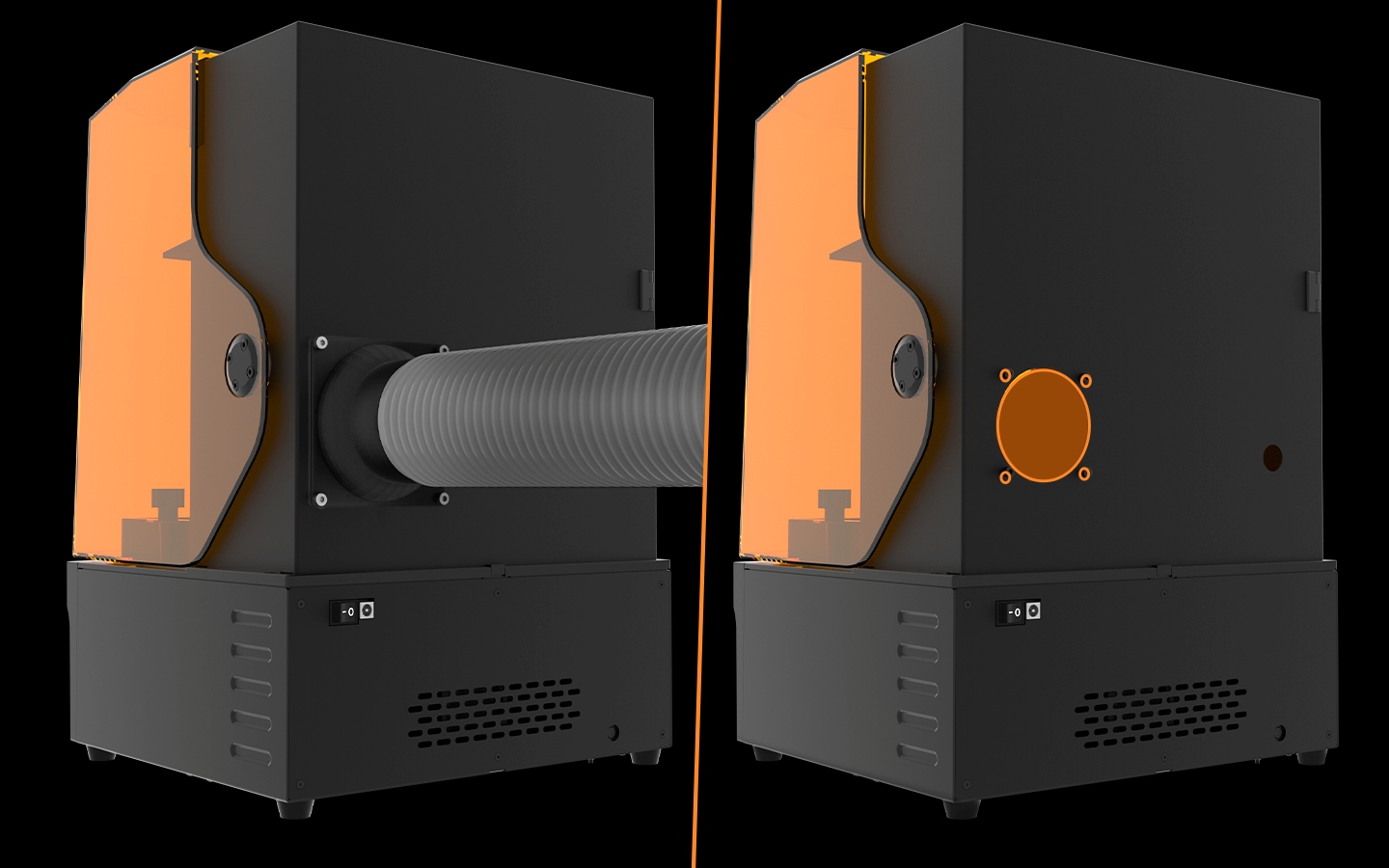

Built-In Exhaust Vent
Keep your living area free from unpleasant smells
by connecting a ventilation hose through the Revo’s exhaust vent.
Built-In Air Purifier
Adsorb resin fumes directly within the printing enclosure, preventing the leak of odor.
Built-In Exhaust Vent
Keep your living area free from toxic fumes by
connecting a ventilation hose through the Revo’s exhaust vent.
User-Friendly Operation
The Sonic Mighty Revo is designed with extra features that will significantly enhance your smart 3D printing experience.
1 Minute LCD Replacement
LCD replacement can be intimidating with lots of screws and cables to handle, but not on the Revo.
Rest assured that when it’s time to ever have your screen replaced, everything is quick and hassle-free.

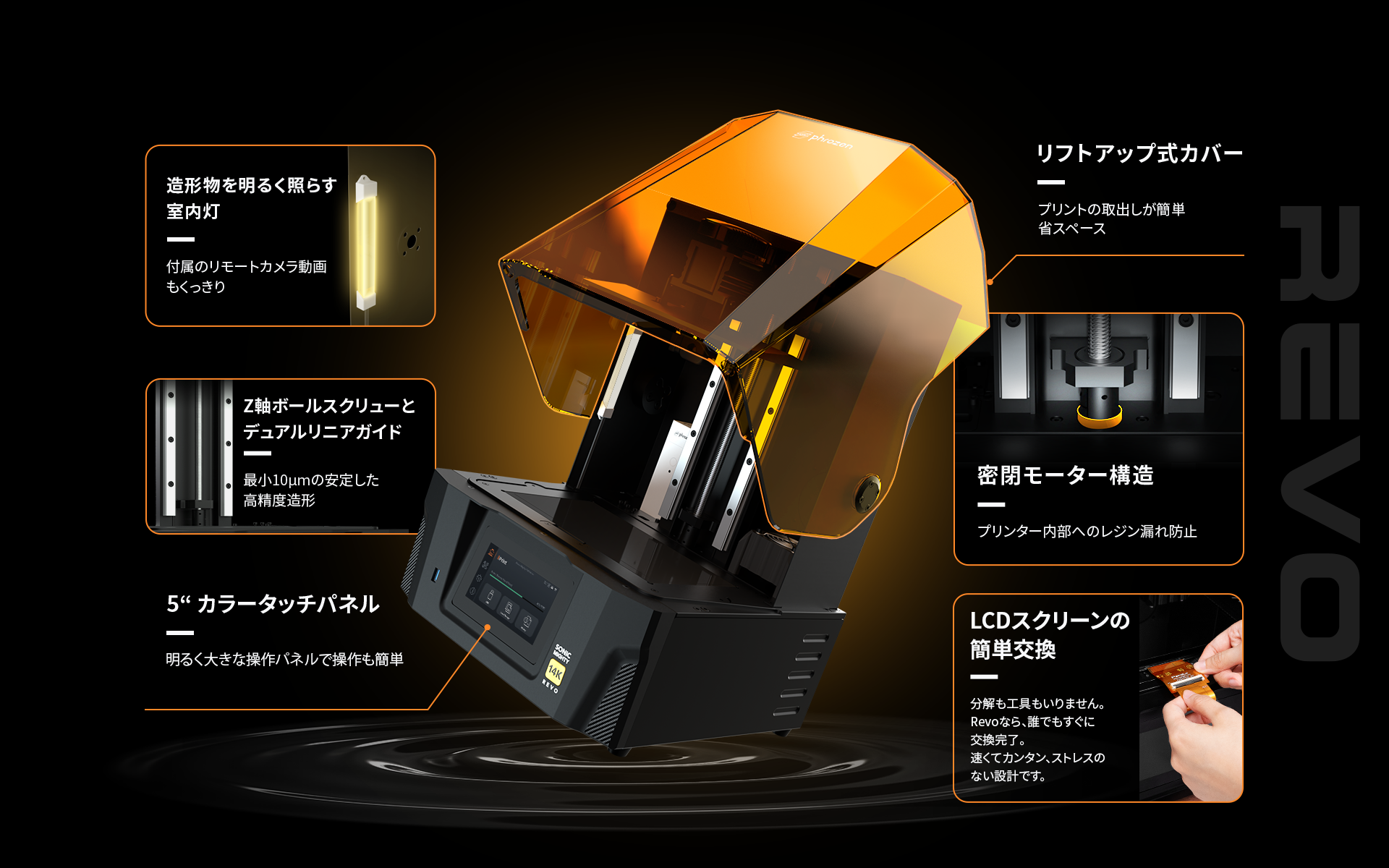

Sharper | Clearer | Smoother
The Revo Experience
Boasting the 10.1” screen of Phrozen’s Mighty Series size you are familiar with, the Sonic Mighty Revo takes your prints to new heights
with a more uniformed light intensity and details up to 16.8 μm x 24.8 μm, almost five times thinner than your typical A4 paper.
Specifically formulated to enhance surface smoothness and detail precision on printer resolutions higher than 8K,
the Aqua Hyperfine Resin is here to bring out the best of Sonic Mighty Revo.

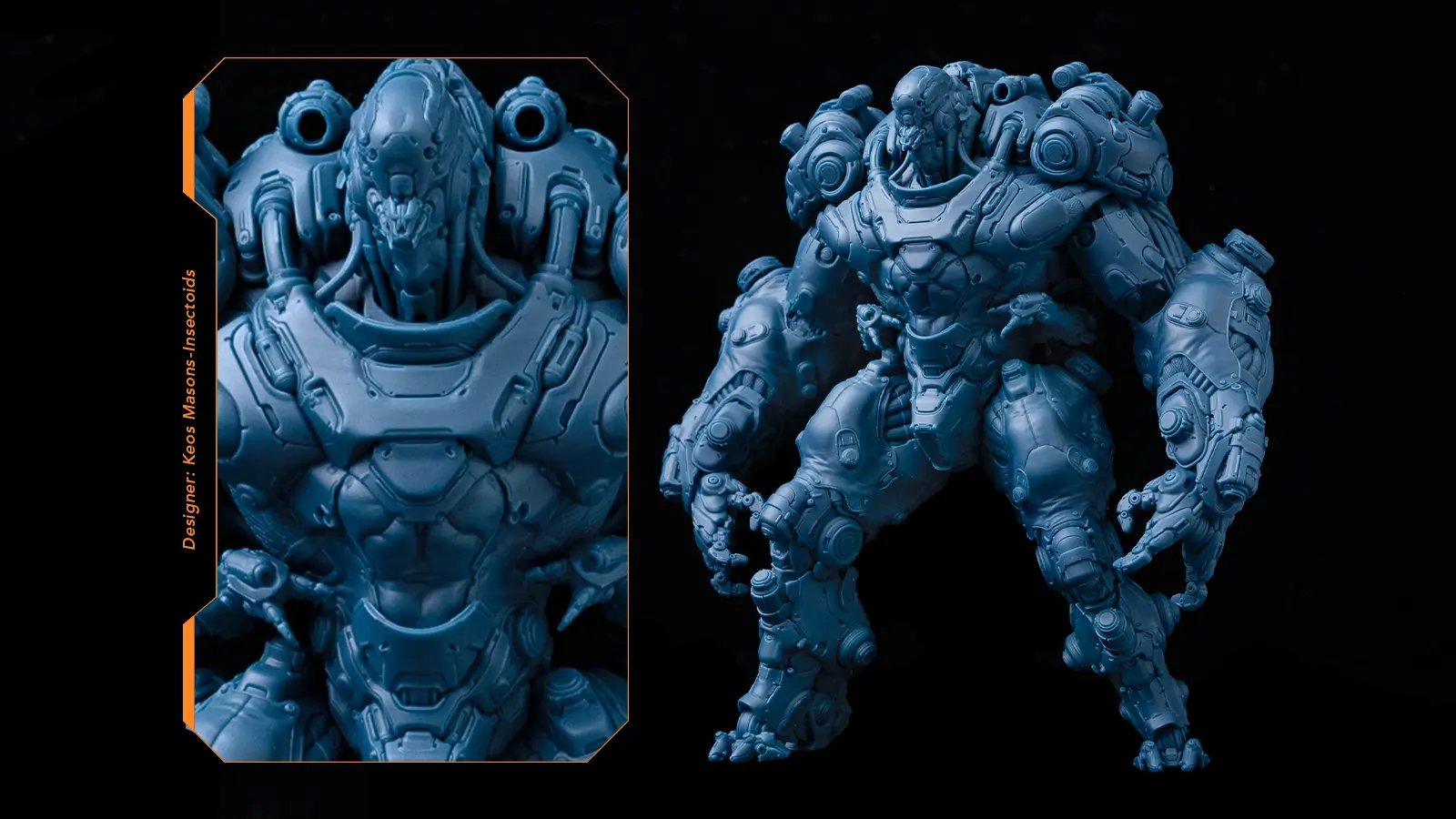

Printed on Sonic Mighty Revo
Behold the Unmatched Details of Aqua Hyperfine Resin!

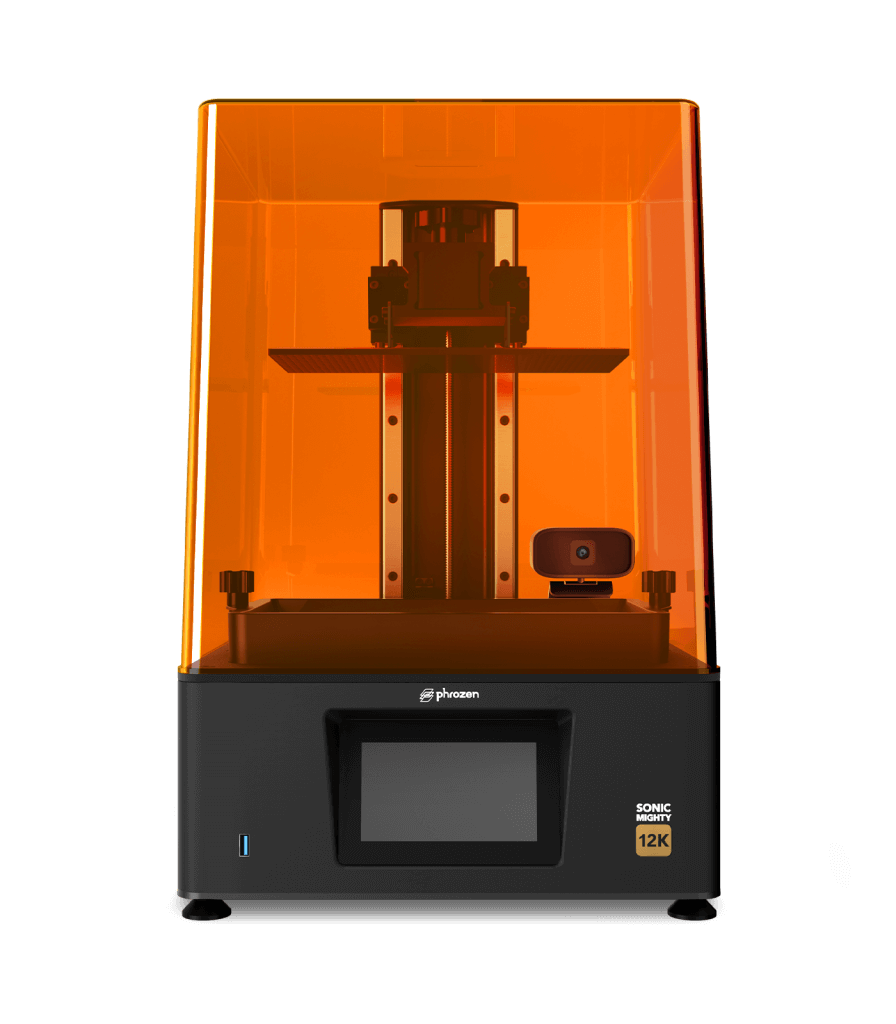

Find the Perfect Mighty for You
| Sonic Mighty 8K | Sonic Mighty 12K | Sonic Mighty Revo | |
|---|---|---|---|
| Heater | X | X | ✓ |
| Plug-in Air Purifer | X | X | ✓ |
| Auto Leveling | X | X | ✓ |
| Printer Size | 33.7 x 33.7 x 51.6 cm | 35.3 x 34.5 x 51.7 cm | |
| Print Volume | 21.8 x 12.3 x 23.5 cm | 22.3 x 12.6 x 23.5 cm | |
| XY Resolution | 28 µm | 19 µm x 24 μm | 16.8 µm x 24.8 µm |
| Print Speed | 400 layers/hr | 400 layers/hr | 450 layers/hr |
| Rail | Dual Linear Guide (Lead Screw) |
Dual Linear Guide (Lead Screw) |
Dual Linear Guide (Ball Screws) |
| Operation | 5" Touch Panel | ||
| Release Film | nFEP Film | ||
| File Format | .CTB | .CTB, .PRZ | .CTB, .PRZ |
| Storage | 3.5 GB | 8 GB | 8 GB |
Sonic Mighty Revo: A Smarter Printer for a Smarter Workflow
Seamless Mobile Integration and Patented Smart Sensors
Sonic Mighty Revo: A Smarter Printer for a Smarter Workflow
Seamless Mobile Integration and Patented Smart Sensors
Skip the Hassle, Say Bye-Bye to the Manual
Experience the most reliably accurate detection system thanks to our patented 3-point piezoelectric sensor.
Integrated seamlessly with the Phrozen GO App,it’s connected 24/7 to your phone for timely monitoring.
● Smart Residue Detection
● Smart Failure Detection
● 24/7 Mobile Connection
| Smart Residue Detection |
Avoid breaking your LCD screen due to cured particles in the vat. The sensor will cue the printer to stop printing
once it detects any foreign objects between the building plate and the release film upon the first layer of printing.
| Smart Failure Detection |
Promptly detect any possible abnormalities during the printing process through your Phrozen GO app
as an additional layer of security to ensure a successful print.
| Keep It Under Control, Even on the GO |
Always have an eye on your prints whenever and wherever you are with a mobile app made specifically for the Mighty.
Monitor your print on the go or stop printing upon the earliest detection of failure, all from the palm of your hand.
Visit Our Stores
For Special Launch Packs With Free Shipping!
Available only during the pre-order period (Feb 16–22), enjoy special launch packs curated just for you.
For US customers, get the new Sonic Mighty Revo and 2 free Aqua Hyperfine Resin only for $999.99 with free shipping.
Please note that US, EU, and Global Stores will have varying packages, prices, and shipping fees.
Performance Enhancement
Avoid the hassle that comes with trial and error of manual adjustment and environmental changes
thanks to Revo’s performance enhancement features.
Auto-Leveling
Calibrate the Z-axis with just a press of a single button thanks to its automatic zero-point detection sensor. Always start right without the hassle.
*Manual adjustment may be needed if the printer is moved or frequently fails to print.
Built-in Heater
Resin reaction speed decreases by 30-60% with every 10°celcius drop due to increased viscosity, so a heater enhances success rate by maintaining the most optimum resin temperature.
Auto-Leveling
Calibrate the z-axis with just a press of a single button thanks to its automatic zero-point detection sensor. Always start right without the hassle.
Built-in Heater
Do you know that with every 10°celcius drop, resin reaction speed decreases by 30-60% due to increased viscosity? A heater enhances success rate by keeping your resin printing at the most optimum temperature and viscosity.
Reduce Smelly Fumes, Breathe Cleaner Air
Pungent resin odor in your living area can be annoying.
Revo is equipped with an air purifier and built-in exhaust vent, covering your printing needs and ensuring a more enjoyable setting.
Air Purifier
Adsorb resin fumes directly within the printing enclosure, ensuring a cleaner workspace and elevating your overall printing experience.
Built-In Exhaust Vent
Keep your living area free from unpleasant smells
by connecting a ventilation hose through the Revo’s exhaust vent.
Built-In Air Purifier
Adsorb resin fumes directly within the printing enclosure, preventing the leak of odor.
Built-In Exhaust Vent
Keep your living area free from toxic fumes by
connecting a ventilation hose through the Revo’s exhaust vent.
User-Friendly Operation
The Sonic Mighty Revo is designed with extra features that will significantly enhance your smart 3D printing experience.
1 Minute LCD Replacement
LCD replacement can be intimidating with lots of screws and cables to handle, but not on the Revo.
Rest assured that when it’s time to ever have your screen replaced, everything is quick and hassle-free.
Sharper | Clearer | Smoother
The Revo Experience
Boasting the 10.1” screen of Phrozen’s Mighty Series size you are familiar with, the Sonic Mighty Revo takes your prints to new heights
with a more uniformed light intensity and details up to 16.8 μm x 24.8 μm, almost five times thinner than your typical A4 paper.
Specifically formulated to enhance surface smoothness and detail precision on printer resolutions higher than 8K,
the Aqua Hyperfine Resin is here to bring out the best of Sonic Mighty Revo.
Printed on Sonic Mighty Revo
Behold the Unmatched Details of Aqua Hyperfine Resin!
Find the Perfect Mighty for You
| Sonic Mighty 8K | Sonic Mighty 12K | Sonic Mighty Revo | |
|---|---|---|---|
| Heater | X | X | ✓ |
| Plug-in Air Purifer | X | X | ✓ |
| Auto Leveling | X | X | ✓ |
| Printer Size | 33.7 x 33.7 x 51.6 cm | 35.3 x 34.5 x 51.7 cm | |
| Print Volume | 21.8 x 12.3 x 23.5 cm | 22.3 x 12.6 x 23.5 cm | |
| XY Resolution | 28 µm | 19 µm x 24 μm | 16.8 µm x 24.8 µm |
| Print Speed | 400 layers/hr | 400 layers/hr | 450 layers/hr |
| Rail | Dual Linear Guide (Lead Screw) |
Dual Linear Guide (Lead Screw) |
Dual Linear Guide (Ball Screws) |
| Operation | 5" Touch Panel | ||
| Release Film | nFEP Film | ||
| File Format | .CTB | .CTB, .PRZ | .CTB, .PRZ |
| Storage | Built-in Memory | Built-in Memory | 8 GB |
Disclamier
*Estimated time of departure: Late April.
*The 15% OFF discount for add-ons can not be applied by adding the product separately to the shopping cart. Please make sure to add the product together on the bundling system.
*Sonic Mighty Revo pre-order bundle with free shipping is only available for selected countries/regions: US, JP, HK, SG, MO, DE, FR, IT, ES, PL, CZ, UK, and AU. If your countries are not listed, please check our reseller's page.
*All the points (including member points) that are received after the order is completed will be deducted from your account if you cancel the order; Member points and benefits can’t be combined with other discount codes and promotions.
*For United States customers, please visit our Phrozen US Store site to place an order. Depending on your location, additional State and Local Sales Tax will be applied during checkout.
*For European customers located in DE, FR, IT, ES, PL, and CZ (excluding the UK), please visit our Phrozen EU Store site to place an order. Prices listed on the product page are subject to ~21% VAT and will be charged together during checkout for custom clearance. Please note that final prices may vary based on your local VAT.
*For UK customers, please visit our Phrozen Global Store Site to place an order. Prices listed on the product page are subject to 20% VAT (NOTE: this VAT only counts for products sent via local delivery) and will be charged together during checkout for customs clearance. Please note that final prices may vary based on your local VAT. Additional Tax for other products in the bundle that are sent via air freight will be collected by logistics during the shipping process.
*For Australian customers, please visit our Phrozen Global Store Site to place an order. The price listed on the product page does not include GST (Goods and services tax). Due to logistics challenges, bundle content might differ.
*For JP, HK, SG, and MO Customers, please visit our Phrozen Global Store Site to place an order. Shipment to this region is only available via air freight. There will be no additional fee at the checkout page. VAT will be collected by logistics during the shipping process.
*Items purchased together might be delivered separately with varying lead times due to various warehouse areas and other considerations.
*Shipping for other products outside of the Sonic Mighty Revo pre-order bundle will be calculated separately during checkout.
*Sonic Mighty Revo compatible with Phrozen Pump & Fill - Automated Resin Feeder.
*Phrozen reserves the right, at its sole discretion, to change, modify, add, or remove portions of these campaigns, at any time.
利点
- 面倒な手間を省き、手動操作にさよなら：特許取得済みの3点圧電センサーを使用した、最も信頼性が高く正確な検出システムを体験してください。
- スマート残留異物検出: 最初のレイヤーの硬化時に異物を検出すると印刷を停止するように通知することで、LCDの損傷を防ぎます。
- スマートな障害検出: Sonic Mighty Revoは、プリントプロセス中に発生する可能性のある異常を即座に検出し、プリントが成功するように迅速に通知します。
- 外出中でもコントロール可能: 外出先でプリントを監視したり、障害を早期に検出してプリントを停止したり、すべて手のひらから行えます。
モデルクレジット @blackforge_games
仕様
- システム: Phrozen OS
- 操作: 5インチタッチパネル
- スライサーソフトウェア: CHITUBOX V1.9.6 以上 (またはその他)
- 接続: USB | Wi-Fi
- 内蔵メモリ: 8.0 GB
- 技術:レジン 3D プリンター - LCD タイプ
- 光源:リニアプロジェクションLEDモジュール
- XY解像度: 16.8µm x 24.8µm
- 積層ピッチ: 0.01 - 0.30 mm
- 平均プリント速度: 450 層/時
- リリースフィルム: nFEPフィルム
- 対応ファイル形式: CTB / PRZ
- 電源: 100～240V AC、50～60Hz
- 本体サイズ: 35.3 × 34.5 × 51.7 cm
- 造形サイズ: 22.3 x 12.6 x 23.5 cm
- 本体重量: 18 kg
