Cleanup

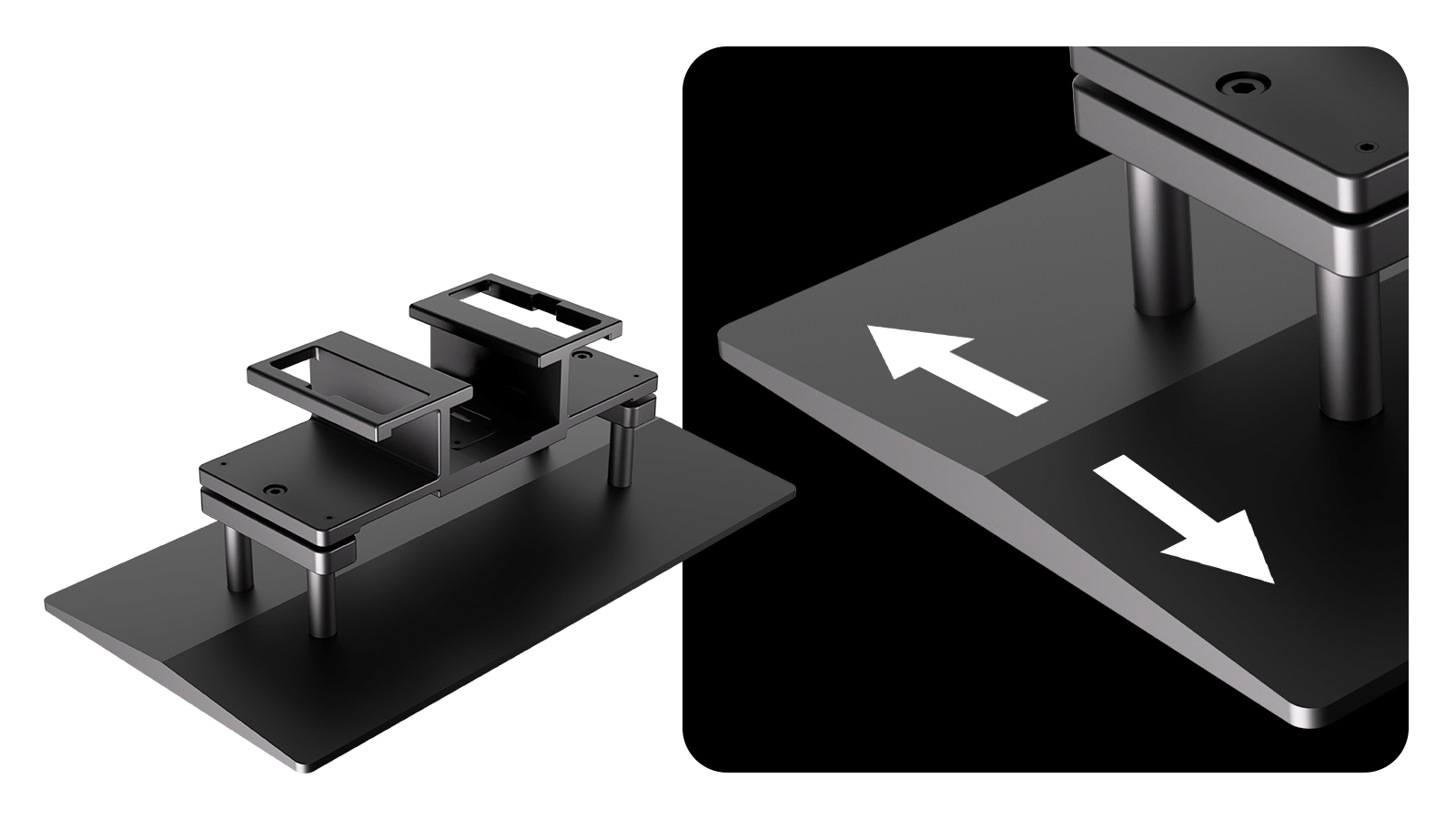

Sloped Design, Faster Cleanup
The sloped surface helps resin flow back during printing, leaving less resin on top of the build plate afterward. The build plate also fits directly into the Mega Wash S for fast, automated cleaning.

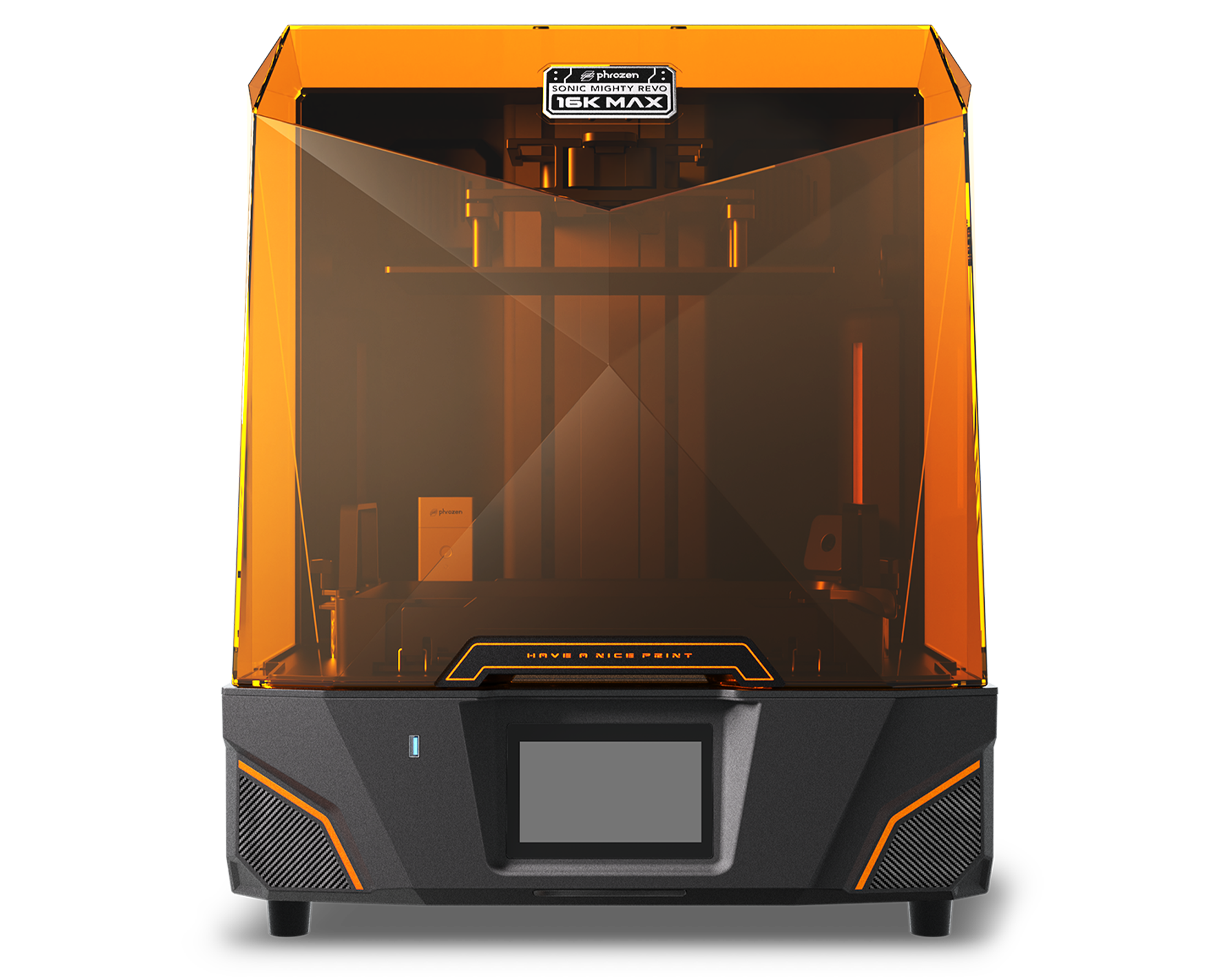

Sonic Mighty Revo 16K MAX
Print Big Without Hassle
14" Build Volume
Ultra-Fine Details
Dual Heating System
Quick-Swap Release Film
14" Build Volume
Ultra-Fine Details
Dual Heating System
Quick-Swap Release Film

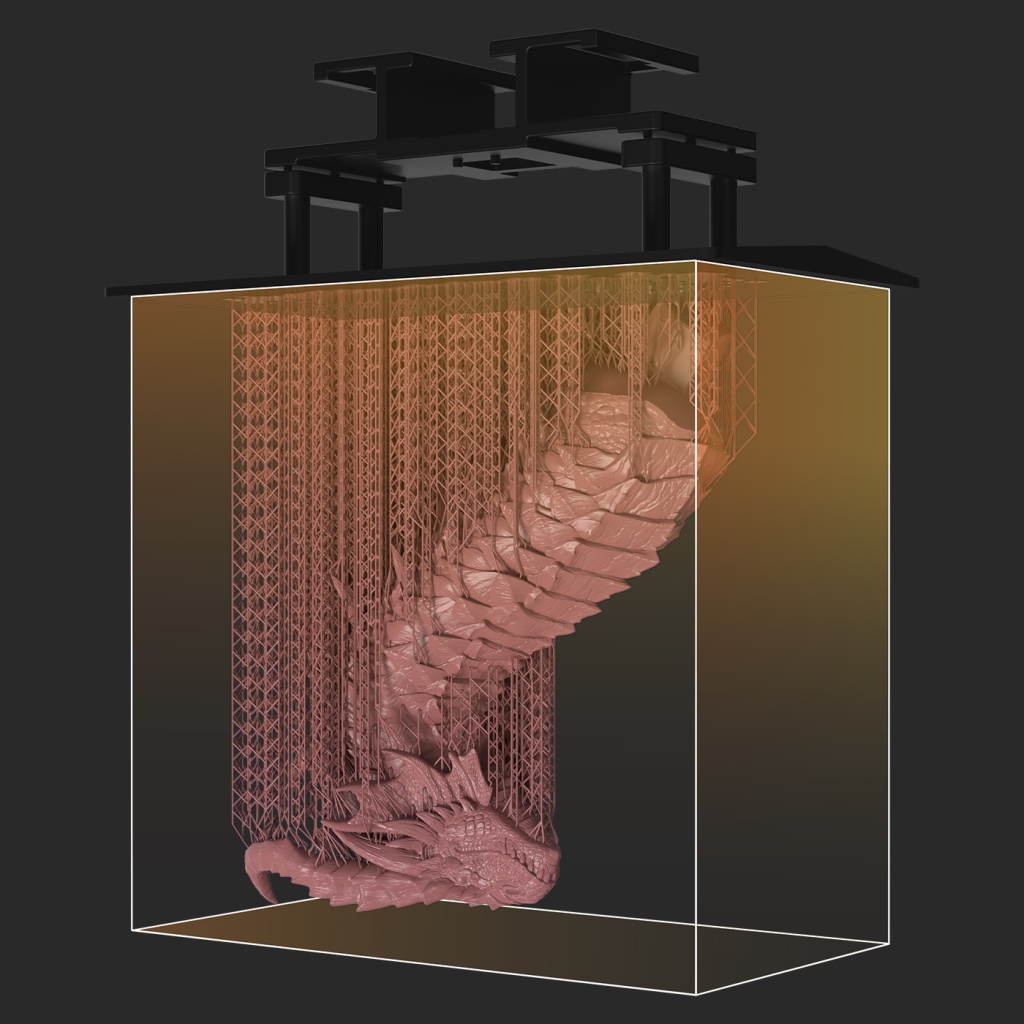

Big. Productive. Stable.

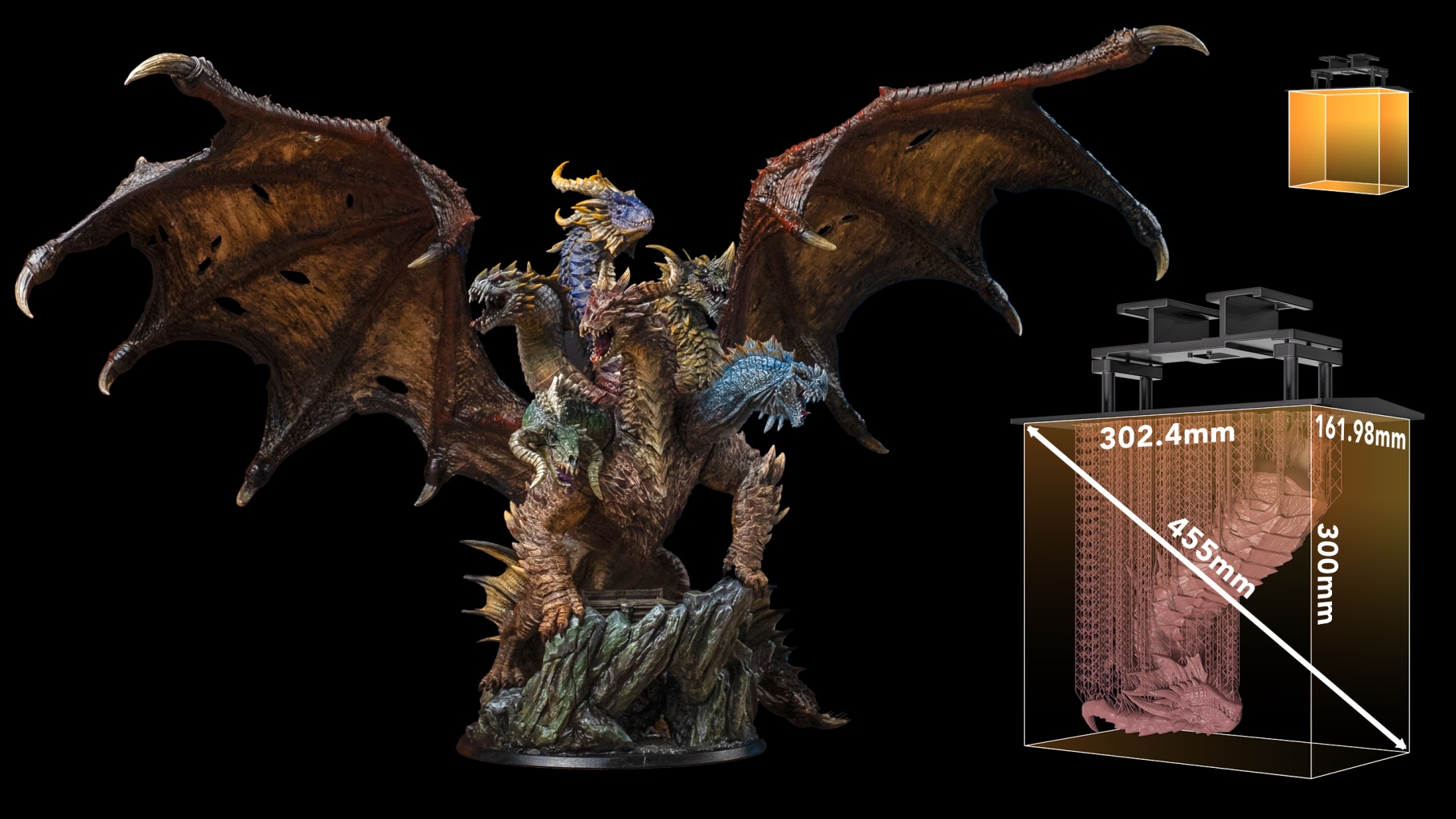

A 14" LCD paired with a 302.4 × 161.98 × 300 mm build volume fits more parts per print, so large models need less splitting. Fewer print runs, fewer pieces to match, and less assembly work, giving creators, studios, and print service providers a faster path to finished pieces.
16K High-Definition, Every Detail Preserved
The Revo MAX's 16K resolution (15104 × 6230) captures ultra-fine detail, with anti-aliasing smoothing curves and edges, and supports single print files up to 10GB for large-scale projects. From textures to figurines and jewelry engravings, results stay sharp for miniature sculptors and jewelry designers.

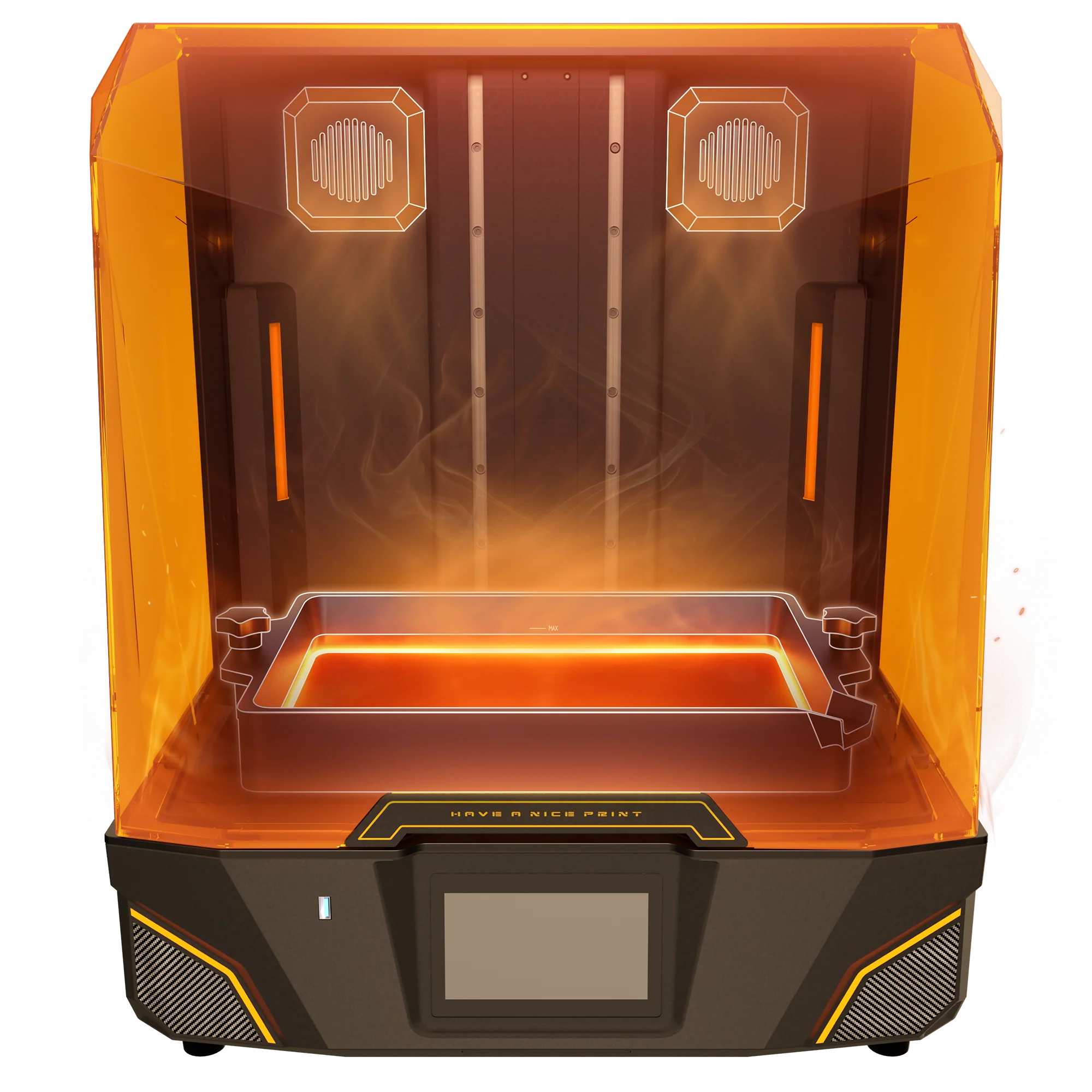

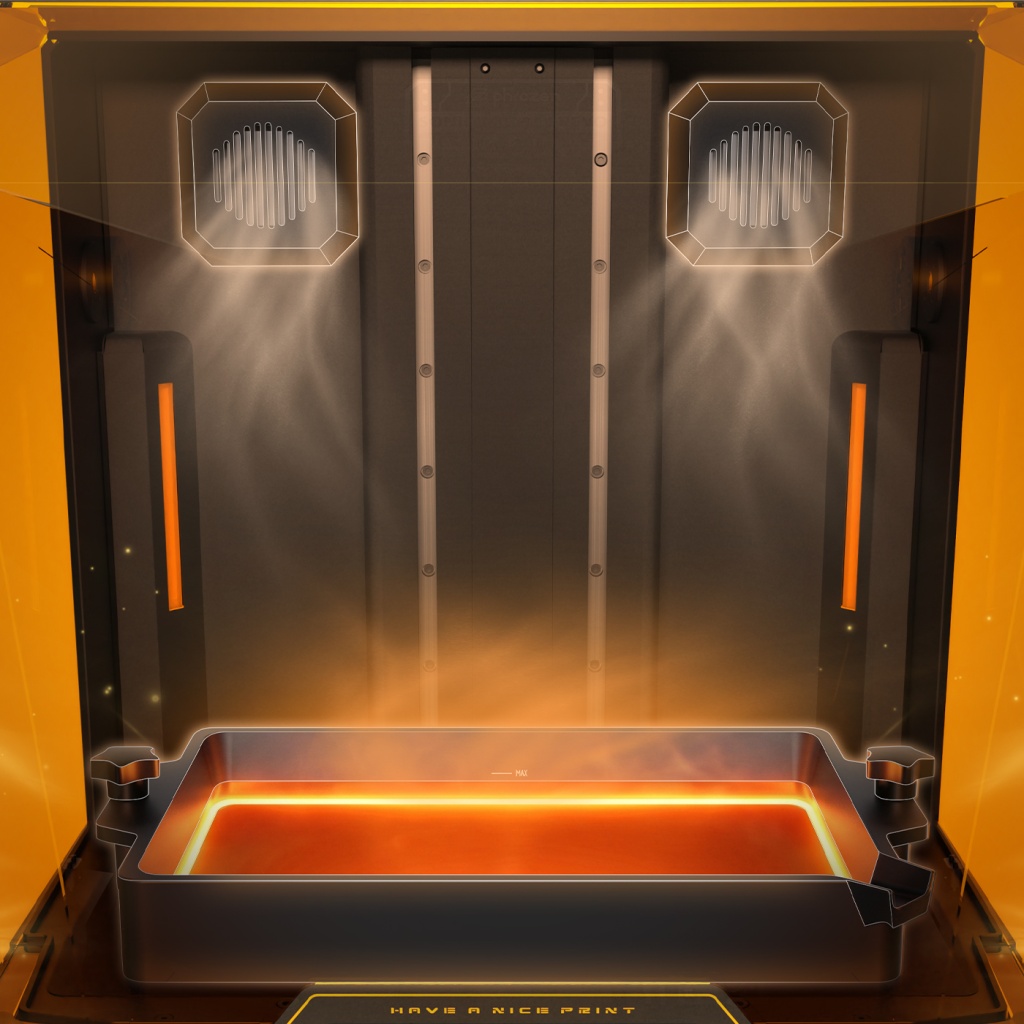

Steadier Temperature, Steadier Prints
Cold rooms and high-viscosity resins need steady temperature control. Revo MAX combines dual-heat chamber with an optional heated resin vat to regulate temperature, while smart detection catches drops for reliable prints.
Standard: Dual-Heat Chamber
Fast Heating, 30°C in 5 Minutes
The dual-fan chamber heater reaches 30°C in just 5 minutes*, helping cold-climate region users keep resin stable from the start of every print.
Add-On: Heated Resin Vat
High-Viscosity Resin, Stable Prints
The optional heated resin vat stabilizes resin flow, helping professionals print high-viscosity engineering resins with more consistent results.
*Measured at 25°C ambient with an empty chamber. Actual warm-up time varies with room temperature.
Print Longer, Swap Faster
What slows your workflow down usually isn't print time, it's the constant refills and material swaps. Revo MAX solves both with a bigger resin vat and quick-release film.

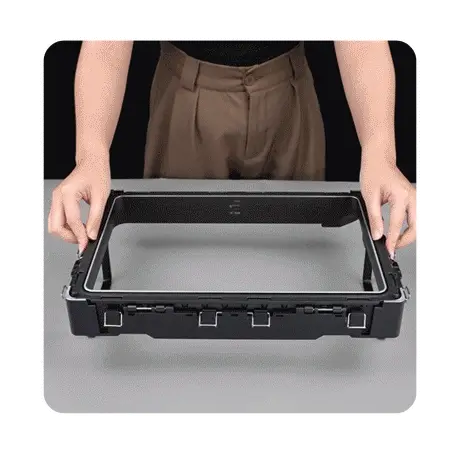

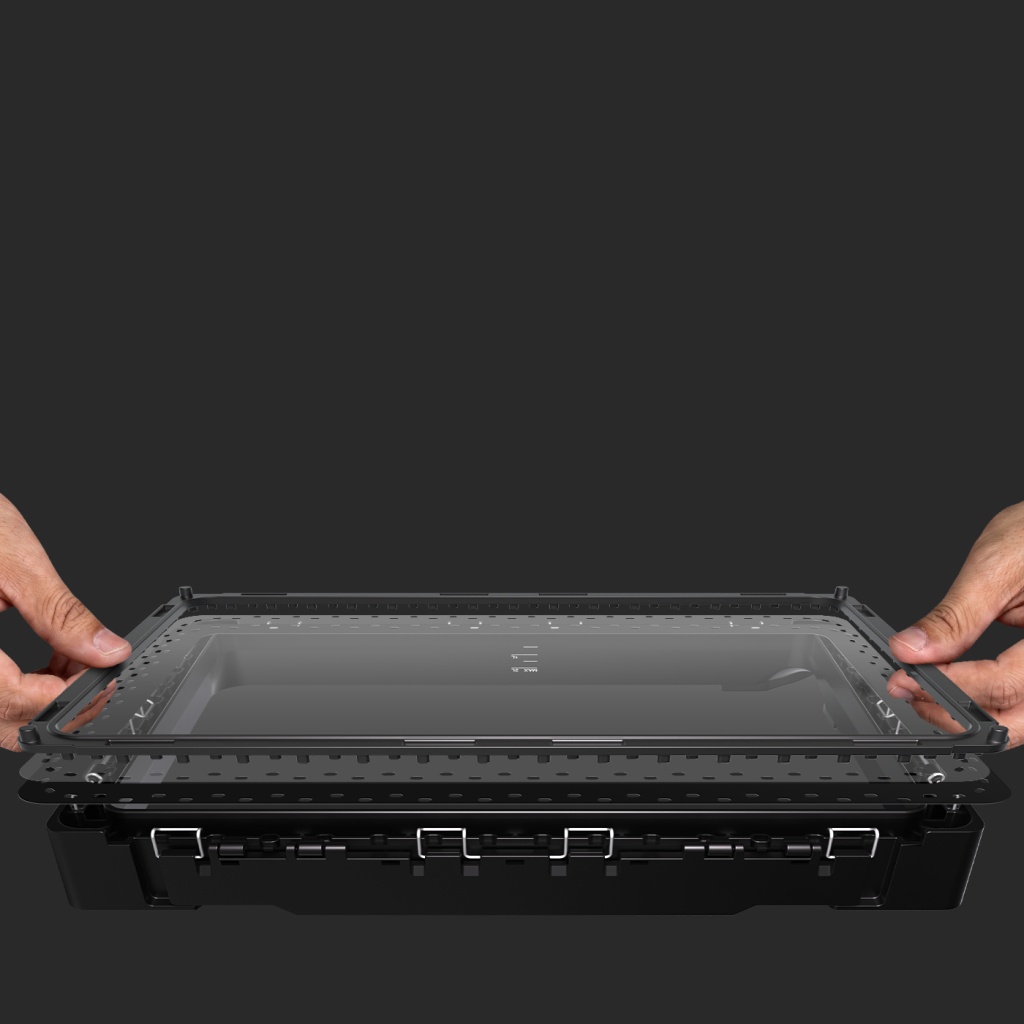

Quick-Release Film, 3-Minute Swap
Traditional film swaps can take up to 30 minutes, aligning holes and screwing them in. Revo MAX's quick-release design on all four sides gets it done in 3 minutes instead. Less maintenance, more printing.

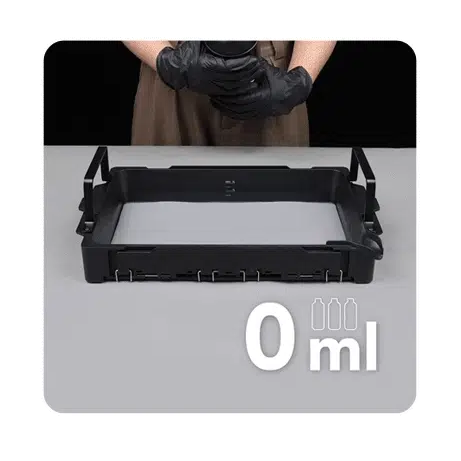

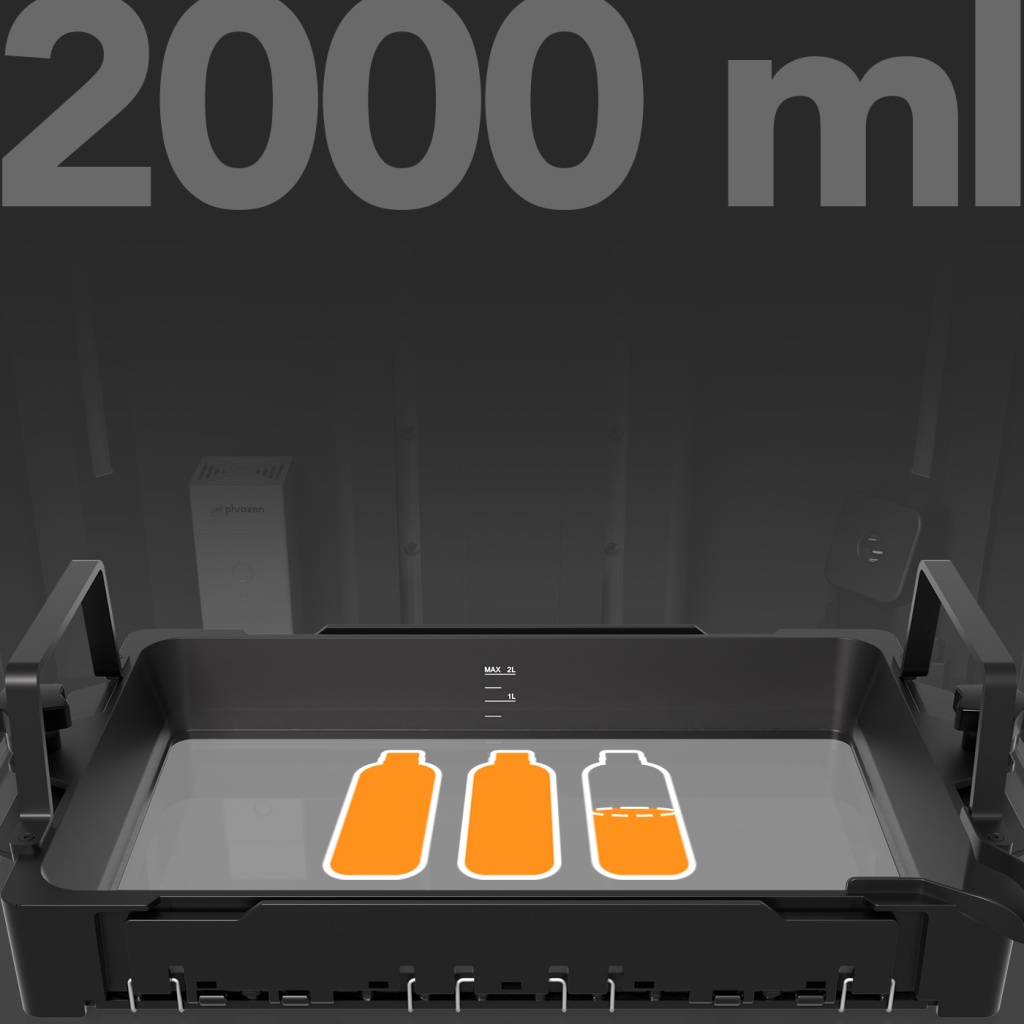

2L Vat, Fewer Refills
The 2L resin vat holds approximately 2.5 bottles in a single fill, so long or overnight prints need less refilling. No resin-feeder, no extra pumps or tubing, just a simpler setup.*
*Actual bottle count may vary by resin density. The 2.5-bottle estimate is based on Aqua Hyperfine Resin (Graphite Gray).
Build Plate Handling, Simplified.
An all-metal build plate, upgraded for easier removal, drainage, and cleanup, for simpler and smoother handling.

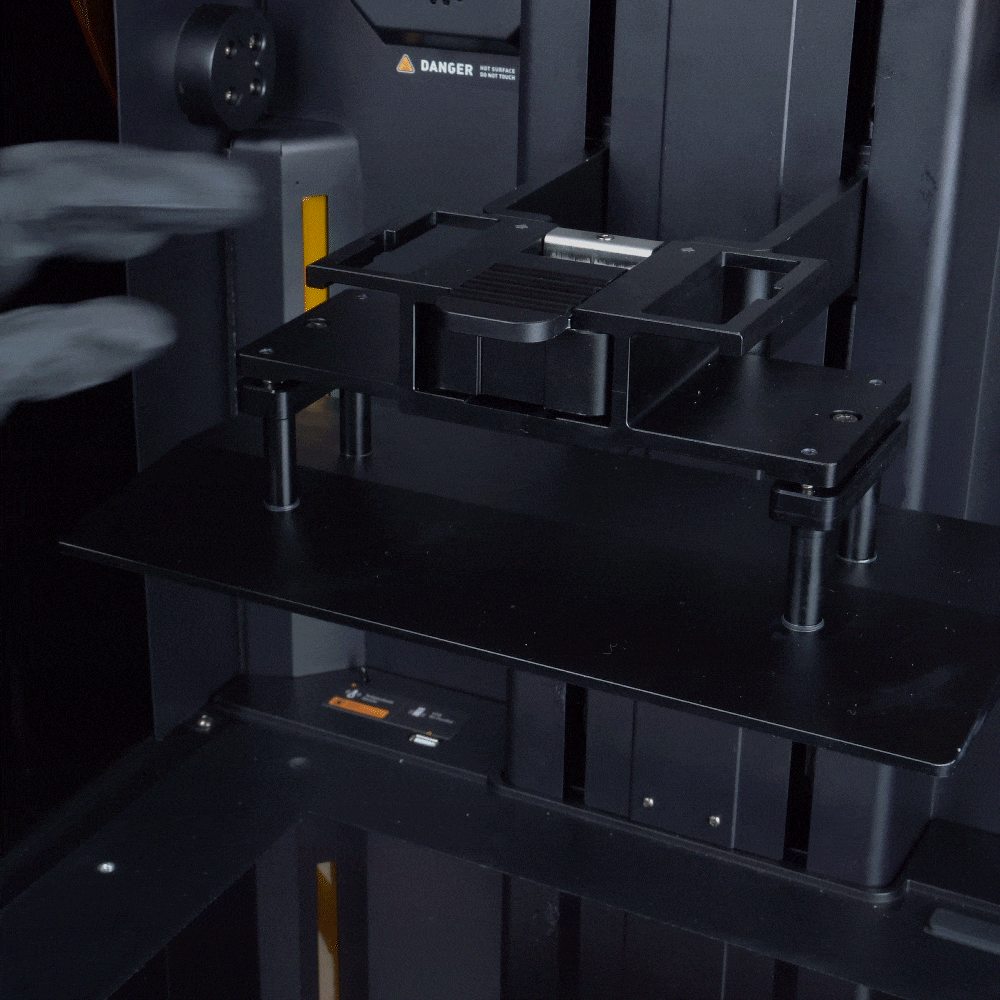

Removal
Snap-Lock and Large Handles
The snap-lock latch means no unscrewing when removing or reinstalling the build plate. Large handles on both sides keep the plate steady and secure in hand.

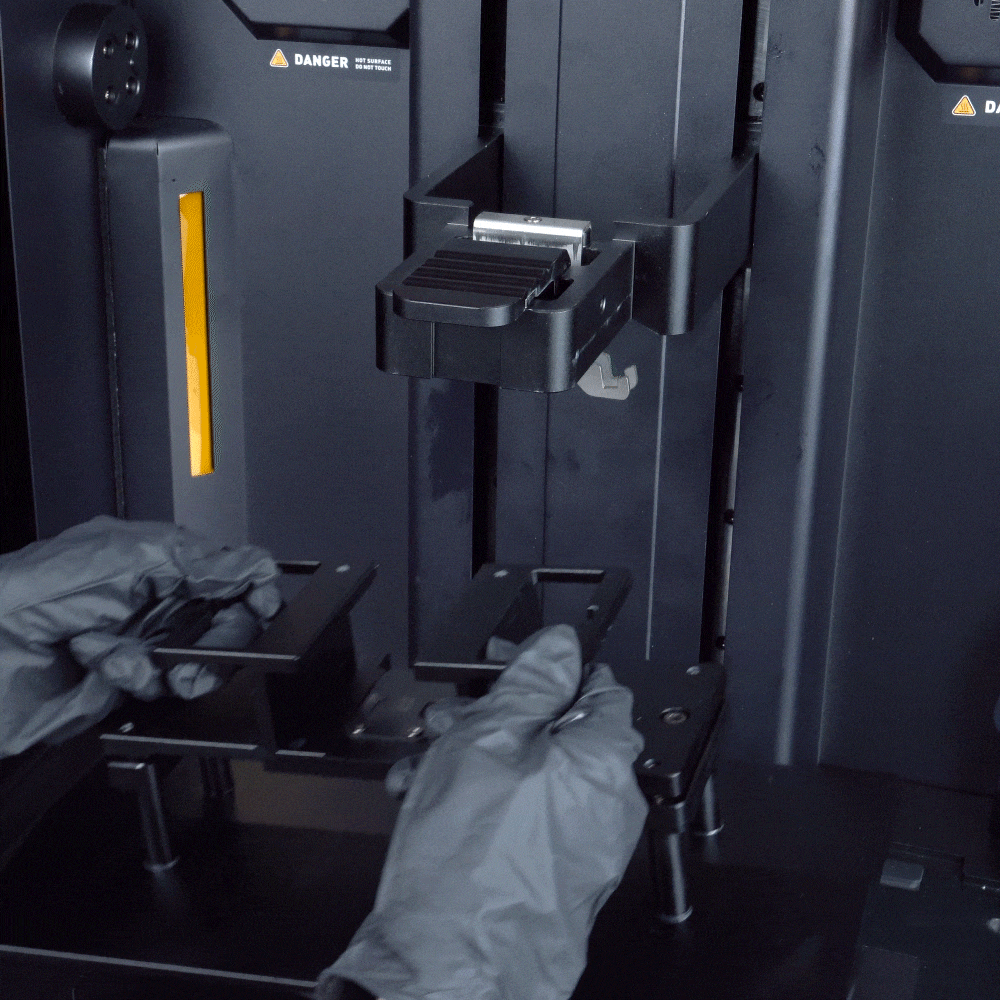

Drainage
Hang and Drain
The build plate hangs directly inside the machine to drain. Resin drips back into the vat, while the lid can still close normally.
Fewer Surprises, More Uptime
From hardware safeguards to system alerts, Revo MAX catches common print risks at every layer.

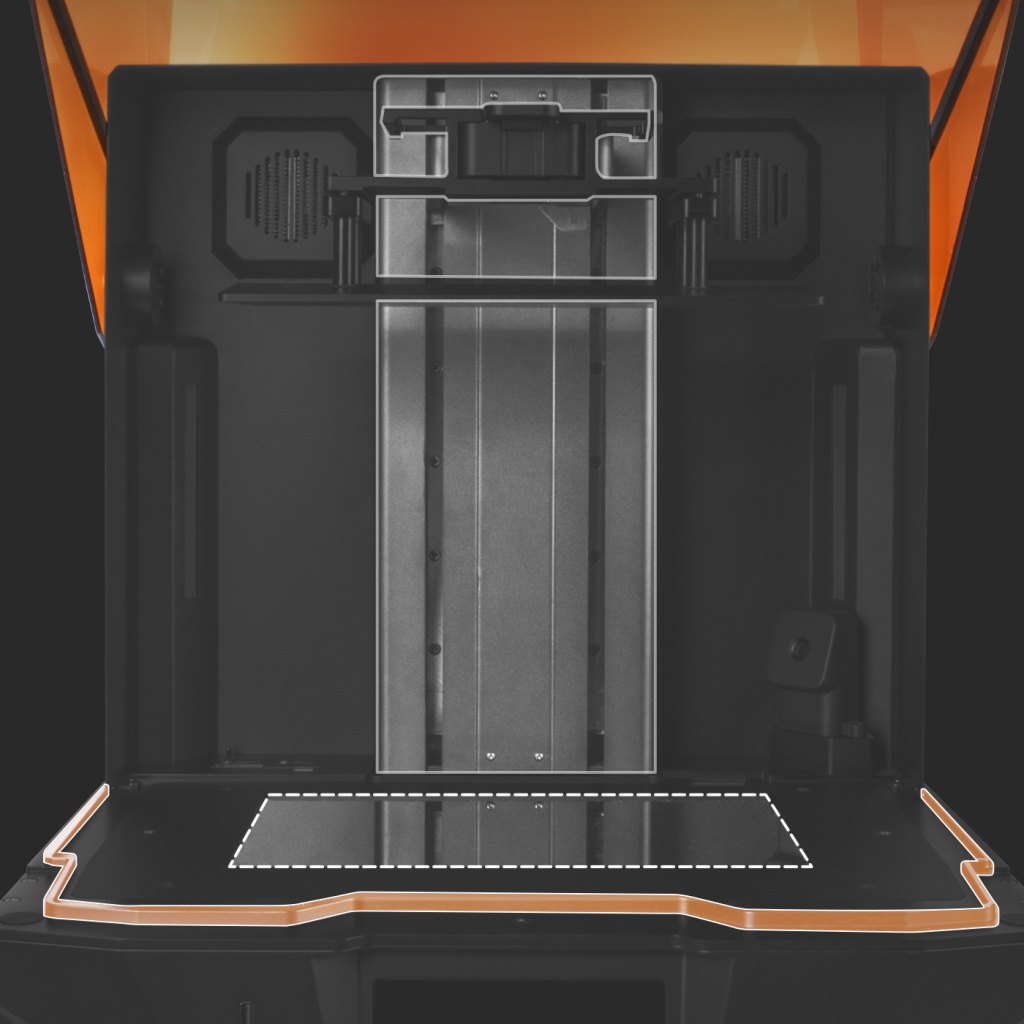

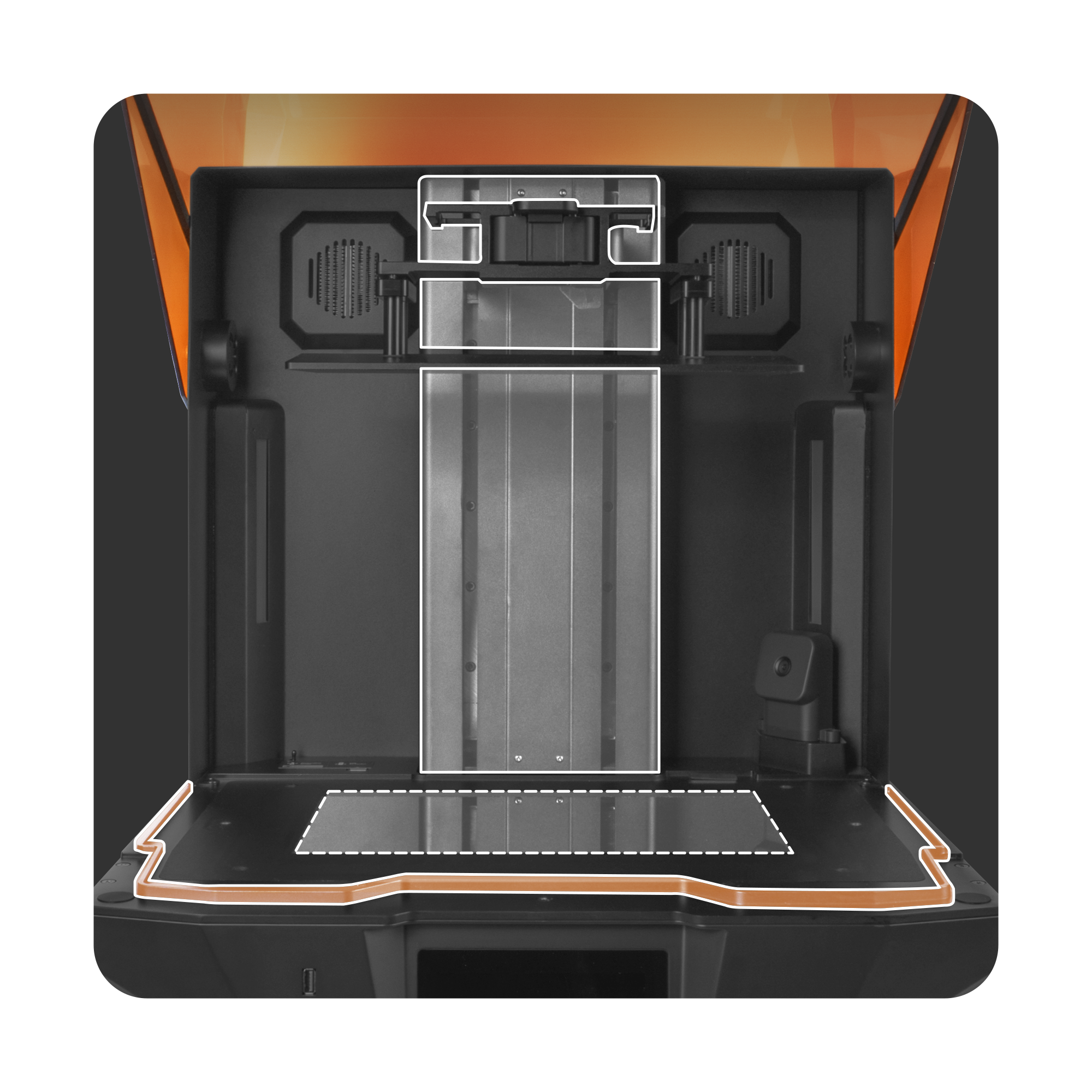

Triple Hardware Protection
A Z-axis guard, tempered glass over the LCD, and a raised base help block resin spills and keep them from seeping into the machine.

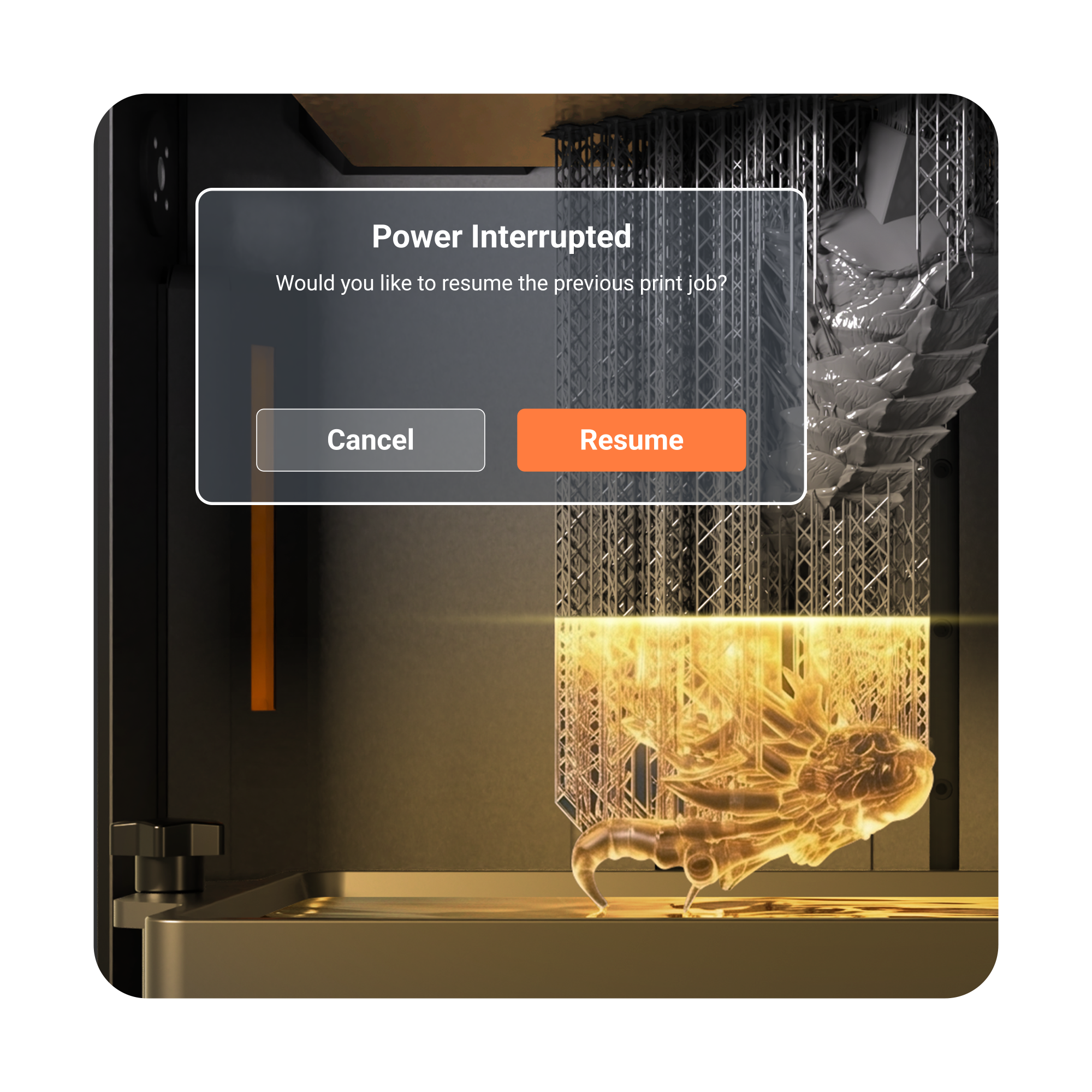

Power-Loss Recovery
If there is a sudden power loss, you will get an alert. Once power returns, printing resumes from where it left off, reducing the risk of reprinting.

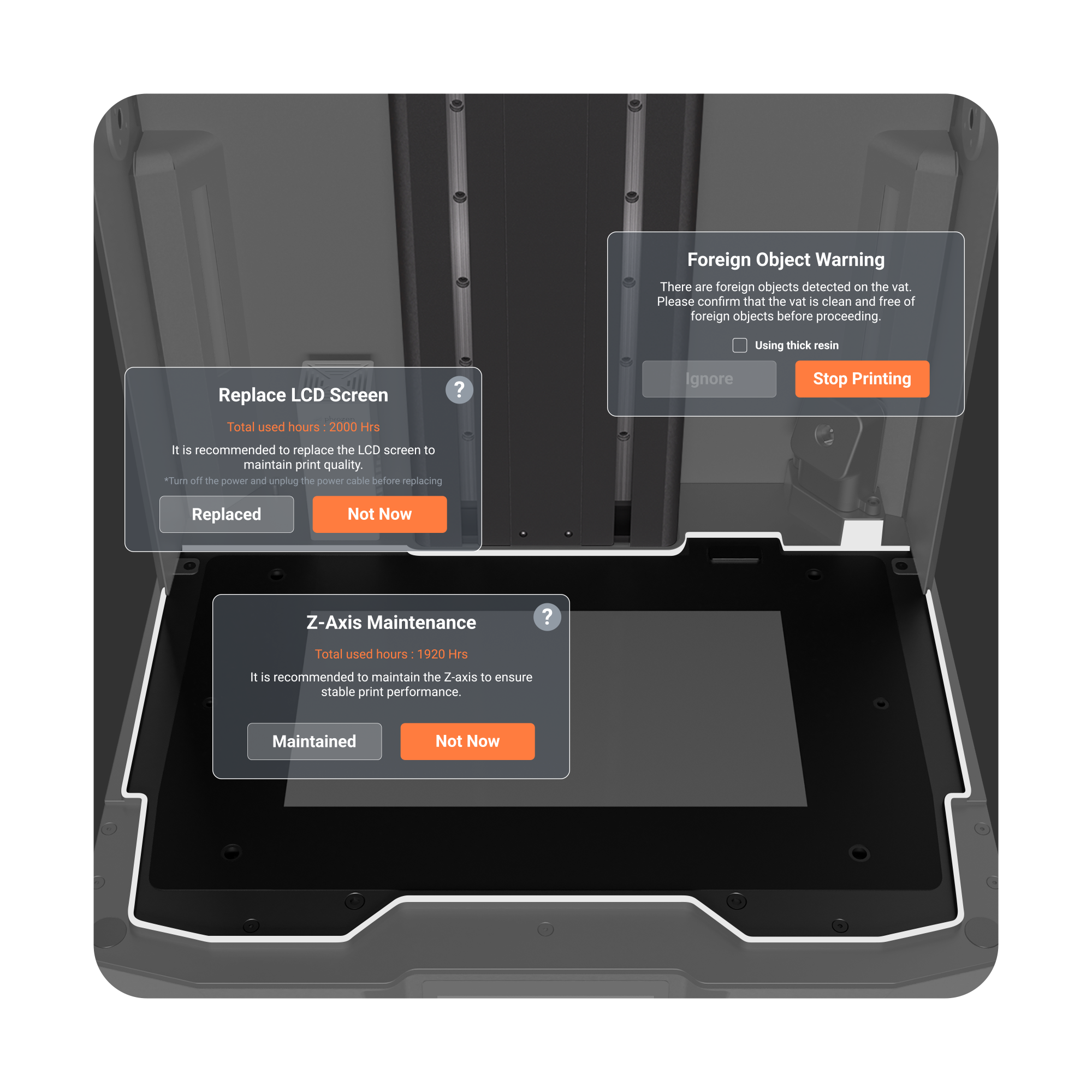

Real-Time Alerts
Get alerts for print failures and temperature drops, with tracking for Z-axis maintenance, LCD, and release film lifetime, keeping you informed.
*Note: Minor layer lines left after a print resumes can be smoothed out with light sanding.
No More Second-Guessing on Settings
Leveling, guided setup, and exposure testing are all built into the screen, so even first-time users can get it right the first time.

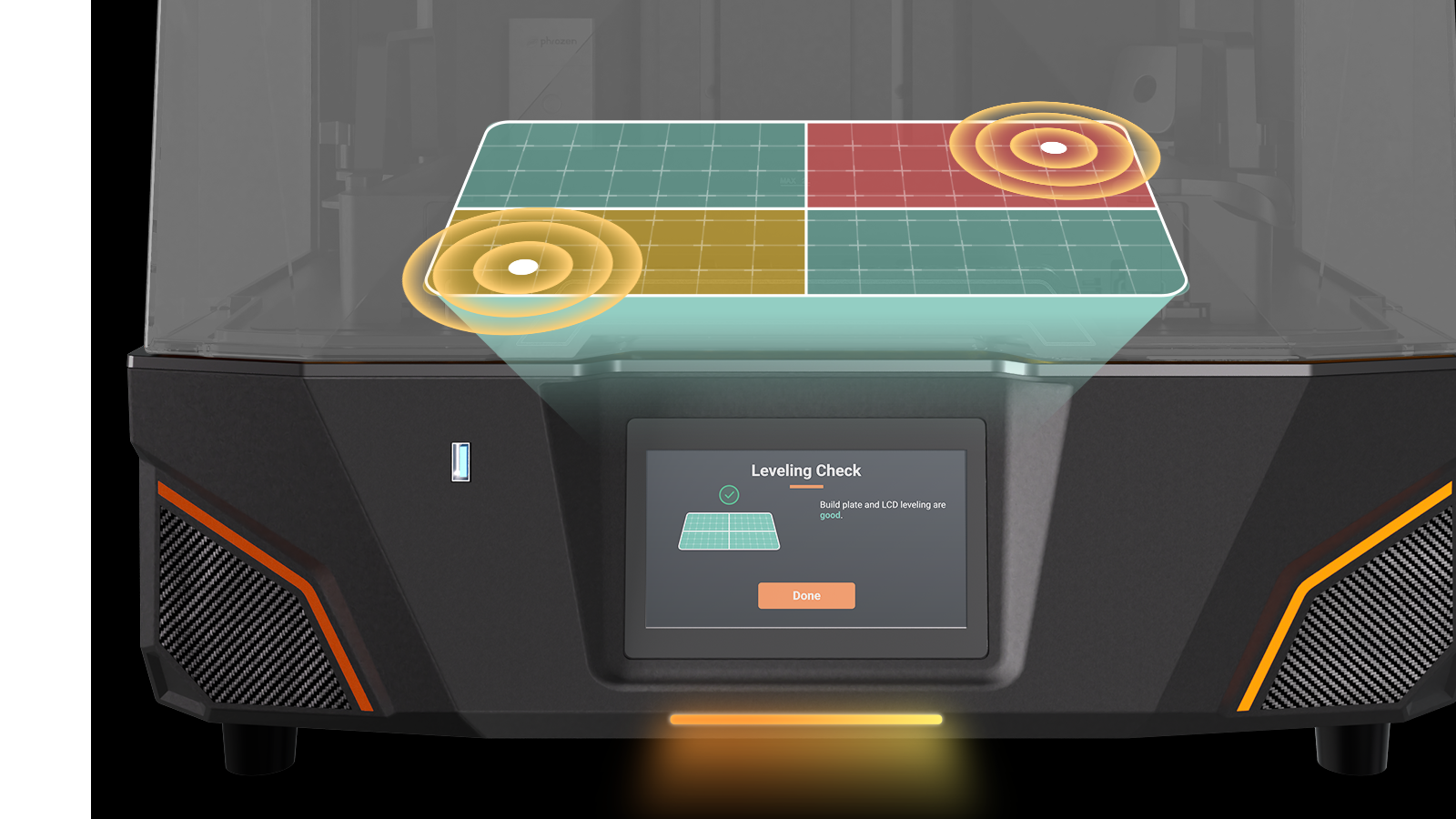

Pressure-Sensing Leveling
Pressure and color indicators mark all four corners, precise adjustments made simple.
Clear, Accurate Monitoring, Every Time
1080p Vertical Camera, No Blind Spots
Horizontal, low-quality cameras blur the view, leaving blind spots hiding failures. Revo MAX's 1080p vertical camera keeps detail sharp, letting you check long or overnight prints from anywhere without walking to the printer.
AI Color Correction with Zero-UV LED
Snapshots and time-lapse footage can look dim and color-shifted. Zero-UV LEDs light the chamber evenly without affecting curing, and AI color correction fixes color shift so footage matches the model's true color.
Stay in Control Even on the Go
The Phrozen GO App lets you control prints and check the live camera from your phone. You can also review or share time-lapse videos after printing. Error notifications, material reminders, and multi-machine management are all handled from the same app.
What Makers Are Printing With Revo MAX
See how Revo MAX balances size and detail in large-model prints, through real creations.
Revo MAX pre-order starts at Sep. 22 8pm (PDT).
Subscribe for an Additional Discount
Discount available in select regions only. Get yours before Sep. 22, 8pm (PDT).
Sonic Mighty Revo 16K MAX Specs
造形サイズ
211.68 x 118.37 x 235 mm造形スピード
平均 450 レイヤー/時XY Resolution
20 × 26 μm積層ピッチさ
0.01–0.2 mmテクノロジー
LCD光源
405nm Para LED® マトリックス3.0液晶仕様
14" 16K Mono LCD (15104 x 6230 pixels)システム
Phrozen OS操作
5 インチ タッチパネルスライサーソフトウェア
CHITUBOX | Lychee SlicerWhich One Fits Your Workflow?
Spec Comparison: Mighty Revo 16K · Mighty Revo MAX · Mega 8K S
| Spec | Mighty Revo 16K | Mighty Revo MAX | Mega 8K S |
|---|---|---|---|
| Technical Specs | |||
| LCD | 14" 16K | 14" 16K | 15" 8K |
| Light Source | 405nm / COB + Fresnel Lens | 405nm ParaLED® Matrix 3.0 | 405nm ParaLED® Matrix 3.0 |
| XY Resolution | 14 × 19 μm | 20 × 26 μm | 43 μm |
| Build Volume (mm) | 211.68 × 118.37 × 235 | 302.4 × 161.98 × 300 | 330 × 185 × 300 |
| Release Film | nFEP (PFA) | nFEP (PFA) *quick-release | ACF Film |
| Heating System | Chamber Single-Fan Heating | Chamber Heating + Vat (Add-on Required) | ✕ |
| Heating Temperature | 30°C | 30°C | ✕ |
| Hardware Specs | |||
| Camera | 720P | 1080P Vertical Camera + AI Color Correction | ✕ |
| Resin Vat Capacity | 0.67L | 2L (≈2.5 bottles) | —*No MAX line marked, capacity can't be measured in a standardized way (less than 2L) |
| Quick-Release Build Plate | ✕ | ✓ | ✕ |
| Quick-Release Film | ✕ | ✓ | ✕ |
| Quick-Release LCD | ✓ | ✓ | ✕ |
| AA (Anti-Aliasing) | ✕ | ✓ | ✓ |
| Power-Loss Resume | ✕ | ✓ | ✕ |
| Operating Screen | 5" | 5" (720p) | 3.5" |
| Connectivity | USB, Wi-Fi, Ethernet | USB, Wi-Fi, Ethernet | USB, Wi-Fi |
| Rail | Dual Rails (Ball Screw) | Dual Rails (Lead Screw) | Dual Rails (Ball Screw) |
| Machine Dimensions (mm) | 353 × 345 × 517 | 520 × 450 × 627 | 472 × 380 × 566 |
| Weight | 18.2 kg | 29 kg | 26 kg |
Technical Specs
LCD
Revo 16K14" 16K
Revo MAX14" 16K
Mega 8K S15" 8K
Light Source
Revo 16K405nm / COB + Fresnel Lens
Revo MAX405nm ParaLED® Matrix 3.0
Mega 8K S405nm ParaLED® Matrix 3.0
XY Resolution
Revo 16K14×19 μm(15120×6230)
Revo MAX20×26 μm(16K, 15104×6230)
Mega 8K S43 μm
Build Volume (mm)
Revo 16K211.68×118.37×235
Revo MAX302.4×161.98×300
Mega 8K S330×185×300
Release Film
Revo 16KnFEP (PFA)
Revo MAXnFEP (PFA)*quick-release
Mega 8K SACF Film
Heating System
Revo 16KChamber single-fan
Revo MAXChamber + Optional Heated Vat
Mega 8K S✕
Heating Temperature
Revo 16K30°C
Revo MAX25–40°C adjustable
Mega 8K S✕
Light Intensity and Uniformity
Revo 16K3900–5900 μW/cm²uniformity ≥75%
Revo MAX5000 ±150 μW/cm²uniformity ≥90%
Mega 8K S—
Printing Speed
Revo 16KMax. 676 layers/hr
Revo MAXAvg. 245 layers/hr
Mega 8K SAvg. 400 layers/hr
Layer Thickness
Revo 16K0.01–0.2 mm
Revo MAX0.01–0.2 mm
Mega 8K S0.01–0.3 mm
Hardware Specs
Max File Size
Revo 16K2G
Revo MAX10G
Mega 8K S2G
Camera
Revo 16K720P
Revo MAX1080P + AI Color Calibration
Mega 8K S✕
Resin Vat Capacity
Revo 16K0.67L
Revo MAX2L(≈2.5 bottles)
Mega 8K S—*No MAX line, <2L, not standardized
Quick-Release Build Plate
Revo 16K✕
Revo MAX✓
Mega 8K S✕
Quick-Release Film
Revo 16K✕
Revo MAX✓
Mega 8K S✕
Quick-Release LCD
Revo 16K✓
Revo MAX✓
Mega 8K S✕
AA (Anti-Aliasing)
Revo 16K✕
Revo MAX✓
Mega 8K S✓
Power-Loss Resume
Revo 16K✕
Revo MAX✓
Mega 8K S✕
Operating Screen
Revo 16K5"
Revo MAX5" (720p)
Mega 8K S3.5"
Connectivity
Revo 16KUSB, Wi-Fi, Ethernet
Revo MAXUSB, Wi-Fi, Ethernet
Mega 8K SUSB, Wi-Fi
Software
Revo 16KChitubox
Revo MAXChiTuBox / Lychee Slicer
Mega 8K SChitubox
Rail
Revo 16KDual Rails (Ball Screw)
Revo MAXC7 class Dual Rails (Lead Screw)
Mega 8K SDual Rails (Ball Screw)
Machine Dimensions (mm)
Revo 16K353×345×517
Revo MAX520×450×627
Mega 8K S472×380×566
Weight
Revo 16K18.2 kg
Revo MAX29 kg
Mega 8K S26 kg
FAQ
1. What is the difference between Revo MAX and Revo 16K, and when is upgrading worth it?
Choose Revo 16K for smaller, single-piece prints. Upgrade to Revo MAX when you need more room or higher output. Its 14-inch screen fits larger models or fuller batches, while the 2L vat and dual-heat chamber with optional heated resin vat support longer, steadier prints.
2. Why doesn't Revo MAX have an automatic resin refill system?
It is a deliberate trade-off. Pumps, hoses, and sensors add failure points like leaks and clogging. Revo MAX uses a 2L vat instead, holding 2.5 bottles of 1kg resin to cut refills, while power-loss resume adds extra stability for long prints.
3. Why do resin prints fail more often in cold weather, and how does Revo MAX help?
Cold resin thickens, causing adhesion issues. Revo MAX's Dual-Heat Chamber reaches 30°C in 5 minutes with smart drop detection. The optional Heated Resin Vat keeps high-viscosity engineering resins stable in colder climate.
4. What is the biggest risk with large-format printers, and how does Revo MAX avoid reprints?
The biggest fear is a mid-print failure caused by power outages, low temperature, or worn release films. Revo MAX cuts these risks with the dual-heat chamber, 2L resin vat, and power-loss recovery, avoiding reprints and saving materials and time.
5. Can Revo MAX really resume printing after a power outage, and will there be any visible lines?
Yes. Once power returns, printing picks up where it stopped, no need to start over. A faint line may show up near the restart point, but sanding blends it away 90% of the time, leaving a clean finish with no full reprint needed.
6. Are replacement parts easy to find and replace?
Key consumables such as PFA(nFEP) film, LCDs, and resin vats are available through Phrozen3d.com and authorized resellers, with quick-release designs making replacements easier and built-in tracking letting you know when parts need attention.
7. Is Revo MAX suitable for beginners?
Yes. Although Revo MAX is a flagship model, it is also beginner-friendly, with video tutorials, pressure-sensing leveling assistance, and quick-release parts. New users can start with slicer-free PIXUP models before learning to slice their own files.
8. Which post-processing equipment works with Revo MAX?
Mega Wash S washes the whole build plate at once, and Mega Cure S post-cures large Revo MAX prints. Air Purifier Max attaches magnetically to Revo MAX's mounting points and pairs with 3D Printer Enclosure Mega to reduce resin odor on long prints.
9. Does the number of bottles that fit vary between different resins?
Yes, it can. Since resin density varies, 1kg bottles differ in volume, so bottle count varies too. In testing, the 2L vat held 2.5 bottles of 1kg Phrozen Hyperfine Resin (Graphite). Actual results depend on the resin type.
10. Which engineering resins does Phrozen recommend, and when should they be used?
Standard resin covers large models, statues, BJD, GK, and display pieces. For structural or armor parts, use engineering resin such as ABS-Like+ for toughness, or ONYX Impact Plus (1600-2000 cps) for more strength, paired with the Heated Resin Vat for stable flow.
