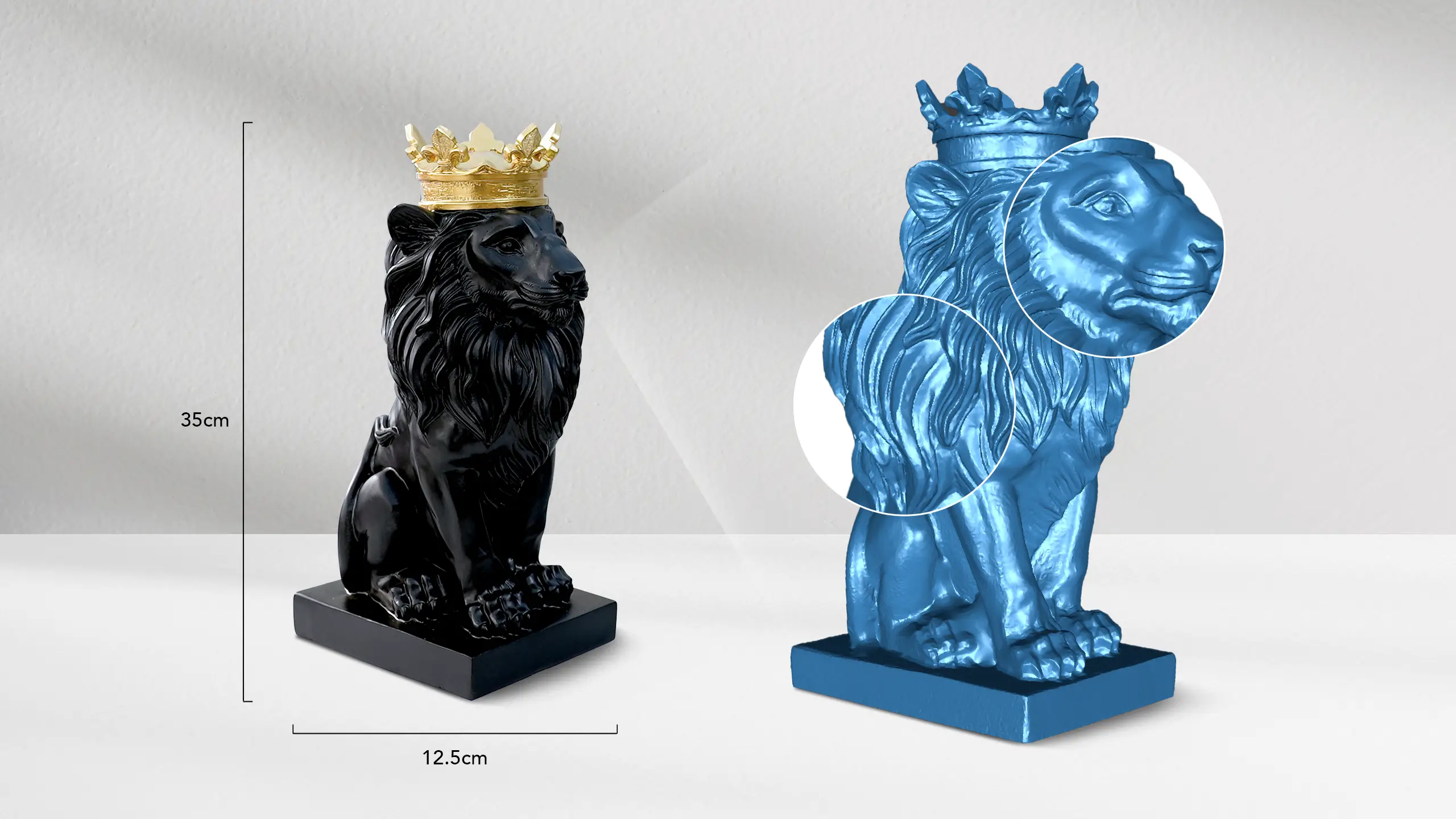

Black lion model and blue scanned model showing high-resolution 3D scan detail restoration scanned with the EINSTAR 3D scanner.

High-Resolution Output

Achieve sharper textures and clearer details with high-density point distances up to 0.1 mm for accurate, true-scan restoration.

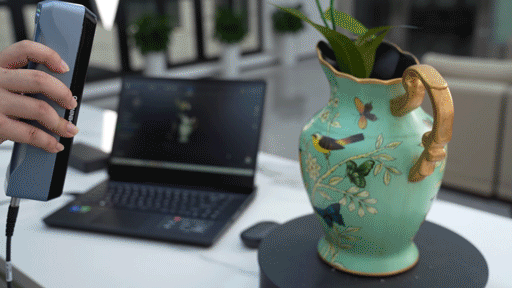

Person using the EINSTAR 3D scanner to scan a vase with flowers with reliable high-speed scanning and intelligent tracking.

Reliable Scanning in Minutes

Experience high-speed scanning at up to 14 fps with automatic alignment and intelligent tracking, completing a full-body scan within minutes.

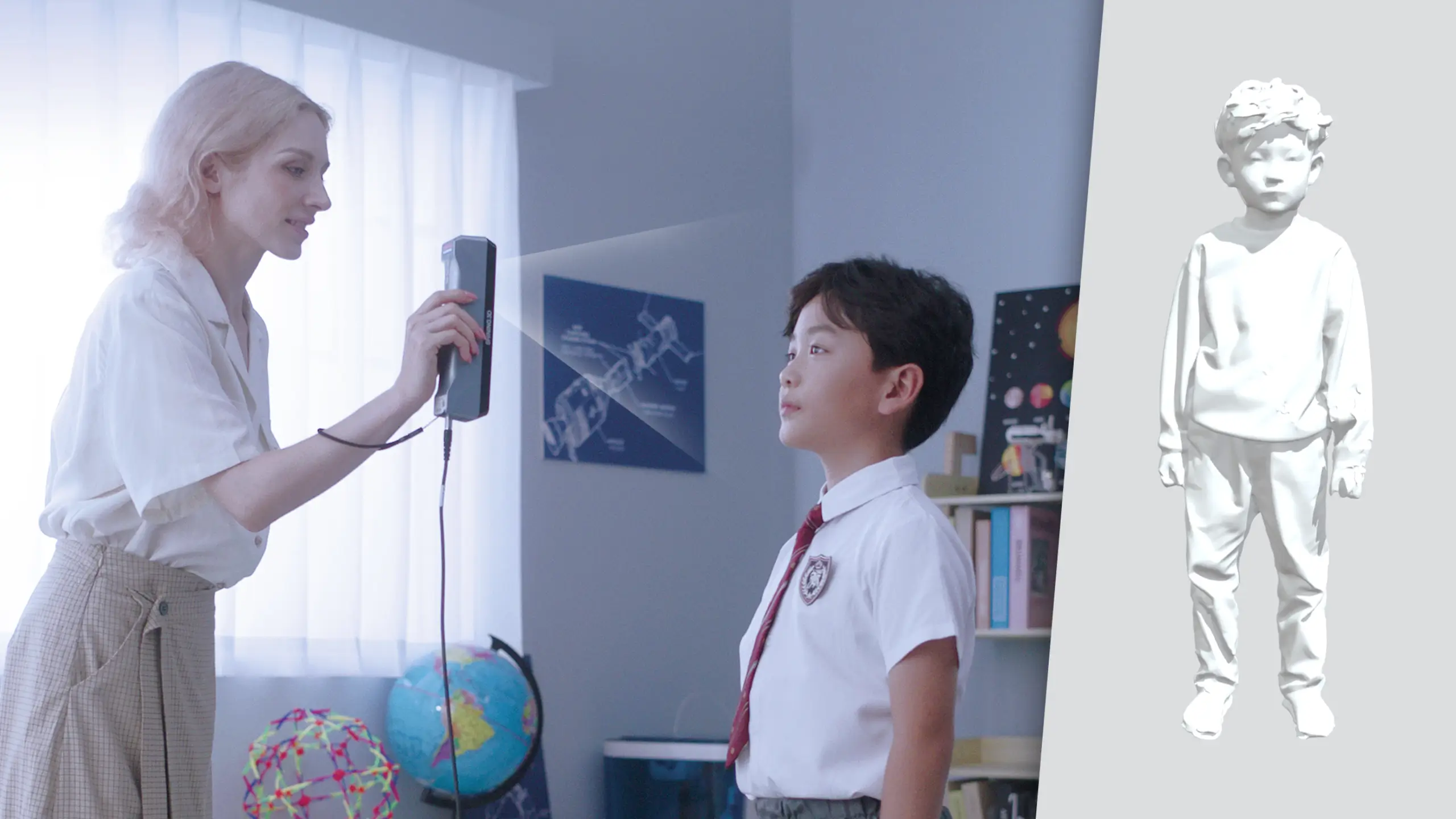

Person using the EINSTAR 3D scanner to scan a child with stable and precise data capture, including challenging details like hair.

Enhanced Data Capture

Equipped with advanced camera systems, Einstar constantly delivers stable and precise results across environments, even for challenging objects like human hair.

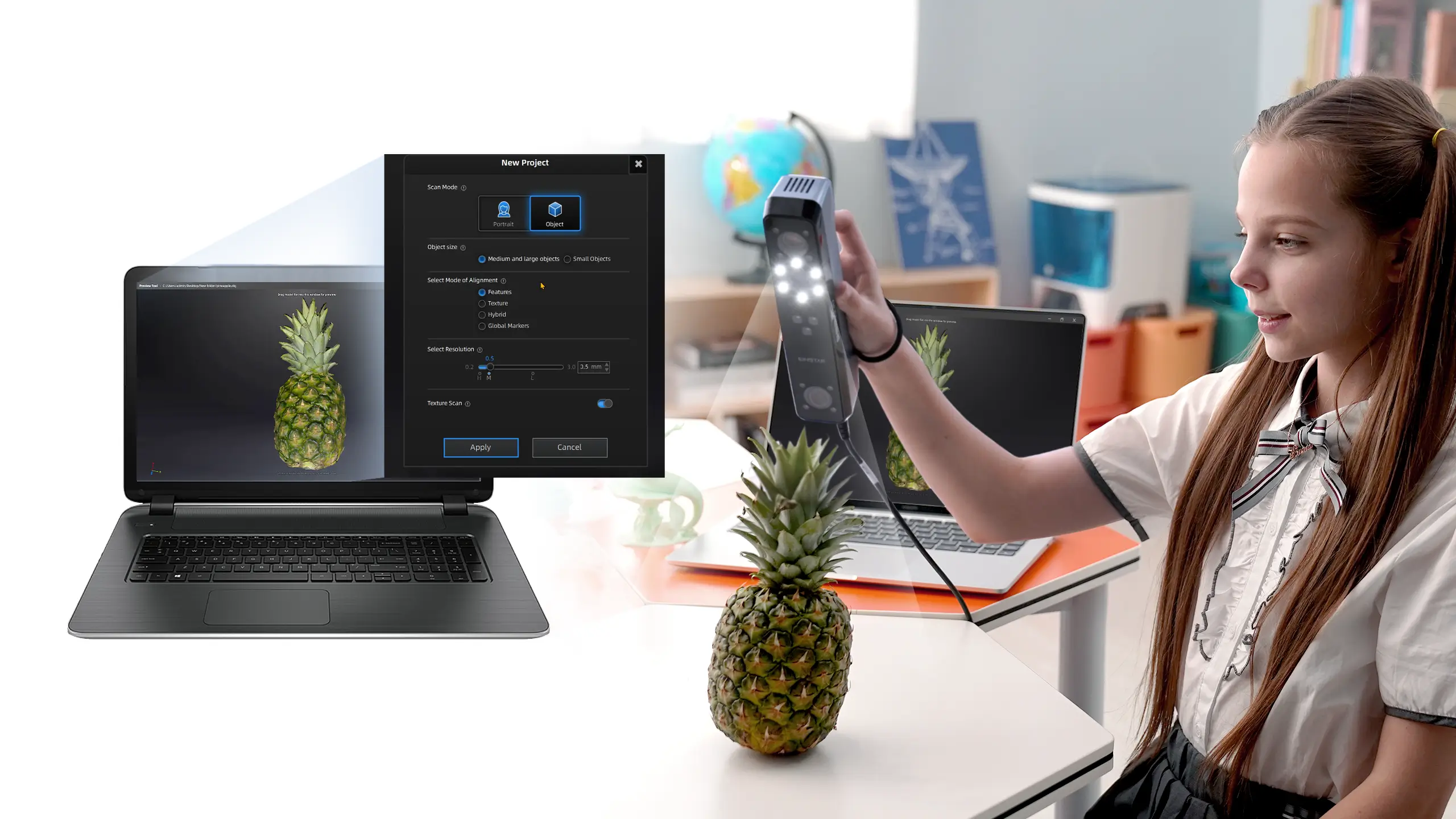

Student using the EINSTAR 3D scanner to scan a pineapple with a streamlined setup and easy workflow for editing and 3D printing.

A Completely Streamlined Experience

Optimized for user efficiency, the Einstar 3D scanner is simple to set up and use. Compatible with various output formats and 3D modeling software, it makes post-editing and printing more convenient*.

*For recommended configuration, please check the product specification table below.

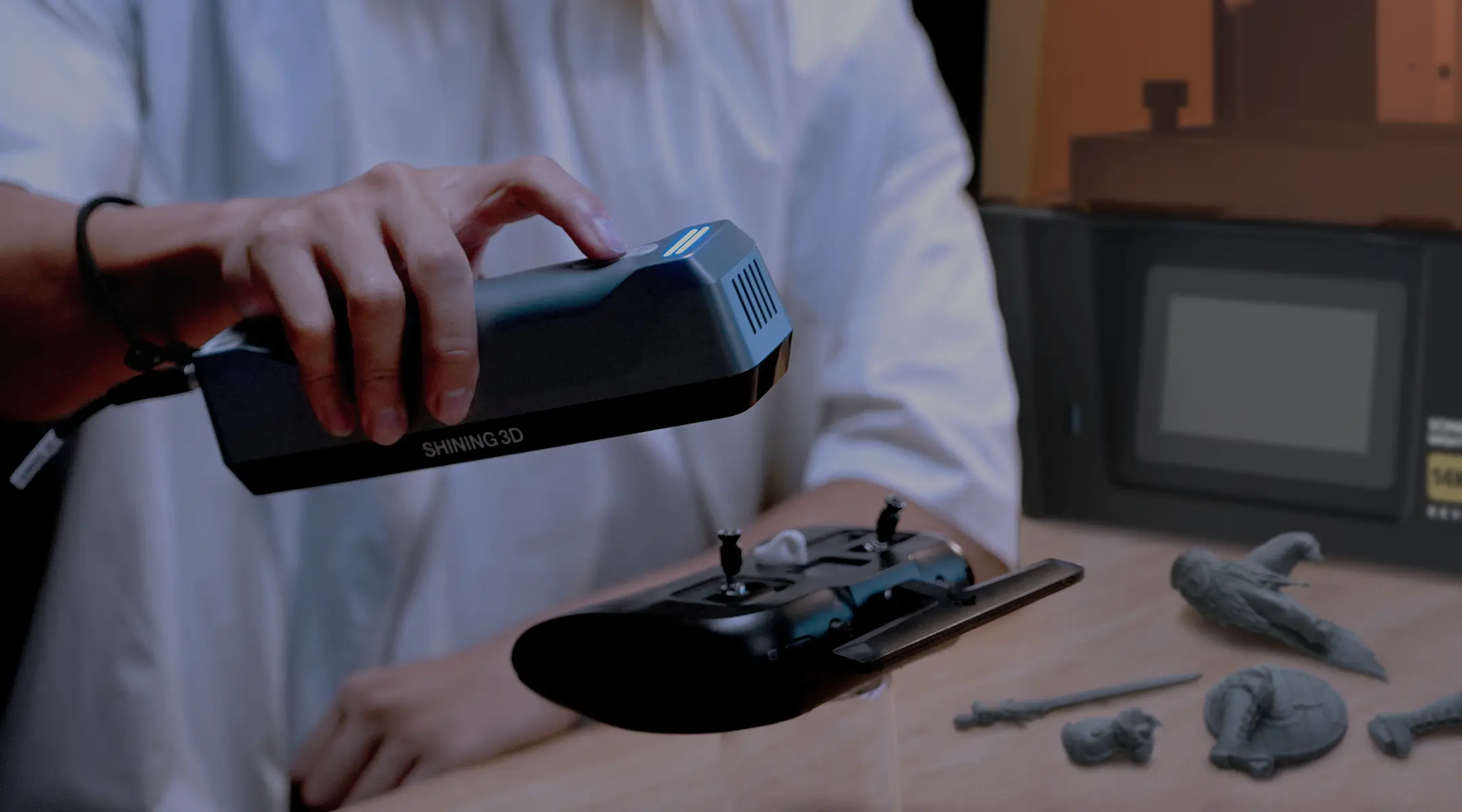

As a prosumer scanner, the Einstar Portable 3D Scanner accommodates more experienced users looking for higher-quality 3D model output to streamline their process. Suitable for small to medium-sized enterprises, the EINSTAR Prosumer 3D Scanner is best paired with Phrozen Sonic Mighty Revo and Phrozen Sonic Mega 8K S 3D printers for superior print production efficiency.

Product Specifications

Light Source
Infrared VCSEL structured light*
Point Distance
0.1 mm ~ 3 mm
Effective Working Distance
160 mm ~ 1400 mm
Optimal Working Distance
400 mm
FOV (under optimal work distance)
434 mm x 379 mm
Scan Rate
Up to 14 fps
Data Alignment Mode
Texture/ Feature/ Hybrid Alignment/ Global Markers*
