Use Sonic Mini 4K + Aqua-Gray 4K Resin to print high-quality models (Part 2)



Aqua-Gray 4K Resin

In our previous blog post, we promised we would show you how to print out this exact ring step by step....so let’s begin!

Here’s a pre-supported test print file for you to download so that you can follow along with us.



Fasten the printer’s build platform tightly

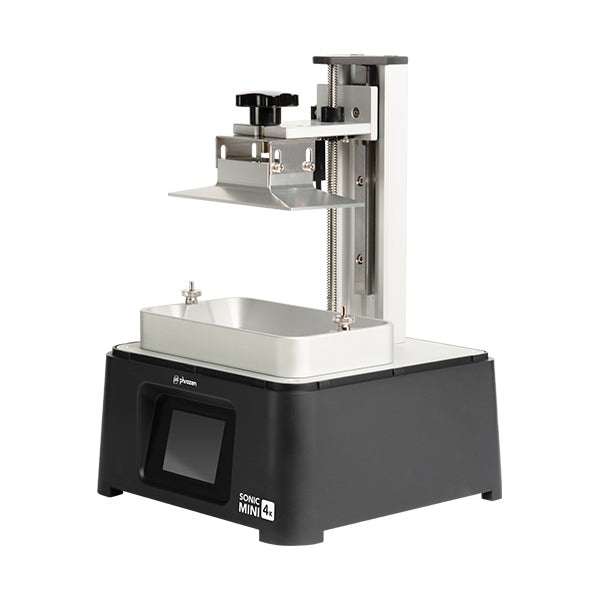

Sonic Mini 4K

Before you begin printing, make sure to set up the build platform for Sonic Mini 4K and fasten it tightly onto the printer’s Z-axis.



Why you should perform an LCD test before you begin printing


Perform an LCD test just to make sure that the printer’s LCD screen and LED lights are functioning correctly. Be sure to follow instructions on Sonic Mini 4K’s user manual starting from P. 7 to perform the test precisely.

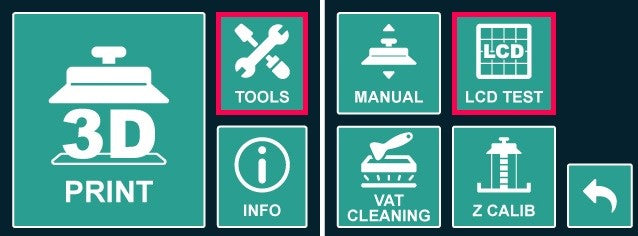

1. On your printer's touch panel, click on TOOLS

2. Then select LCD TEST for the test to begin



How calibrating your printer’s Z-axis will help you get better prints



Calibrating your printer’s Z-axis is also crucial for improving the quality of your prints. It also ensures that your 3D printer will be able to accurately print out high-quality models with less room for error during the printing process.

1. To calibrate the Z-axis, remove any objects present on the LCD screen and loosen all the screws on the build platform.

2. Prepare a piece of A4 paper (roughly 0.07 mm thickness) and lay it flat across the LCD screen.

3. On the Sonic Mini 4K’s LCD touch panel, click on TOOLS then Z CALIB to begin the process.

4. After the build platform extends to touch the piece of paper, adjust the platform to make sure it is laying tight on the paper, then tighten the screws.

5. Click DONE for the build platform to retract, remove the piece of paper, and fasten the resin vat to begin the printing process.

For more information, please refer to our Sonic Mini 4K manual starting from P. 7, or our FAQ page



Shake and pour the resin into the resin vat

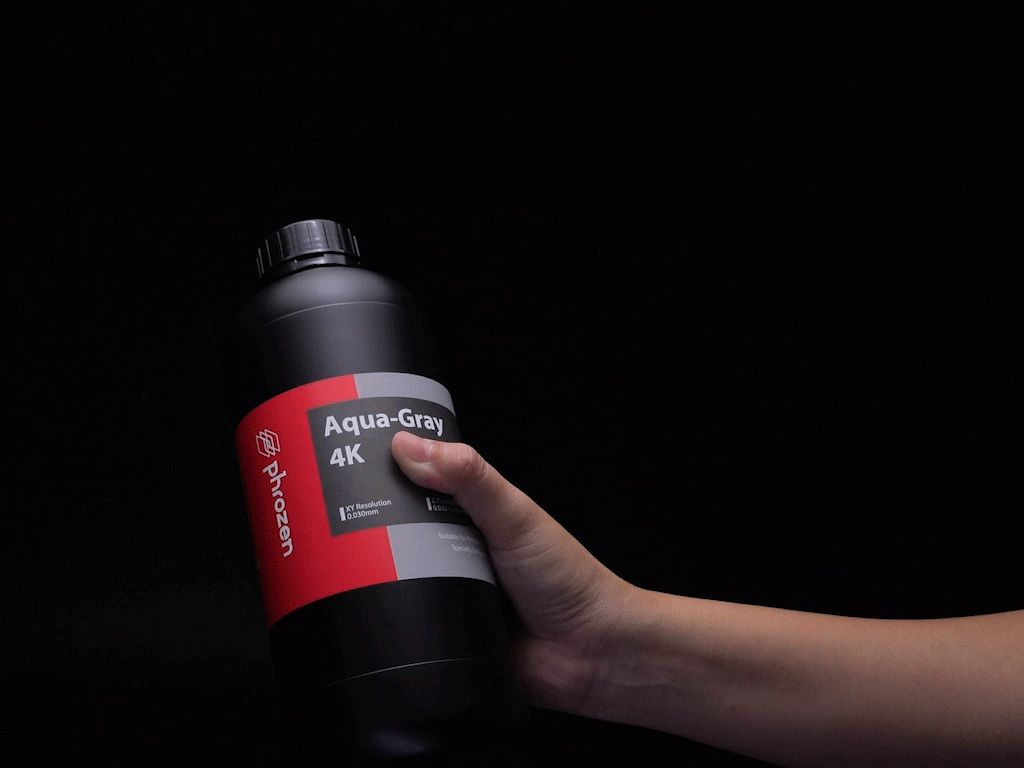

Aqua Gray 4K resin being shaken

Before pouring Aqua-Gray 4K resin into the resin vat, make sure to shake it evenly for approximately one minute. This is because the resin is made up of several components including coloring pigments, which tend to settle at the bottom of the bottle.

As resin is shaken, the sediments will distribute evenly, meaning that you can create successful prints more easily. If you don't shake resin before pouring it into the resin vat, it will cure unevenly, and your prints may fail.

When pouring resin, make sure it does not exceed half of the height of the resin vat. This prevents resin from overflowing during the printing process which could cause damage to the LCD screen.

As this is a test print, we're using Aqua-Gray 4K resin for demonstration purposes. You can use Phrozen Wax-like Castable Resin for professional purposes.



How to adjust print parameters on CHITUBOX Slicer Software?

CHITUBOX Settings

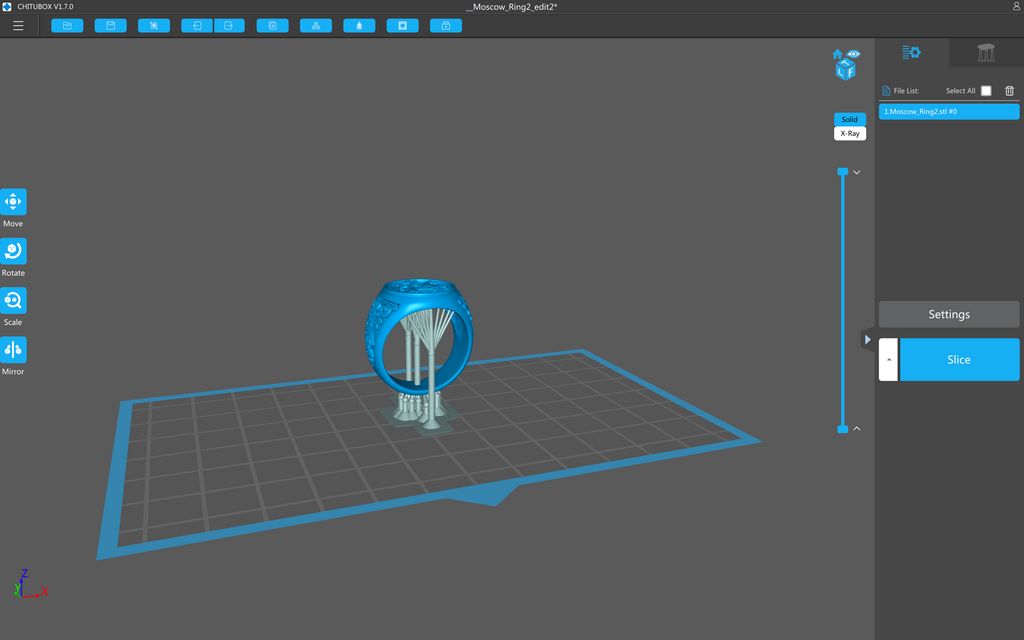

1. Click on CHITUBOX Slicer software on your laptop or desktop computer.

CHITUBOX Settings

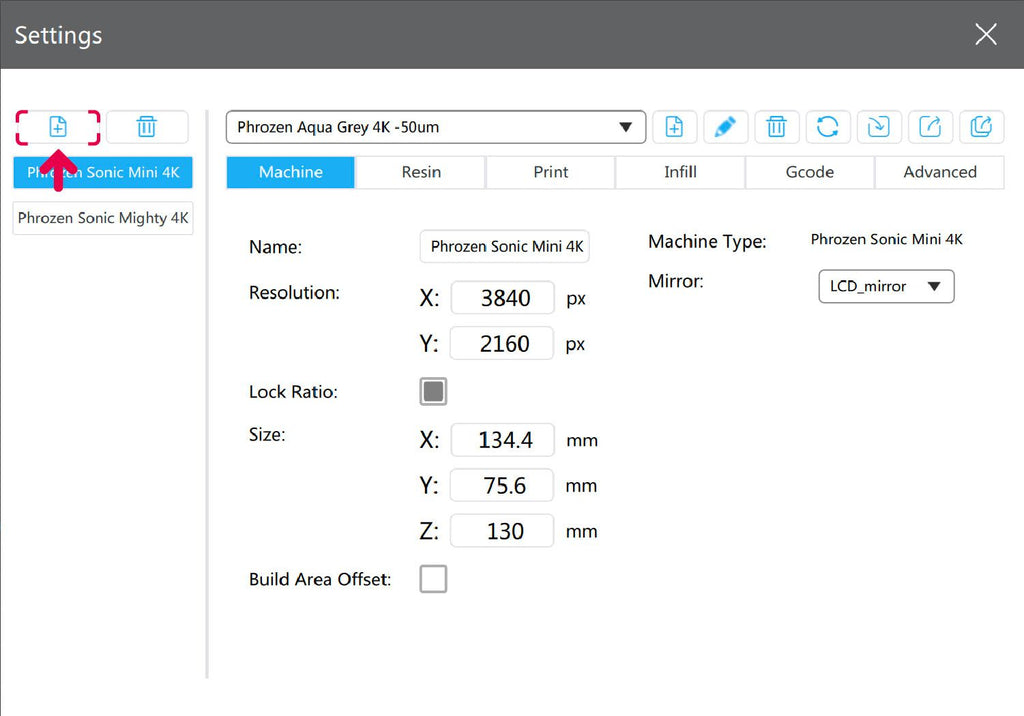

2. Click Settings, then click on Add new Printer

CHITUBOX Setting

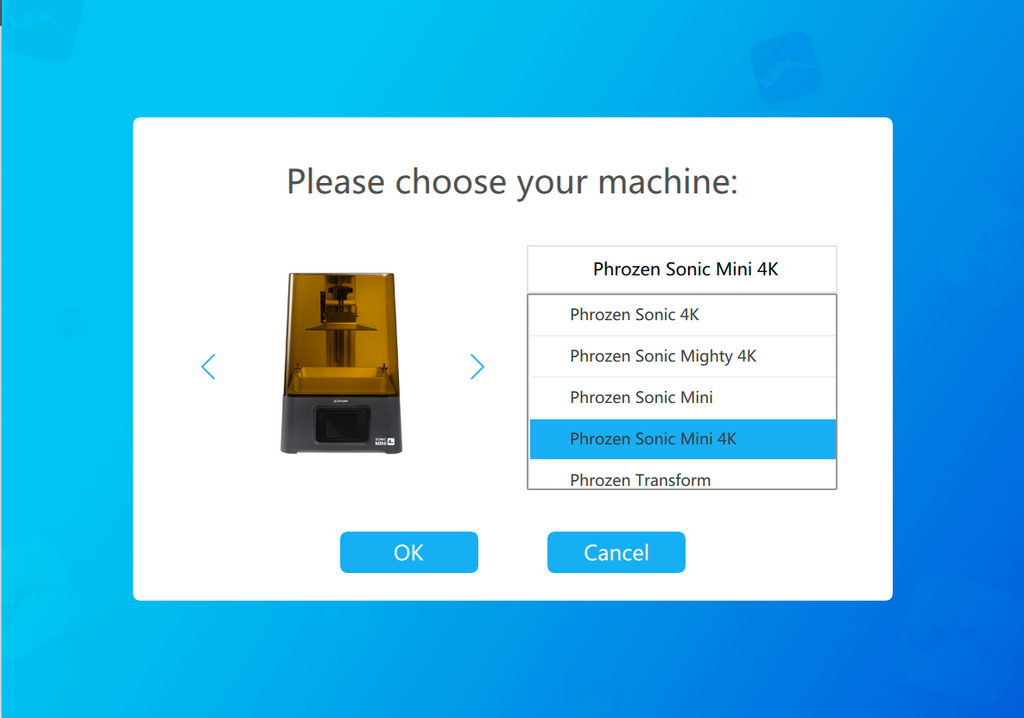

3. Then click on Phrozen and choose Sonic Mini 4K as your 3D printer. Click OK when it's done.

CHITUBOX Settings

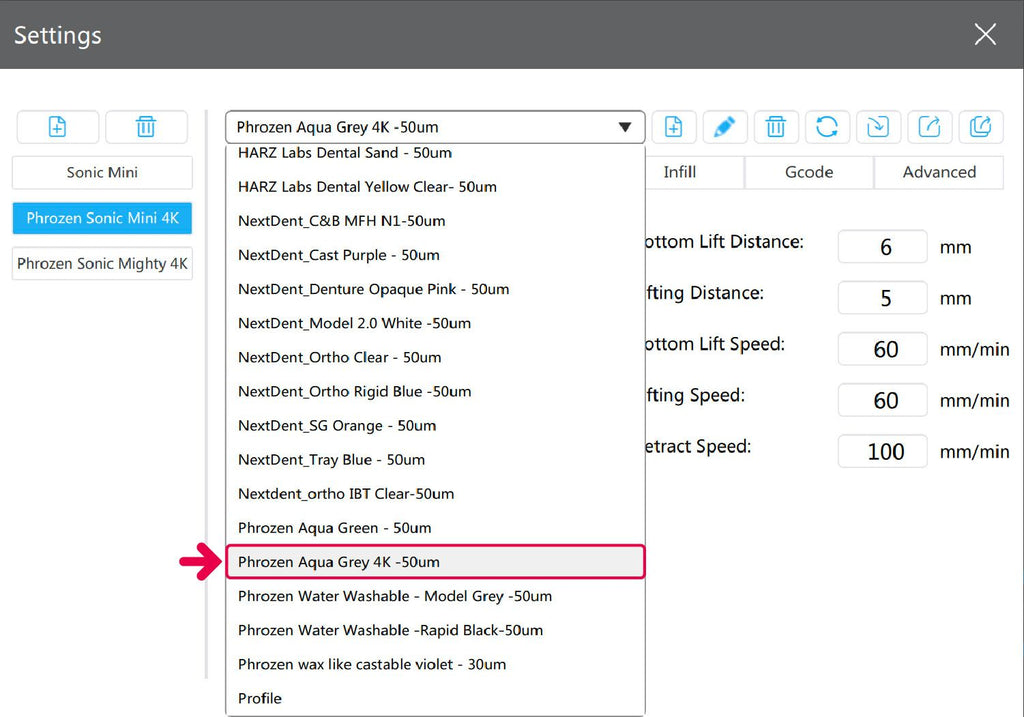

4. Then click on resin and choose Aqua-Gray 4K as your resin.

CHITUBOX Setting

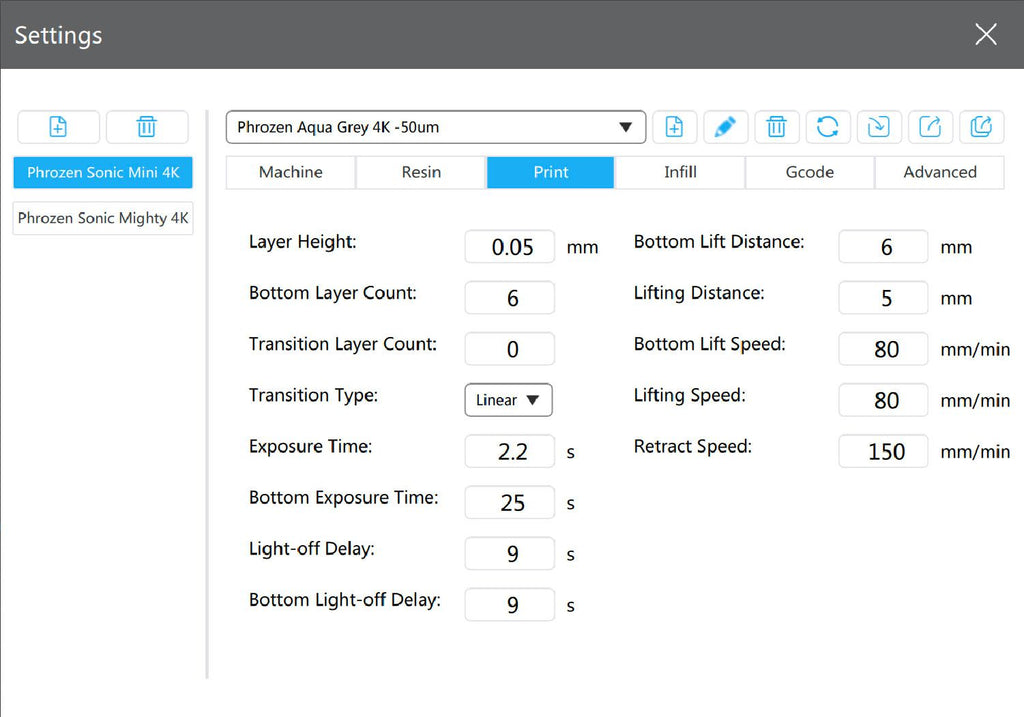

Then open the ring file and set the following print parameters for the Phrozen ring. As we’ll be using Phrozen Aqua-Gray 4K resin, we’ll follow the recommended print parameter settings listed on our resin profile spreadsheet.

You can always refer to our resin profile spreadsheet for a general idea on how to set up resin profiles for different Phrozen resins. Feel free to make adjustments and test to see what works best for you.



How to save and transfer over your file to the 3D printer

CHITUBOX Setting

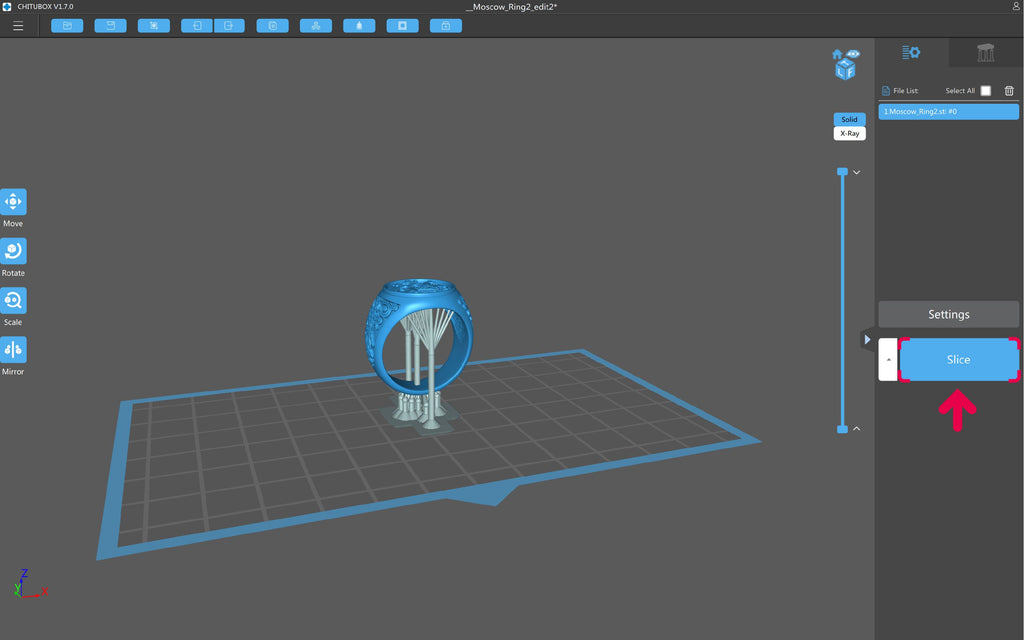

After setting up the print parameters, click Slice. Once that’s done, save your file as a .ctb file. Plug in your USB into Sonic Mini 4K and you’re good to go!

Please note that Sonic Mini 4K can only read files that are saved as a.ctb file. If you save it as a different file format, the printer won’t be able to read your file and you won’t be able to print out your 3D models.

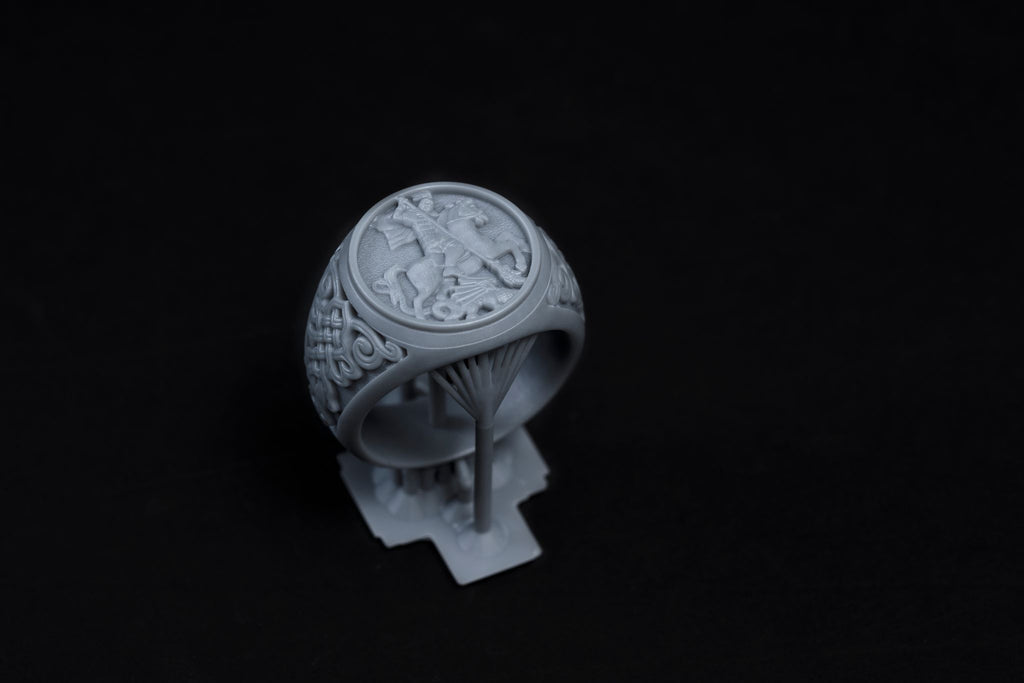

Ring printed with Aqua-Gray 4K Resin

Voila, you're now all set to begin printing! On the printer's LCD touch panel, click on 3D Print, click on your file then click GO. It should take roughly 2 hours to print out the ring.

Once you’re done printing, use a hard scraper to scrape off the print. Carefully remove the supports. You now have your very own 3D printed ring!

To learn how to post-process your 3D models after printing, click here
