Performing an LCD Test on the Sonic Mini 4K

Before printing, you may need to check the status of your Sonic Mini 4K's LCD screen. This is to ensure that both the UV lights and the 6.1” Mono-LCD screen are functioning properly. We will guide you through the steps of performing an LCD test and how you can read it:

*Caution! DO NOT look directly into the light. Improper exposure to UV light may cause painful eye and/or skin injuries.

Step 1: LCD TEST

On the touch panel, click TOOLS, then click LCD TEST:

Sonic Mini 4K Touch Panel
Sonic Mini 4K LCD Test

1. A white rectangle with black sides will appear on the touch panel.

Sonic Mini 4K Touch Panel White Rectangle

2. On the LCD screen, a 10.5 cm x 6 cm bright blue square will appear.

Run this test to make sure that the image shown on the LCD screen matches the one shown on the touch panel.

Sonic Mini 4K LCD Screen Bright Blue Square

Step 2: VAT CLEANING

Click TOOLS, then click VAT CLEANING.

Sonic Mini 4K Touch Panel TOOLS
Sonic Mini 4K VAT CLEANING

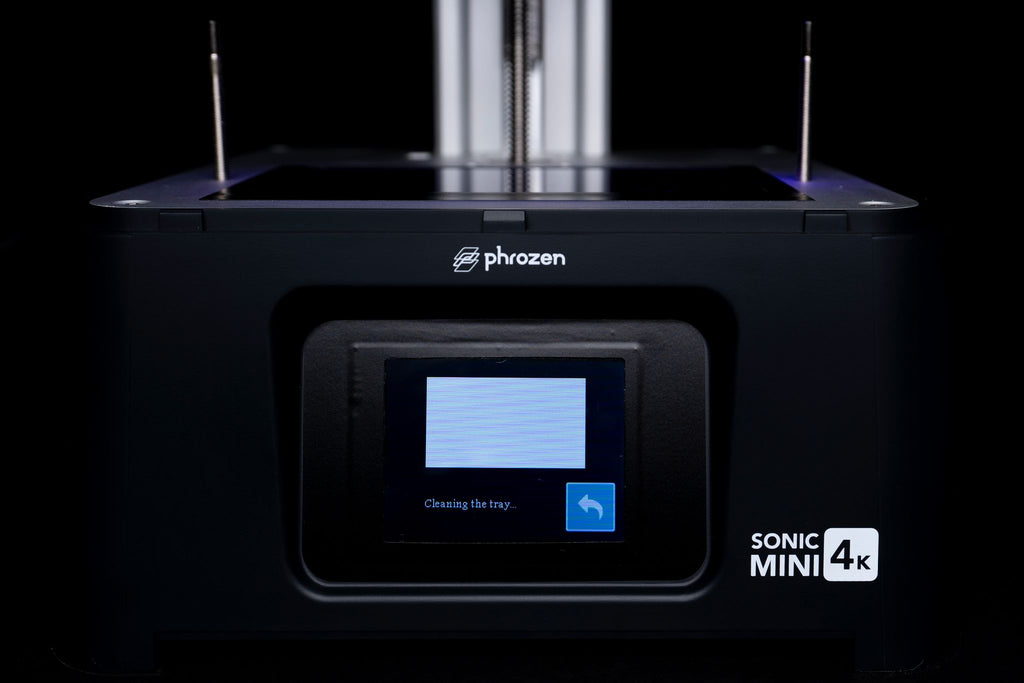

1. On the touch panel, a white rectangle will appear.

Sonic Mini 4K Touch Panel White Rectangle

2. On the LCD screen, a 13.5 cm x 7.5 cm bright blue square will appear. Run this test to make sure the UV lights are distributed evenly.

Sonic Mini 4K LCD Screen Bright Blue Square

Step 3:
After making sure everything is functioning correctly on your LCD 3D printer, you’re all set to proceed to the next step: Z-axis Calibration
